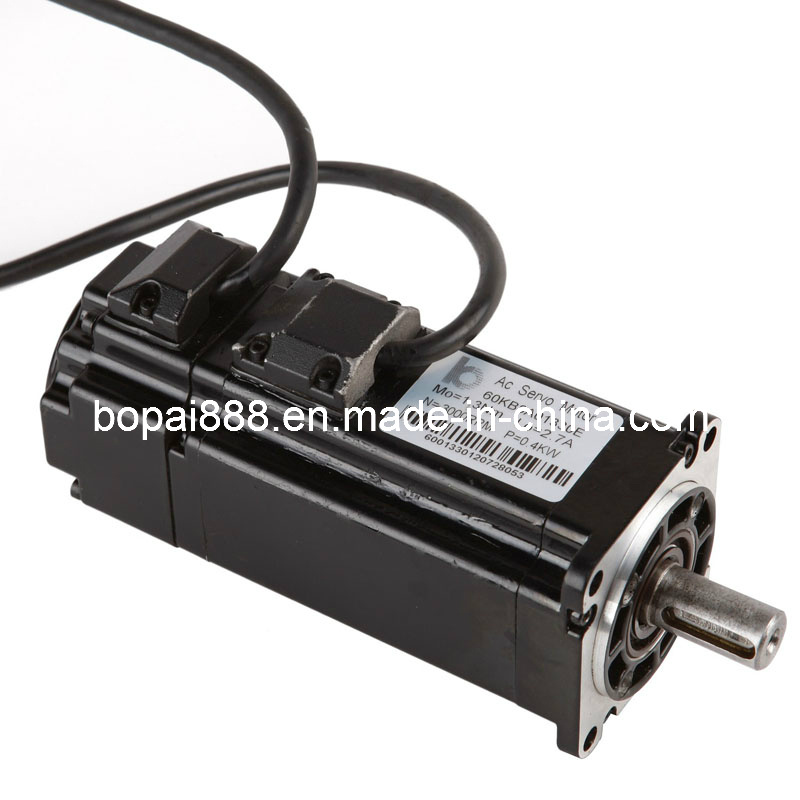

CE Approved 200W~400W AC Servo Motor (60MM)
Product Specifications
| Prod Model: |
60MM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Type: |
Servo Motor |
| Flange Size: |
60mm |
| Frequency: |
50Hz/60Hz |
| Protect Feature: |
Waterproof, IP65 |
| AC Voltage: |
220V/380V |
| Delivery Time: |
5-30 Days Based on The Quantity |
| Certification: |
ISO9001, CE, RoHS |
| Function: |
Control |
| Number Of Stator: |
Three-Phase |
Product Description
Specification:
Rated power: 200~400W, rated torque: 0.64~1.3Nm
Max torque: 1.92~3.9Nm, reted speed: 3000RPM
Advantage:
1. High speed and torque AC servo motor, 3 times oveload ablility
2. Low inertia, fast response
3. High stability servo motor
4. The speed range is wide, high locating precision servo motor
5. Have low requirment in maintenance, can quickly adapt to bad Environment
6. Heat and weight value lower, which is ensured by ND-Fe-B permanent magnet material. Small, nice appearance, easy to install
7. Environmental material, whcih achieved the cetification of CE&RoHS
8. All technical parameters can be adjust according to clinets' requirment.
Application industry
Our servo motor can meet wide needs in industrial fields, such as:
1. CNC machine tools
2. Textile machinery
3. Packing and printing machinery
4. Cutting, coiling and grinding machine
5. Injection molding machine.
|
TYPE |
60KB8A000630E |
60KB8A001330E |
|
Rated Power |
kw |
0.20 |
0.40 |
|
Rated Torque |
Nm |
0.64 |
1.30 |
|
Max Torque |
Nm |
1.92 |
3.90 |
|
Rated Speed |
RPM |
3000 |
3000 |
|
Max Speed |
RPM |
3600 |
3600 |
|
Rated Current |
A |
1.20 |
2.4 |
|
Rotor Inertia |
Kg. cm² |
0.493 |
0.502 |
|
Resistance |
Ω |
0.43 |
0.84 |
|
Inductance |
mh |
4.80 |
5.20 |
|
Voltage Constant |
V/kRPM |
66.71 |
28.30 |
|
Safety Class |
IP65 |
|
Insulation Class |
F |
|
The Opearating Of Environmental Conditions |
Temperature: : -20~+40º C, Humidity: Below 90% |
|
Input Voltage Of Servo Drive |
V |
AC220 |
AC220 |
|
Encoder line(TAMAGAWA) |
PPR |
2500 |
2500 |
Nanjing Kebo Magneto Electricity Co., Ltd. is a professional supplier which concentrates on the development, production, sales and service of motion control products. So far we have three branches, Nanjing Bopai Intelligent Technology Co., Ltd, Nanjing Shengtian Electrical Co., Ltd and Nanjing Shengtian Electrical Trading Co., Ltd. Our main products are servo motor, ferrite magnet and electrical wire. Since established, we devote ourself to the innovation and development of numerical control equipment and motion control system. Good quality, personalization and easy to control help us meet the needs clients at home and abroad.
Our company produce various motors with complete specifications, which is divided to 8 series(60, 80, 90, 110, 130, 142, 180, 260). We have independent intellectual property right on the type 142 permanent magnet AC servo motor, which is rated "high-tech product in Jiangsu Province". Our servo motors can be widely used in numerical control machine, automatic electrical equipment, packing, textile, printing industry and so on, with the feature of slow&smooth, high locating accuracy, strong overload capacity, suiting to harsh conditions. Meantime numerical AC servo drive that used with servo motor can be provided by us too, the drive applies the latest DSP used in motion control, IPM, and advanced control algorithm, which could realize precise digital control on torque, speed and postion. Meantime wehave developed the
communication function like RS232, RS485 and CANopen.
So far our main industrial robot product is manipulator, which applies the latest research results in multi-discipline, such as machinery and precision machinery, microelectronics and computer, automatic control and driver, sensor and information processing, and artificial intelligence, etc. The manipulator can be widely used in assembly of components and parts, transport, loading & unloading of manufacturing workpiece, especially more widely used in automated CNC machine tools and modular machine tools.
Electrical wire, which can be recognised as our conventional export product, has passed the certification of CCC. With the advantage of high quality and competitive price, the electrical wire sell well both at home and abroad.
We put a high value in introducing high technology, which is used in technology renovation, the development of new product and corresponding equipment. With reliable product quality, advanced technology and craft, user-friendly customer service, our company provide professional motion control solutions for clients at home and abroad.
