Categories
Price: | US $ 4600set |
---|---|
Trade Terms: | EXW,CIF |
Min Order: | 1set |
Pay Type: | T/T,Western Union |

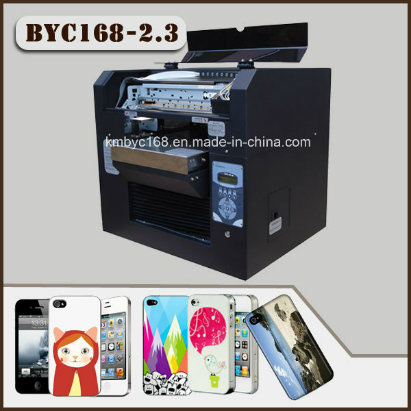

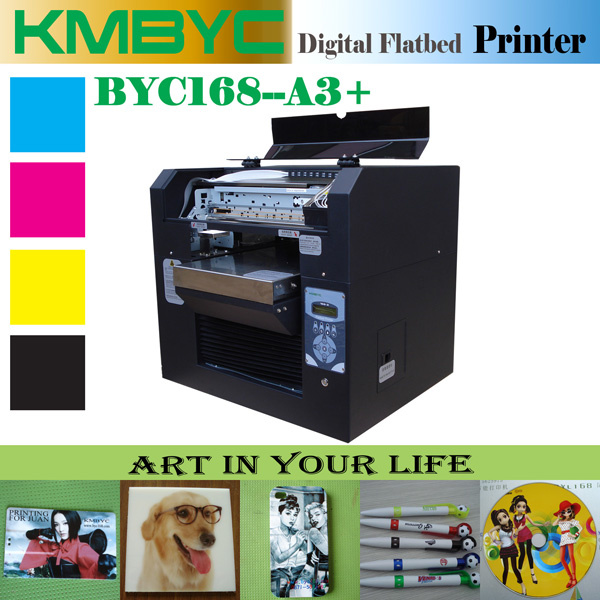

CE approved A3 UV Flatbed Cell Phone Case Printing Machine
Video demo: http://v.youku.com/v_show/id_XODEwNDM4Njcy.html?from=y1.7-2
Brief Introduction
This UV printing machine is economy normal speed model; for example to print A3 size photo, it costs approx 3.5 minutes.
1, flatbed UV printer is used for print any flat product except textile, such as acrylic, wood, galss, plastic, phone case, pen, card, golf ball, flat glasses lag etc...
2, flatbed UV printer is directly print; for most material, no need coating, no need any treatment before or after print; it is one of them most convinient printing technology;
3, UV print effect is the best, strongest and most stable; no only water proof, acratch proof, but also alcohol proof, sun proof...
4, UV printer can print textured / embossing effect, hand feeling and visual perception are very good;
5, our UV ink is very good quality and cheap, especially white ink is only $45/500ml; it is very cheap for print white effect or print on black products.
Specification of CE approved A3 UV Flatbed Cell Phone Case Printing Machine
Item name | BYC168-2.3 UV Cell Phone Case Printer |
Main engine | Epson Stylus photo 1390 |
Max print Size | 32.9*60cm |
Max print Thickness | 18cm (adjustable by infrared ray) |
Max Resolution | 5760*1440dpi |
Nozzle Configuration | 540 nozzles (90 * 6 colors) |
Minimum Ink Droplet Size | 1.5 Pico liters |
Ink Cartridge | CISS(continuous ink supply system) |
Ink Palette | C/M/Y/K/LC/LM |
Rated Voltage | AC 110/220V |
Power Consumption | approx 35W |
Printer Size | 87*67*63cm |
Printer Weight | 62kg |
Interface | Hi-Speed USB 2.0 |
Print Speed | 111 sec for A4 size 1440*720dpi photo |
Operating Systems | windows 2000/XP/7/8 |
Operating Temperature | 50° to 95° F (10° to 35° C) |
Operating Humidity | 20% to 80% |
Dimensions | approx 96*76*78cm packed in wooden case |
Gross Weight | approx 100kg |
Warranty | One year (except CISS, cleaning unit, print head or damage by human.) |
Necessary goods of UV printing are as bellows:
1, Color UV ink + White UV ink, can print on any color product;
2, Cleaning liquid: it is better to keep some Cleaning liquid in stock, you may need to clean the printer someday (for example if you will leave it not work for long time);
3, RIP software is necessary for print white color, and its inner ICC is very good for print all colors;
Print process is easy, directly print picture from computer with no transfer, no color lose:
1, light color product (no need white ink):
S1, put product on printer,
S2, choose the picture from computer and put it in RIP software,
S3, click print option, and it will be printed onto the product;
2, dark and black color product (need white ink):
S1, put product on printer,
S2, choose the picture from computer and put it in RIP software,
S3, click white print option;
S4, it prints white picture base onto the product;
S5, click the color photo print option;
S6, it prints color photo on white base;
Sample photo
The printer has some specialized advantages
UV LED printing machine adopt with the most advanced MicroPiezo inkjet technology, with big print space (up to 18cm thickness).
--many materials are easily to be printed;
It is easy to print full size full color photo on flat surface such as acrylic, glass, PVC, ABS, leather, wood, etc; and easy to print photo or logo on products such as pen, golf ball, button, CD, DVD, phone cover etc.
--One piece print is acceptable;
It is directly print design from computer onto surface of product; you can print one piece or many pieces at one time.
--Thick product acceptable;
It accepts product thickness to 18cm size; you can print many big and thick products.
--Automatically multicolor print;
It adjusts colors directly by the print program and image software; no need to care about colors, the print program will make it perfect automatically.
--Low print cost;
BYC168 printers are ink-saver; average cost of 1 square meter photo is only about $1.
--Good and stable print effect;
UV LED printer get permanent colorful and vibrant print effect; water proof, scratch proof.
--Easy to operate;
Most people can operate it with 2 hours training; you can start your print business very soon.
We have sufficient stocks, to ensure the fastest delivery speed.
We ensure the fastest and the safest shipping way by DHL, FEDEX, TNT, Plane, Boat etc.
Normally, we send goods out from our factory within approx 3 days after payment.
We provide:
1) High-quality machines with best price;
2) Best after-sale service; timely online support
3) Best consumables: including ink, coating, spare parts, trays etc.
4) Fast delivery by Express, Plane or Ship: within 3 days after get the payment,
5) One year warranty and life-time maintenance.
Feel free to contact Ms,Mila to know more detail
8618288235090
Prod Model: | BYC168-2.3 phone case printing machine |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Name: | A3 UV Flatbed Cell Phone Case Printing Machine |
Max Print Size: | 28*60*18cm |
Color: | Cmyk +2 White |
Printer Size: | 87*67*63cm (70kg) |
Print Technology: | UV Inkjet Printer |
Voltage: | 110V/220V |
Gross Power: | 75W |
Warranty: | One Year and Life Time Techology Support |
Refitted Model: | From R1390 |
Structure: | Flat-Bed Cylinder Press |
Color & Page: | Multi-Colour Printing Press |
Printing Interface: | USB2.0 |
Plate: | Flatbed Printing |
Usage: | for All Material Cell Phone Case Printing |
Printing Speed: | About 1 Minute for A4 Size Photo |
System Supported: | Windows 2000/XP/7/8 |
