Shanghai YingXin World Machinery Co., Ltd. >> CE Approved Front End Loader 5ton (W156)

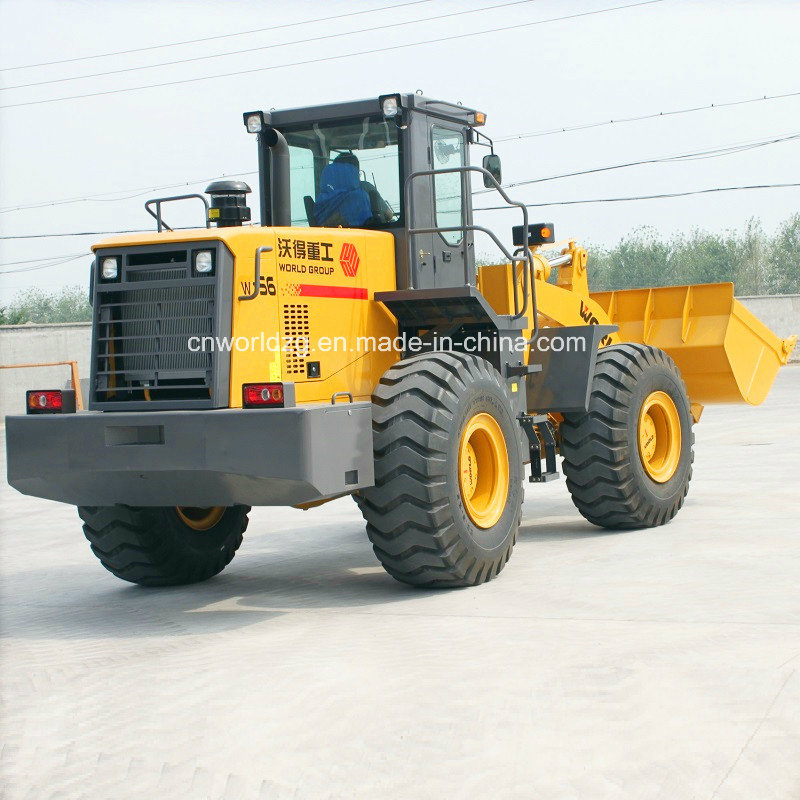

CE Approved Front End Loader 5ton (W156)

Name: CE Approved Front End Loader 5ton (W156)
Brand: china-manufacturer-directory.com
SKU: 737092285
Availability: InStock
Rating: 4.6 (33 reviews)

Supplier:	Shanghai YingXin World Machinery Co., Ltd.
Price:	US $ 45000-55000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	W156
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Type:	Front Loader, Wheel Loader
Application:	Material Loading, Earth Moving
Bucket Size:	3cum
Rated Load:	5000kg
Operation Weight:	16500kg
Engine:	Cummins
Gearbox:	Zl50
Service Brake:	Brake Shoe with Disc
Cabin:	with A/C
Tyre Size:	23.5-25
Type:	Medium-sized Loader
Walking Mode:	Wheeled
Load And Unload Method:	Front Discharge
Certification:	ISO9001: 2000
Condition:	New

Product Description

Ce approved front end loader

5 ton wheel loader W156, 5000kg rated load, 3 or 3.6 or 4 cbm bucket capacity, Weichai Steyr or Shangchai CAT or Dongfeng Cummins engine, Hangzhou Advance brand planet type transmission, power shift, 2 forward and 1 reverse shifts. Caliper disc brake, air over oil active 4 wheel brake, full-hydraulic coaxial flowrate amplification steering system, middle articulated frame. Long wheel base and big breakout force for heavy duty. Self-made transaxle, cabin, frame, arm and bucket. With air conditioner. Joystick, log grapple, forks, quick fitting, rock bucket and 4 in 1 bucket are optional.

Specifications:

Items	Model: W156
Bucket Capacity (m 3 )	3.0 or 3.6 or 4.0
Rated Load (kg)	5000
Max. Breakout Force (kN)	150±5
Max. Traction (kN)	165±5
Forward Speed 1 st (km/h)	0-11.5
Forward Speed 2 nd (km/h)	0-37.5
Reverse Speed (km/h)	0-17
Max. Dumping Height (mm)	2970±50
Max. Dumping Reach (mm)	1200±50
Min. Turning Radius (mm)	6700±50
Min. Clearance Over Ground (mm)	380±20
Wheel Base (mm)	3427±30
Tread Width (mm)	2300±10
Total Hydraulic Cycle Time (s)	11.1
Full Bucket Lifting Time (s)	5.7
Overall Dimensions (mm)	L:8075xW:2960xH:3500
Operating Weight (kg)	16200±200
Diesel Engine
Brand	Weichai Steyr or Cat6121 or Cummins
Type	Direct injection, turbocharged, water cooling, 4 strokes, 6 cylinders
Rated Output (kw)	162/162/160
Rated Speed (rpm)	2200
Max. Torque (N.m)	855/860/908
Transmission
Type	Planet type
Rated Input Speed (rpm)	2200
Transaxle & Tire
Rear Axle Oscillation	Center oscillation
Oscillating Angle Of Rear Axle (°)	13
Pressure Of Tire (MPa)	0.28-0.32
Working Hydraulic System
Working Pump Type	Gear pump
Working Pressure (MPa)	17
Lifting Cylinder Bore x Stroke (mm)	165x757
Tilting Cylinder Bore x Stroke (mm)	200x540
Steering System
Steering Pump Type	CBGJ2080
Working Pressure (MPa)	12
Steering Cylinder Bore x Stroke (mm)	100x342
Max. Steering Angle (°)	35

World Group was established in 1988. The main products include wheel loaders, hydraulic excavators, power presses, wheel tractors, combine harvesters, lawn mowers and crankshafts for diesel engines.

We can supply 3 ton and 5 ton wheel loaders, 1.8 ton, 6 ton, 8.5 ton, 15 ton, 24 ton, 33 ton, 36 ton and 42 ton excavators, from 25 ton to 500 ton C-frame and H frame power presses, 40-120HP tractors, 18" to 60" lawn mowers, wheel and crawler combine harvesters for wheat and rice, etc.

Great manufacturing ability and matured technology are the major advantages of World Group. High reliability and durability are the ever lasting endeavor of World Group.

Shanghai Yingxin World Machinery Co., Ltd is a subsidiary company of World Group, which is appointed to be fully in charge of the overseas business of World brand products.

Now we are looking for dealers and distributors to promote our products in worldwide markets. If you are interested, please visit for more information about us.
