Product Specifications
| Prod Model: |
S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Gear Arrangement: |
Helical Worm Gearbox |
| Rated Power: |
0.18kw~22kw |
| Rated Torque: |
90 to 4000n.M |
| Installation Form: |
Flange Mounted or Foot Mounted or Torque Arm Mount |
| Housing: |
Aluminum and Casting Iron |
| Toothed Portion Shape: |
Bevel Wheel |
| Type: |
Worm and Wormwheel |
| Manufacturing Method: |
Forging Gear |
Product Description
1. Product Characteristics

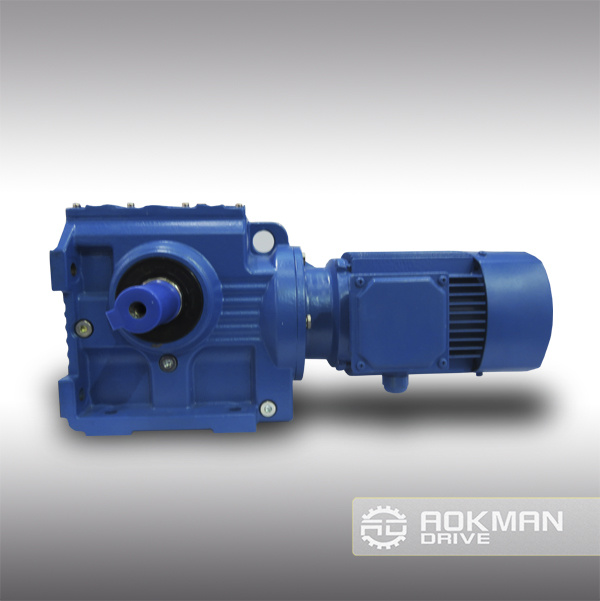

S series helical worm gearbox adopts the helical worm gears to make its structure more reasonable. S series not only has higher transmission efficency and loading capability than those single-stage worm wheel transmission, but also smaller volume and appearance. Moreover, S series worm gearbox has higher transmission ratio, and can be combined with various gearboxes and speed variators to meet the different requirements.
2. Technical Data
Rated Power
| 0.18~22KW |
Output Speed
| 0.16~147r/min |
Output Torque
| 90~4000N.m |
Mounted Form
| Foot-mounted, flange mounted, shaft-mounted, torque arm mounted |
3. Structure
S series gearbox are available in the following designs:
(1) SY Foot mounted helical worm gearbox with solid shaft
(2) SAY Helical worm gearbox with hollow shaft
(3) SAZY Small flange mounted helical worm gearbox with hollow shaft
(4) SA (S,SF,SAF,SAZ)Y Assemble users' motor or special motor, flange is required
(5) SFY Flange mounted helical worm gearbox with solid shaft
(6) SAFY Flange mounted helical worm gearbox with hollow shaft
(7) SATY Torque arm mounted helical worm gearbox with hollow shaft
(8) S (SF,SA,SAF,SAZ) S Shaft input helical worm gearbox
(9) SA (S,SF,SAF,SAZ)RY Combined helical worm gearbox
(10) SA (S,SF,SAF,SAZ)SR Shaft input combined helical worm gearbox
4. Detailed parameters
Size
| 38 | 48 | 58 | 68 | 78 | 88 | 98 |
Structure
| S SA SF SAF SAT SAZ |
| Input Power(KW) | 0.18-0.75 | 0.18-1.5 | 0.18-3 | 0.25-5.5 | 0.55-7.5 | 0.75-15 | 1.5-22 |
| Ratio | 10.27-152 | 11.46-244.74 | 10.78-196.21 | 11.55-227.20 | 9.96-241.09 | 11.83-222 | 12.75-230.48 |
| Maximum torque(N.m) | 90 | 170 | 295 | 520 | 1270 | 2280 | 4000 |
If you have specific parameters and requirement for our gearbox, customization is available.
A high product quality, a wide production and a flexible structure are the strong points of Aokman® . Aokman® Is professional gearboxes manufacturer in China which was founded in 1982, specialized in research, development and manufacturing Shaft Mounted Gearbox, Standard Gearbox, Worm Gearbox, Planetary Gearbox, Industrial Gearbox, Cycloidal Gearbox, Customized Gearbox, and Gear Motors.
We can offer the proper solution for uncountable applications. Our products are widely used in the ranges of metallurgical, steel, mining, pulp and paper, sugar and alcohol market and various other types of machines. With a strong presence in the international market, we export mainly to South America, Middle East, North America and Asia. Our pillars are firmly planted in the relentless pursuit of excellence, innovation and competitiveness. The technology base stands out in our operation, featuring the latest equipment and the most modern information technology.
We are committed to win a partner rather than a simple supplier. Aokman® Has become a reliable supplier, able to supply high quality gearboxes. In fact, the entire production is developed inside our Company, thus it is submitted to an appropriate process control.
The products quality of Aokman® Allied to the security and efficiency of its management which makes its brand synonymous with credibility and transparency with its suppliers and customers. Make a good deal, always consult Aokman® Professionals! With 33 years experience, we assure you the utmost reliability and security for both product and services.
