Product Specifications
| Prod Model: |
GM/EP-H Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Crusher Type: |
Lab Size Small Jaw Crusher |
| Crushing Object: |
Ore, Mineral, Stone, Roc, Coal, Limestone |
| Feeding Size: |
200mm |
| Discharge Size: |
0.2-20 |
| Handling Capcity: |
About 200-1000kg/H |
| Jaw Crusher Protection Way: |
Safe Interlock Device |
| Certificate: |
CE Approved Jaw Crusher |
| Packaging Way: |
Plywood Case |
| Package Volume: |
About 0.8 Cbm |
| Lead Time: |
15-30days |
| Drive: |
Electric |
| Application: |
Coal, Ore, Rock |
| Crushing Style: |
Grinding & Impact |
| Crushing Degree: |
Fine Grinding Machine |
| Type: |
Jaw Crusher |
Product Description
CE Approved Superior Small Jaw Crusher Apply To Lab Ore And Mineral Sample Crushing
·Jaw crusher outstanding features:
*High strength steel jaw plate,can crush hard ore, rock, stone;
*Equipped with emergency stop interlock device;
*Eco-friendly design, reduce dust polluting working place;
*Sample drawer is easy to collect crushed sample;
·Jaw crusher application:
This small jaw crusher with high quality jaw plated can be used for crushing high hardness ores, mineral, rock solid material quickly.
Especially suitable for sample preparation work in the laboratory of industrials of nonferrous metal, metallurgy, chemic, environment-friendly department, scientific research and so on.
·Jaw crusher brief introduction:
Jaw Crusher is a kind of ore crusher, and jaw crusher is also called rock crusher. This series of Jaw crushers have many advantages which mainly used in breaking a variety of ore and the medium-size chunk of materials.
·Jaw crusher advantage:
1. Adopting special technology and material,can crush high strength alloy material.
2. Good abrasive resistance jaw plates will not pollute the sample.
3. Even discharging size, smooth running, easy adjustment and long service life.
4. The machine frame is made of the cast steel after heating treatment.
5. Removable shell is convenient for daily maintenance and inspection.
6. Mechanical-electrical integrated controlling and it is easy to operate.
7. Full-sealed design and equipped with dust extracting out, improve working environment.
8. Good appearance with total electro-static coating surfaceand easy to clean.
9. Can work normally on the flat ground without fixing any base.
·Jaw crusher working principle:
After starting jaw crusher, triangle belt and motor belt wheel will drive the belt wheel and eccentric shaft to rotate, the movable jaw and movable jaw plate will do periodic movement, when the material passes through the no-rebound hopper and enters into crushing chamber, then the movable jaw plate and fixed jaw plate crush the material by friction.

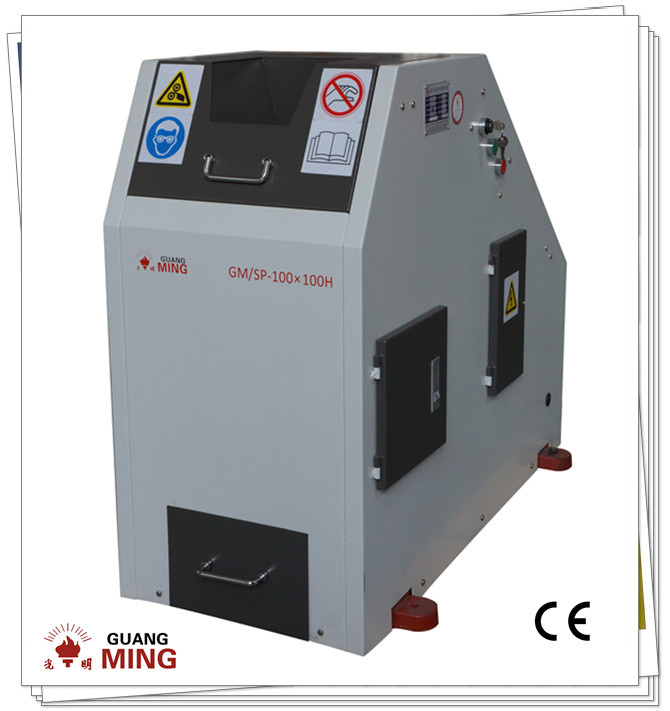

·Jaw crusher photo:
·Jaw crusher packaging and shipping way:
Packaging way: Guangming laboratory small jaw crusher standard packaging way is to pack every jaw crusher in a customized plywood case, it can protect the jaw crusher greatly during transportation process;
Shipping way: we have long-term cooperated shipping agent, sea shipping, air shipping and DHL shipping way are ok as customer's requirement.
·Our service:
1.Engineer is available to service machinery oversea;
2.Customized laboratory equipment is available;
3.Flexible lead time and shipping way;
4.Quality and service is in the first place;
5.Superior scheme to solve your laboratory sample preparation problem;
·FAQ:
1. What's the laboratory small jaw crusher warranty time:
=>One year
2. How long is the lead time?
=>It is flexible, normally 15-30days, 1-2days is also available when we have stock;
3. What's the laboratory small jaw crusher power supply?
=> Our standard is 380V, 50Hz. We also customize motor to according to customer's local power supply.
·Company infomation:
The superior small jaw crusher for lab supplier-Guangming specilizes in laboratory sample preparation equipment since 1984, laboratory jaw crusher, grinder, sieve shaker, divider, calorimeter, sulphur tester are the featured products.
Guangming covers about 40000 square meters, including 18000square meter production workshop, 3800 square meter technical center, and 2300square meter staff living speace and so on.
And Guangming factory also successfully passed SGS testing, become one of SGS laboratory equipment supplier.
Warmly welcome to contact us for any inquiry and visit our company.
|
CE Approved Superior Small Jaw Crusher Apply to Lab Ore and Mineral Sample Crushing |
|
Model No. |
GM/EP-100× 60H |
GM/SP-100× 60H |
GM/SP-100× 100H |
GM/EP-150× 125H |
GM/EP-250× 150H |
|
Feeding entrance size(mm) |
100× 60 |
100× 60 |
100× 100 |
150× 125 |
250× 150 |
|
Feeding size(mm) |
≤ 45 |
≤ 48 |
≤ 80 |
≤ 100 |
≤ 200 |
|
Discharging size (mm) |
3-10 |
0.2-15 |
0.2-20 |
6-38 |
10-40 |
|
Handling capacity(kg/h) |
500 |
12-720 |
20-1030 |
50-1200 |
1000-3000 |
|
Working power supply (V) |
380 |
380 |
380 |
380 |
380 |
|
Dimension (mm) |
1000× 550× 740 |
981× 530× 750 |
981× 530× 830 |
1150× 710× 985 |
1670× 800× 1050 |
|
Motor power(kw) |
2.2 |
2.2 |
3 |
5.5 |
11 |
|
Total weight (kg) |
186 |
330 |
400 |
585 |
950 |
