Gainer International (China) Limited >> CE Bewiesen 10 15dBm Signal GSM DIP Repeater

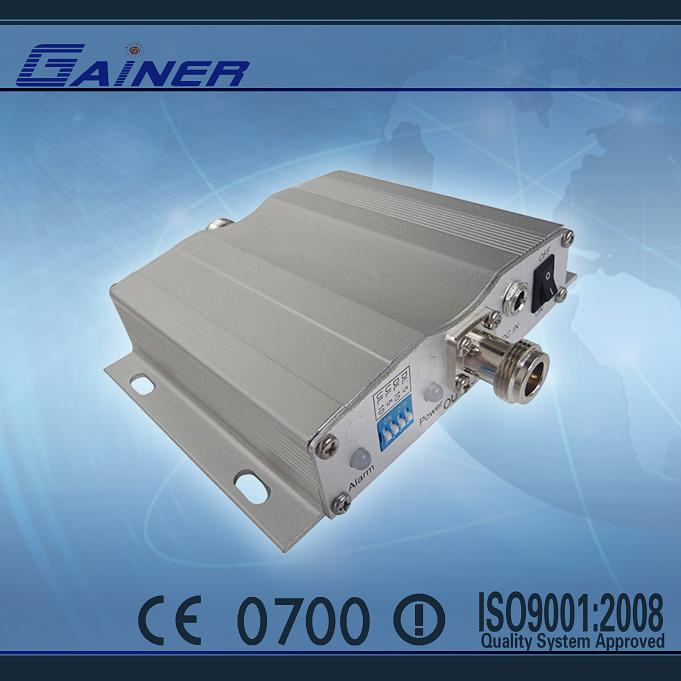

CE Bewiesen 10 15dBm Signal GSM DIP Repeater

Name: CE Bewiesen 10 15dBm Signal GSM DIP Repeater
Brand: China-Manufacturer-Directory.com
SKU: 769038145
Availability: InStock
Rating: 4.4 (123 reviews)

Supplier:	Gainer International (China) Limited
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Installation Type:	Indoor, Small Size
Technic Advantage:	Alc&Agc
Certificate:	CE RoHS ISO
Type:	Wireless Repeater

Product Description

Features:

Features:

1. Elegant and Compact design

2. Built-in AGC and ALC circuits, which can automatically control the gain of the repeater depending upon the strength of input signals.

3. 15dB MGC(Manual gain control) 5dB one step available for both uplink and downlink to adjust the gain value for proper coverage during installation or maintenance.

4. Auto shut off function available for both uplink and downlink to avoid deep self-oscillations from jamming the towers, saving your trouble from operators.

5. Low power consumption - 6W only.

Model Number		GCPR-G10
Electrical specification		Uplink	Downlink
Frequency Range	GSM	890 ~ 915 MHz	935 ~ 960 MHz
Max .Gain		≥ 60dB	≥ 60dB
Max .Output Power		≥ 10dBm	≥ 10dBm
Band width (-3dB)		Wide Band
MGC ( Step Attenuation )		≥ 15dB / 5dB step
Automatic Level Control		≥ 15dB,auto shut off 31dB after 15dB
Gain Flatness		≤6dB(P-P)
Noise Figure		≤6dB
VSWR		≤1.8
Group Delay		≤5μs
Frequency stability		≤0.01ppm
Spurious Emission & Output inter-modulation		GSM Meet ETSI TS 151 026 V6.1.0
		WCDMA Meet 3GPP TS 25.143 ( V 6.2.0 )
		CDMA Meet IS95 & CDMA2000
LED Alarm		Standard
Power LED		Green light when power on.
ALC LED		Orange @ ALC 1~5dB, Red @ ALC 15dB~20dB, LED off after 5 second red color
Mechanical Specifications		Standard
I /O Port		N-Female
Impedance		50 ohm
Operating Temperature		-25ºC~+55ºC
Environment Conditions		IP40
Dimensions		176x100x44mm
Weight		≤ 2Kg
Power Supply		Input AC90~264V,output DC5V / 2A

Gainer International (China) Limited is a professional enterprise which specialized in wireless communication products, customer electronics products. We are highly developing enterprise, with CE certificate and GB/T19001-2008 /ISO 9001: 2008. We spare no effort to provide good products and service for customers all over the world.

We mainly produce signal repeater, booster of GSM, CDMA, DCS, WCDMA, IDEN, LTE CDMA450M, also other correlative products. We manufacture products by our own R&D team which was formed by experienced exports in related fields. Our design and manufacture can follow customers' special requirements.

We dedicate to provide the most satisfactory services for our customer. We aim to provide more competitive products and meet the needs of high-speed developing market.

Our products have been sold to the worldwide markets like USA, Italy, the Netherlands, New Zealand, France, Switzerland, Ireland, Russian, Spain, Poland, UK, South Africa, Brazil, Mexico, Saudi Arabia, Jordan, Indonesia, Malaysia, India, UAE, Iceland, Australia, Czech Republic, Kyrgystan, and more.

We ensure to offer the best quality and the lowest price to help you to develop your market, Hope to built up long term business relation with you.

Cooperate with Gainer International, you will be the gainer of the world, we are waiting for you!
