CE Certificate 63A 4p MCB Miniature Circuit Breaker

Name: CE Certificate 63A 4p MCB Miniature Circuit Breaker
Brand: china-manufacturer-directory.com
SKU: 726097925
Availability: InStock
Rating: 4.5 (109 reviews)

Supplier:	Yueqing Feeo Electric Co., Ltd.
Price:	US $ 0.56-2/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	FE-63
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Mini
Arc-extinguishing Medium:	Air
Structure:	MCB
Breaking Capacity:	Low Voltage Circuit Breakers
Poles Number:	4
Certification:	CCC
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Installation:	DIN Rail

Product Description

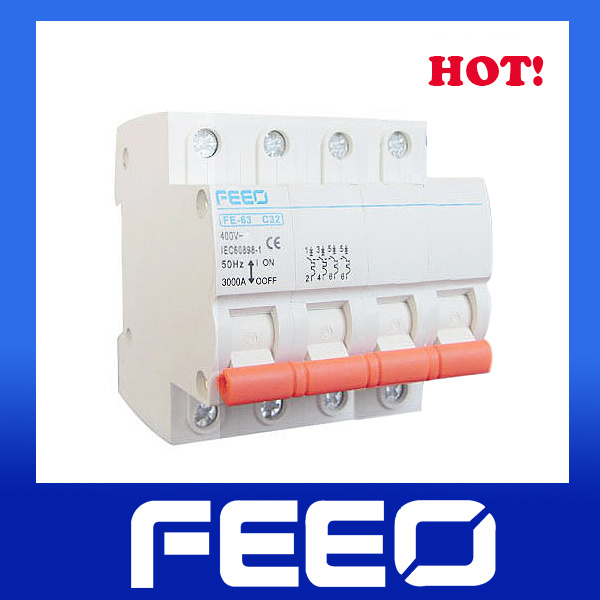

FEEO Mini Circuit Breaker
ISO9001: 2008
6-63A with 1, 2, 3, 4Poles
3, 4.5KA Breaking Capacity
OEM, CKD are welcome

CONSTRUCTION AND FEATURE

1)DZ47-63 series MCB is used in lighting distribution system or motor distribution system for protecting overload and short circuit in the systems.
2)This product is novel in structure, light in weight, reliable and excellent in performance.
3)It has high breaking capacity and can trip quickly. Its case and body are made of highly fire-retardant and shockproof plastic.
4)This product, with long life, is mainly used in AC 50Hz / 60Hz single-pole 240V or two / three / four-pole 415V circuit for overload and short circuit protection, as well as infrequent on-and-off switching electric equipment and lighting circuit in normal cases. This product conforms to GB10963 and IEC60898 standards.

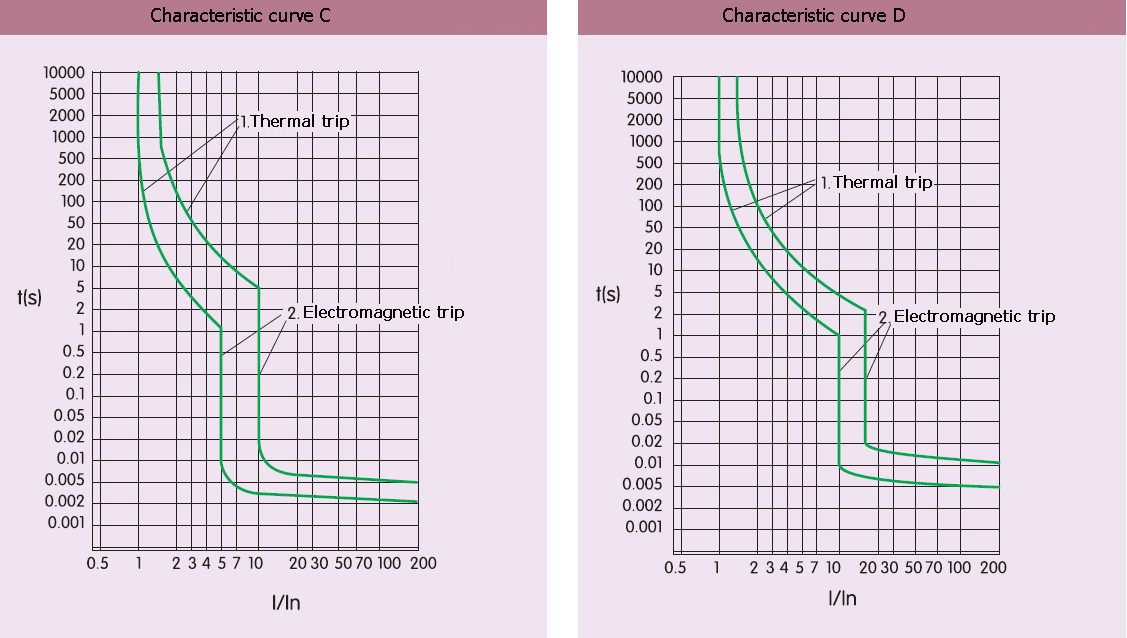

1.Characteristic Curve:

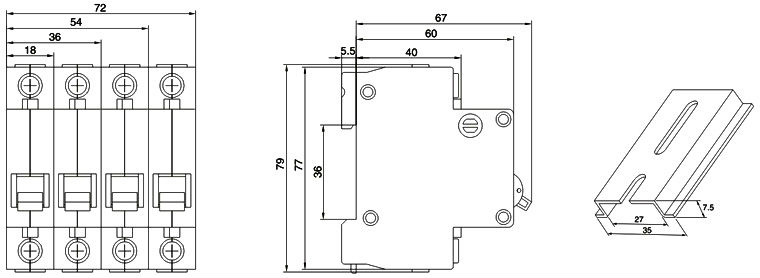

2.Installation Dimensions:

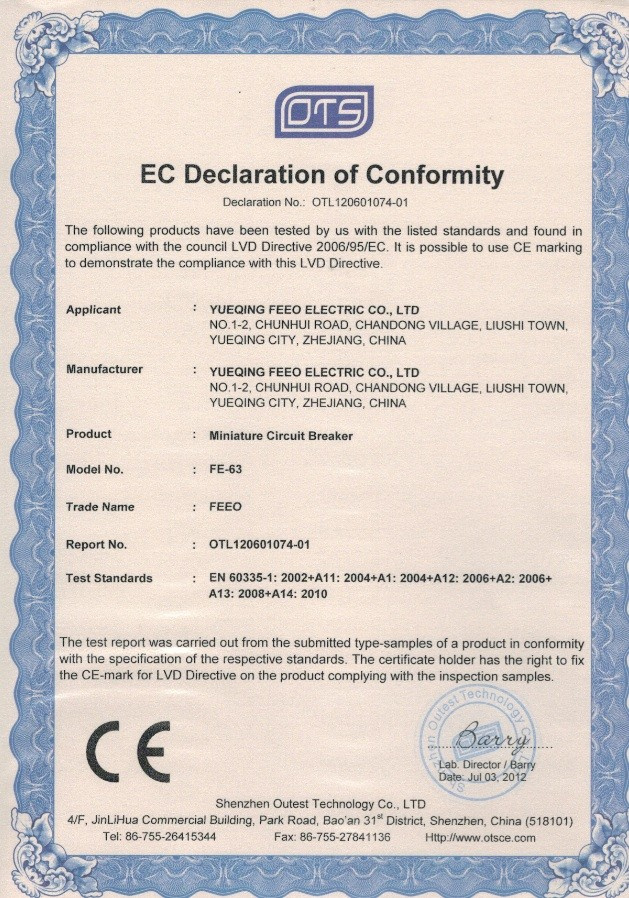

3.Certification:

4.Specification

Electrical features	Rated current In	A	1, 2, 3,4,6, 10, 16, 20, 25, 32, 40, 50, 63
	Poles	P	1.2.3.4
	Rated voltage Ue	V	240/415
	Insulation voltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated breaking capacity	A	1-32A/6000A,40-63A/4500A,
	Rated impulse withstand voltage (1.2/50) Uimp	V	4000
	Dielectric test voltage at ind. Freq. for 1 min	Kv	2
	Pollution degree		2
	Thermo-magnetic release characteristic		B, C, D
Mechanical features	Electrical life	t	4000
	Mechanical life	t	10000
	Protection degree		IP20
	Reference temperature for setting of thermal element	°C	30
	Ambient temperature (with daily average≤35°C)	°C	-5~+40 (special application please refer to temperature compensation correction)
	Storage temperature	°C	-25~+70
