Specifications

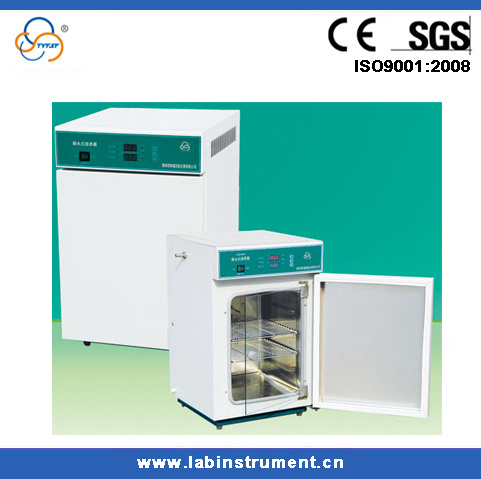

CO2 incubator is the key equipment for immunology, oncology genetics and bio engineering.
Uses:
The device is the key equipment for immunology, oncology genetics and bio engineering. It is widely applicable for research and production of microorganisms, agricultural science and pharmacology.
Characteristics:
1. Compact structure to save place and can be stack up (Max. 3 pcs for GH3000).
2. PID controller displays temperature, co2 concentration and runtime and timing time values at one time.
3. Imported Infrared carbon dioxide sensor with the high precision can make sure the quickly Co2 concentration recovers time automatic. The Co2 concentration is not influenced by the temperature and humidity, even used by several users, open and closes the door several times, also can make sure the Co2 concentration recover.
4. UV Lamp which located the back of box can sterilize circulatory air and the cell in humid tray.
5. The door open side is optional, the user can choose open the door from left or right. Door temperature controller prevents dewfall on inner glass door of incubator effectively.
6. Imported DFU filter at inlet provides more than 99.97% filtration of bacteria and dust (0.3um) and supplies pure co2 into the incubator.
7. When get the sampling from the sample connection, no need open the door, and can control the inside air environment at the same time.
8. HEPA high quality filter make sure the inside air quality up to Class 100 after working 10 minutes.
9. The auto controller fan speed to prevent damage to the samples, makes sure the fan stops when open, to avoid the outside air and inside air mix and the volatilization of sample.
10. Six sides Hot air sterilizing circulation system with the air-jacketed heating method, make sure heating fast, no temperature overshoot.
11. SUS304 Stainless Steel with the semicircular arcs at corners for easy cleaning. The SUS Stainless Steel Plate with holes and the space between the shelves in the chamber is adjustable.
12. Independent audible and visible temperature-limiting alarm system, alarm function for temperature difference, co2 over concentration difference, door open long time, low water level alarm system, UV working status ensures experiments run safely and no accident would happen.
13. The bottom humidifier plate with the heating function, make sure the high humidify environment.
14. Adjustable leg on the bottom makes sure the equipment working on the flat ground.
Optional Accessories:
--- RS485 connector: Easy to download software and save all the data via RS-485 into computer: RMB800
--- Humidifier display: RMB2000
--- Printer to print out the data: RMB1200
--- Professional Co2 Reducing valve: RMB800
Model |
GH3000 |
GH6000 |
Voltage(V) |
220V50Hz |
Volume (L) |
50L |
150L |
Power (W) |
160 |
330 |
Current ( A ) |
0.8 |
1.5 |
Temperature Range |
RT+5 ~ 60 °C |
Tem. Resolution Ratio( °C ) |
±0.1 °C |
Temperature uniformity |
≤0.35 °C |
Inner Chamber Humidity |
>90%RH |
CO2 Concentration Range |
0 ~ 20% |
CO2 Concentration Resolution |
0.1% |
CO2 Working Condition |
Environment Temp:0 ~ 50 °C Humidity:<80% RH |
Heating System |
DHA System (Six sides Hot air sterilizing
circulation system and Air Jacketed heating) |
Humidity System |
Natural evaporation type humidifier |
Water Level Sensor |
Import high precision level sensor |
allowed inject co2 presser |
0.03MPaG (0.3Kgf/cm2G, 4.3psiG) |
CO2 Connector |
Connect the air tube (Inner Diameter 4 ~ 6mm) |
Shelves |
3pcs SUS304 |
3pcs SUS304 |
Inner Chamber Size(WxDXH)(mm) |
350×380×380 |
500×500×660 |
Overall dimension of device(mm) |
465×480×580 |
615×700×800 |
N.W.(Kg) |
46 |
76 |
G.W.(Kg) |
50 |
82 |
