Supplier: | Shenzhen ShiHan Technology Co., Ltd. |
---|---|
Price: | US $ 900/Square Meter |
Min Order: | 1/Square Meter |
Quantity:: | |
Trade Terms: | FOB,EXW |
![]() |
Prod Model: | SH-P10 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brightness: | >6000nit |
Viewing Angle: | 120° |
Cabinet Dimension: | 960X960X120mm |
Cabinet Resolution: | 96X96DOT |
Cabinet Weight: | 36kg |
Cabinet Material: | Iron |
Tube Chip Color: | Full Color |
IP Rating: | IP65 |
Pixel Pitch: | 10mm |
Pixel Configuration: | 1R, 1G, 1B |
Display Function: | Video Display |
Pixel Density: | 10000 dot / m² |
Scanning Mode: | 1/4 Scan |
Display Type: | LED Video Display |

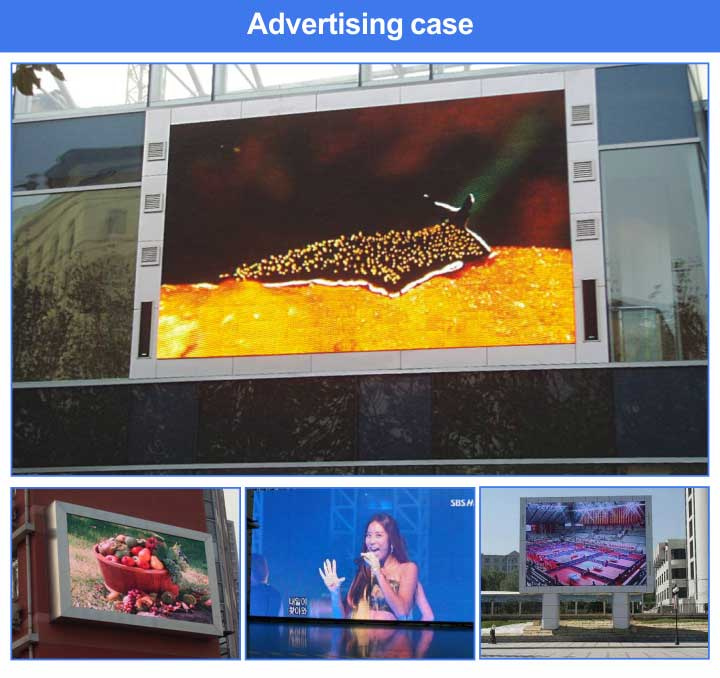

Application: | Advertising |

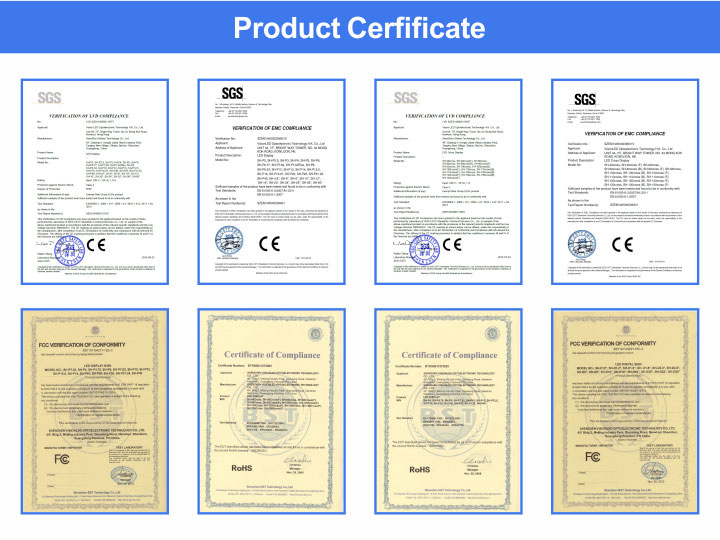

Certification: | FCC |
Average Power Consumption: | 310W / M² |
Pixel pitch | 10mm | Refresh frequency | ≥200Hz |
Pixels | SMD 3in1(3535) | Gray level | 1024~16384 |
Pixel density | 10000pixels/sq.m | Gray scale/color | >16.7M |
Cabinet resolution | 96×96dots | Frame frequency | >60Hz |
Cabinet dimensions | 960mm×960mm×120mm | Viewing angle | 120° |
Cabinet material | Iron | Power(maximum) | 880W/sq.m |
Cabinet weight | 36kg | Ingress protection | IP65 |
Module size | 320mm×160mm | Temperature range | -15~60°C |
Module resolution | 32dot×16dot | Humidity range | 10%~90%RH |
Brightness | >6000nits | Control system | Synchronous control system Asynchronous control system |
Driving method | Constant current 1/4scan | Input signal | AV S-VIDEO VGA DVI HDMI YPBPR SDI DP |
