Product Specifications
| Prod Model: |
ISE-30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
1.2kw |
| Driven: |
Electric |
| Pipe Thickness: |
Less Than 15mm |
| Working Range(Iod): |
18-30mm |
| Type: |
Tool Milling Machine |
| Object: |
Tool |
| Automatic Grade: |
Manual |
| Precision: |
High Precision |
| Structure: |
Inside |
| Controlling Mode: |
Electric |
Product Description

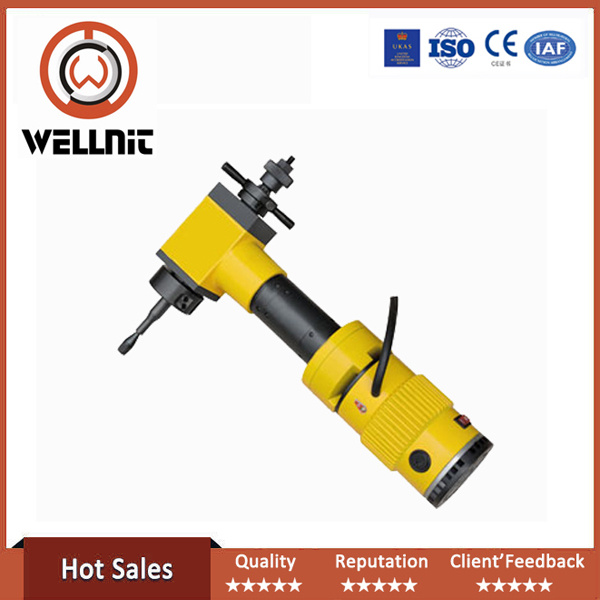

CE Certificate Quick Pipe Bevelling Tools
Product Show
Production Description
The CE Certificate Quick Pipe Bevelling Tools utilizes an expandable mandrel which is slid into the open end of the pipe. A draw nut is tightened, which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the material from the end, a bevel is produced which conforms to the angle predetermined by the angle ground into the bit. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.Features:
- On-site cold Beveling improves safety
- Easy set-up & Operation
- Self-Centering
- Can be positioned in any direction
- Feed ratchet spanner makes tool feed / back easily
- Light weight and compact design
Spcification:
| Model | Working Range(ID-OD) | Wall Thickness(mm) | Rotation Speed(r/min) |
| ISE-30 | ISM-30 | Φ18-30 | 1/2"-3/4" | ≤15 | 50 |
| ISE-80 | ISM-80 | Φ28-89 | 1"-3" | ≤15 | 55 |
| ISE-120 | ISM-120 | Φ40-120 | 11/4"-4" | ≤15 | 30 |
| ISE-159 | ISM-159 | Φ65-159 | 21/2"-5' | ≤20 | 35 |
| ISE-252-1 | ISM-252-1 | Φ80-273 | 3"-10" | ≤20 | 16 |
| ISE-252-2 | ISM-252-2 | Φ80-273 | ≤75 | 16 |
| ISE-352-1 | ISM-352-1 | Φ150-356 | 6"-14" | ≤20 | 14 |
| ISE-352-2 | ISM-352-2 | Φ150-356 | ≤75 | 14 |
| ISE-426-1 | ISE-426-1 | Φ273-426 | 10"-16" | ≤20 | 12 |
| ISE-426-2 | ISM-426-2 | Φ273-426 | ≤75 | 12 |
| ISE-630-1 | ISM-630-1 | Φ300-630 | 12"-24" | ≤20 | 10 |
| ISE-630-2 | ISM-630-2 | Φ300-630 | ≤75 | 10 |
| ISE-850-1 | ISM-850-1 | Φ490-850 | 24"-34" | ≤20 | 9 |
| ISE-850-2 | ISM-850-2 | Φ490-850 | ≤75 | 9 |
FAQ
1) Question: How to choose a suitable model?
RE: Before choose the model,we need to know more details about the pipe,such as the I.D,O.D,wall thickness,the material of the pipe and the enviroment of the site and the requirement of the end face. Then it will be more convient for all of us to make an immediately decision .Thanks!
2) Question: Do you have another choice about the driven?
RE: Of course,we have widely variety of choices for you, such as the electric,pneumatic,hydraulic and NC.
3) Question: About the type of the beveling?
RE: The normally type is the v and U,if you have any special requirement, please let us know it, i believe that our engineer can provide a solution for you.
