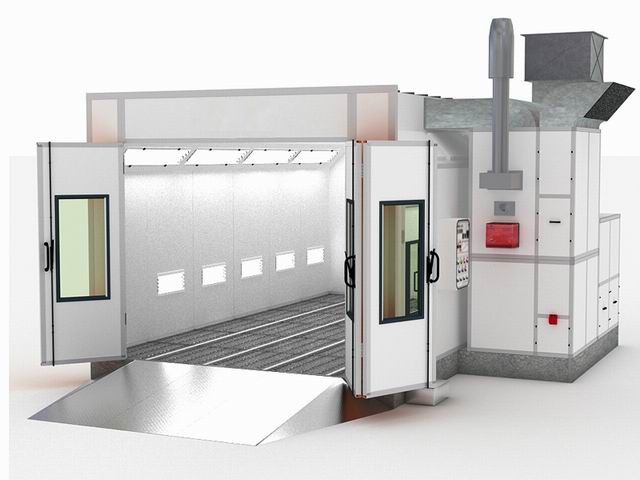

CE Certificated Customized Spray Booth/Paint Box/Baking Oven

Name: CE Certificated Customized Spray Booth/Paint Box/Baking Oven
Brand: china-manufacturer-directory.com
SKU: 702248012
Availability: InStock
Rating: 4.5 (38 reviews)

Supplier:	Qingdao Hua Yushun Commercial Co., Ltd.
Price:	US $ 9000-39000/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CPP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outside Size(mm):	More Than 9000mm, According to Requirement
Inside Size(mm):	Changed According to Outside Size
Front Door(mm):	3800X3900 mm(Wxh), 4-Folded
Service Door(mm):	650X2000 mm(Wxh), More Than 2 Units
Wallboard:	75mm EPS Panel, 0.5mm Steel or Customize
Exhausting System:	Exhaust From Sides
Inlet Fan:	Different Size of Turbo Fans
Outlet Fan:	Different Size of Turbo Fans
Heating System:	Italy Riello Rg5s Diesel Burner
Lighting System:	Anti Explosion Lights
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Wet-type
Condition:	New
Brand:	Captain

Product Description

CPYE207501
Outside Size(mm):	12150×6000×4500mm(LXWXH)
Inside Size(mm):	12000×4500×4000mm(LXWXH)
Front Door(mm):	3800×3900 mm(WxH), 4-Folded with Safety Glass Window, galvanized steel cover frame,with polystyrene(EPS) insulation inside.
Service Door(mm):	650×2000 mm(W×H),2 Units, With Safety Glass Window and two sets of pressure lock which will automatically open when the pressure inside is over the limit.(2 service door all at the left side)
Total Power:	44KW
Cabin System	Wallboard	Double construction with insulations EPS , thickness 75mm,0.5mm steel thickness, width:950mm, tongue and groove interlock structure, with Polystyrene(EPS) insulation inside .
	Basement	Need to build the base construction , 2 rows of pits in the ground for exhaust air, dimension of each pit is10350×760mm((LxW), with galvanized grids made by twisted steel and flat bar above.
	Inlet Fan(Belt)	Capacity: 14500m³/h each	Outlet Fan(Belt)	Capacity: 18000m³/h each
		Power: 4kw		Power: 5.5kw
		Quantity: 4 sets		Quantity: 2 sets
Purification System	G3 grade, Air Inlet pre filter, EU5/F5 high efficiency filter (ceiling filter), G3 grade glass fiber floor filter, exhaust active carbon filter.
Heating System	Italy Riello RG5S diesel burner, 260000Kcal/h, 2 sets
	Heating exchanger, stainless steel
	max temp: 80 degree centigrade, heating time:6-8 min(from 20 to 60)by Drying Phase
Lighting System	Ceiling Light: 16 Units, each 3×36 W, with electronic ballasts; Side Light: 18 Units, each 2×36W, with electronic ballasts
Controlling System	Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hour meter, temperature limit controller.
Environmental System	G3 grade glass fiber floor filter, exhaust active carbon filter.

Qingdao Hua Yushun Commercial Co., Ltd belongs to Captain Auto Equipment Group, which is responsible for exporting for all the products of Captain Group. And Captain is a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. Captain developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, Captain established Qingdao Commercial Center, which is operated by Qingdao Hua Yushun Commercial Co., Ltd who is responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.

· Now the products of Captain group refer to auto repair quipments, furniture spray booth, preparation bay, shot blasting machine, antiseptic treatment production line, injection pieces, all kinds of EPS panel, rock wool panel, glass fiber panel and decorative panel outside, commercial kitchen equipment, etc.

· After all these years, high-quality products and good service won wide reputation for our group from our buyers, and our products are exported to Germany, the United States, Sweden, the Netherlands, Denmark, Romania, South Africa, Australia, Canada, Italy, New Zealand, Nigeria, Zambia, Thailand, Chile and other countries and regions.

Face to the ever-changing market, Captain looks providing more secure, reliable, energy conservation and environmental protection products as it's responsibility, listens to the buyer's comments carefully, improve the quality of products and service, Continue to increase the research and development ability of enterprise innovation and equipment; We will paste with the future, and slipped through the waves.
