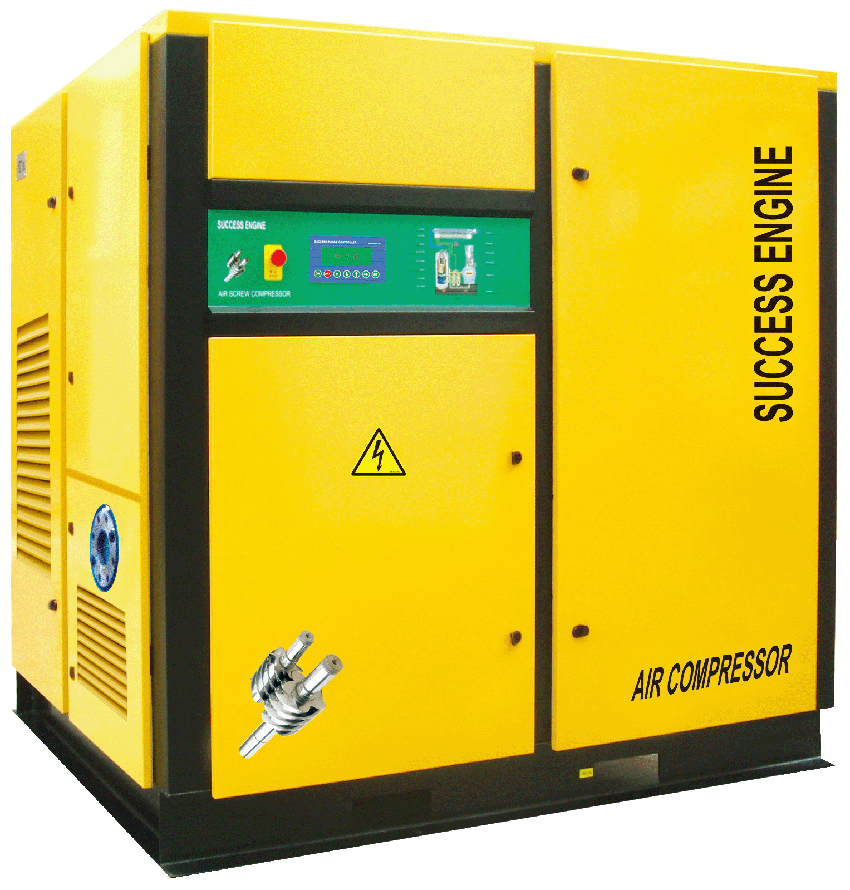

CE Certificated Direct Driven Screw Air Compressor (120HP)
Product Specifications
Prod Model: |
SE110A-SE220A |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Screw |
Performance: |
Low Noise |
Drive Mode: |
Electric |
Power Source: |
AC Power |
Configuration: |
Stationary |
Material: |
Carbon Steel |
Piston Type: |
Closed |
Lubrication Style: |
Lubricated |
Mute: |
Not Mute |
Product Description
Description
SE110-220 (110-220KW)
1. Power: 150-300HP, volume flow: 480.3-1324.2CFM, pressure: 0.7-1.3Mpa.
2. The compressor is imported from Europe. It is composed of the male and female rotors, bearing, shaft seal, and housing. It features low rotation speed and high efficiency of gas production.
3. The adopted SKF bearing is durable. Its service life is longer than 30, 000 hours.
4. Our direct drive air compressor is equipped with a PLC system which supports control mode selection, operation state display, parameter presetting, and fault history query.
5. A MODBUS 485 interface is reserved. It can be used for realizing remote monitoring.
6. Motor protection class: IP54, insulation class: F, service factor: SF=1.15
7. Cooling method: Air cooling and water cooling.
8. Products of different working voltage and frequency can be customized, 120V, 220V, 240V, 380V, 440V, 415V, 440V, 460V, 575V, 50HZ and 60 HZ.
Model | Power | Working pressure | Free air delivery | Dimensions mm | Weight Kg | Outlet connection | Noise level dB(A) |
kW | H.P. | bar | psig | m3/min | cfm |
SE110A(W)-7/D | 110 | 150 | 7 | 102 | 20.5 | 724 | 2166×1700×1918 | 2300 | DN 65 | 78 |
SE110A(W)-8/D | 8 | 116 | 20 | 706 |
SE110A(W)-10/D | 13 | 189 | 17 | 600 |
SE110A(W)-13/D | 13 | 189 | 13.6 | 480 |
SE132A(W)-7/D | 132 | 180 | 7 | 102 | 24 | 847 | 2166×1700×1918 | 2500 | DN 65 | 80 |
SE132A(W)-8/D | 8 | 116 | 23.5 | 830 |
SE132A(W)-10/D | 10 | 145 | 20.2 | 713 |
SE132A(W)-13/D | 13 | 189 | 16 | 565 |
SE160A(W)-7/D | 160 | 220 | 7 | 102 | 27.2 | 960 | 2466×1900×1918 | 2750 | DN 65 | 80 |
SE160A(W)-8/D | 8 | 116 | 26.6 | 939 |
SE160A(W)-10/D | 10 | 145 | 24.5 | 865 |
SE160A(W)-13/D | 13 | 189 | 20.8 | 734 |
SE180A(W)-7/D | 180 | 240 | 7 | 102 | 30 | 1059 | 2466×1900×1918 | 3000 | DN 65 | 82 |
SE180A(W)-8/D | 8 | 116 | 29.2 | 1031 |
SE180A(W)-10/D | 10 | 145 | 26.8 | 946 |
SE180A(W)-13/D | 13 | 189 | 23 | 812 |
SE200A(W)-8/D | 200 | 270 | 8 | 116 | 33.6 | 1186 | 2966×2000×1920 | 4500 | DN 80 | 82 |
SE200A(W)-10/D | 10 | 145 | 29.5 | 1041 |
SE200A(W)-13/D | 13 | 189 | 25 | 883 |
SE220A(W)-8/D | 8 | 116 | 37.5 | 1324 |
SE220A(W)-10/D | 220 | 300 | 10 | 145 | 33.5 | 1183 | 2966×2000×1920 | 4800 | DN 80 | 85 |
SE220A(W)-13/D | 13 | 189 | 28 | 988 |
1, Direct Drive and Air Cooled(Water Cooled) 2, Power Supply: Standard 380V/3P/50Hz, can be changed according to your actual requirements, for example 220V/3P/60Hz,415V/3P/50Hz,440V/3P/50Hz,575V/3P/50Hz,etc. 3, With CE certificate. |
About us:
Shanghai Success Engine is the professional screw air compressor manufacturer in China. We are engaging in the design, produce, sell & service of whole air compressor system solution. With the yardstick idea of "outstanding differences, create advantage " and the management mode of European classical factory, we joint home and abroad advanced technology and equipment, relying on the leading position of great economic place of Shanghai Waigaoqiao Free Trade Zone, achieved a low-cost but high quality, low-input but high-yield production of double screw air compressors professional modern ecological factory.
In China market, SUCCESS ENGINE has become the first choice of compressor supplier to high-end users with leading technology, strong sales network and excellent after-sales service. Such as: Shanghai-Hangzhou magnetic train project (The largest air compressor air station of shield machine in Asia), Shanghai Heavy Machinery Plant Co., Ltd(China aircraft carrier bent axle manufacturer), Taikoo(Xiamen) Landing Gear Services Co., Ltd(The second large landing gear services center in the world), Shandong Luxi Chemical Co., Ltd(The largest fertilizer production base in China), Mengzi Metallurgy Co., Ltd(The largest lead Zinc mineral base), China Eastern Shanghai Pudong Airport Aircraft maintenance base, Baosteel moveable compressed air station and other national key projects.
In international market, SUCCESS ENGINE is putting the business forward to globalization, with a series certification of ISO9001, CE, ASME, our compressor rapidly export to Canada, USA, Russia, Brazil, Portugal, Poland, Hungary, South Africa, India, Singapore, UAE, Egypt, Saudi Arabia, Jordan, Kuwait, Turkey, Mongolia, Indonesia, Nigeria, Bangladesh, Pakistan, Vietnam, Peru, Yugoslavia, Chile, Argentina, Uzbekistan, Burma and other more than 60 countries and area.
Corporate Culture:
Stress differences, create advantage.
Attentive to details and pursuit zero of defect.
Customer centric, overstep client' S expectation and manufacture prefect air compressor.
Energy saving and environment protect.
Mix intelligence into innovation, reveal essence form SUCCESS ENGINE.
Product:
As an experienced air compressor manufacturer, we have reached the international advanced level of compressor design and technology. Our main product as:
Stationary screw air compressor
VSD screw air compressor
Non standard screw air compressor
Moveable diesel screw air compressor
Other ancillary equipments: Air receiver, air dryer and high efficiency air filter.
With the features of high-performance, low energy consumption, less trouble, wear-resistant and humanization design, our products are broadly used in steel, energy, electricity, electronics, petrochemical, papermaking, printing, foodstuff, textile, pharmaceuticals industry and other infrastructures fields.
Quality Guarantee:
SUCCESS ENGINE selects high performance compressor air-end, highly efficient heat exchanger cooling system, special compressor motor equipped with heavy load SKF bearing and ABB electric system, meantime, strictly follow the ISO quality management system standards, pay attention to every detail, pursuit of zero defect. Products have got the international certificate of ISO9001, CE, and ASME.
