Product Specifications
| Prod Model: |
T-518 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
T-518 Professional Two Way Radio |
| Waterproof Rate: |
IP67 |
| Output Power: |
5W |
| Capacity Of Battery: |
1400mAh |
| Charger: |
USA, Eur, England, Ect |
| Channel: |
16 |
| OEM/ODM Order: |
Yes |
| Frequency Range: |
136-174MHz/400-480MHz |
| Offer Sample Testing: |
Yes |
| Talk Range: |
8km Max |
| Style: |
Handheld |
| IP Rating: |
IP67 |
| Usage: |
Army |
| Type: |
Handheld |
| Battery Type: |
Lithium Battery |
| Display: |
Without Display |
| Working Frequency Range: |
UV Double Section |
| Certification: |
CE, FCC |
Product Description
Professional two way radio manufacture------------more than 15year---------FCC, CE, KCC--------Made in China YANTON------------__________________________________________________CE FCC, IP-67 Professional Walkie Talkie Yanton T-518 two way radio Main features:1. Frequency Range VHF 136-174MHz or UHF 400-480MHz
2.16 channels
3. Output power: 5W
4. Priority scan
5. PC software programmable, Encrypted programming software
6. VOX function
7. CTCSS/DCS
8. Chinese and English voice prompt
9. Power saving function
10. High/low power selective
11. Wide/narrow bandwidth selective
13. Emergency alarm
15. Busy channel lock
16. Transmitter time-out timer(TOT)
17. Side key assignment
18.0-9 grades squelch level setting
19. IP67 waterproof, dustproof, shockproof
20. ANI and PTT-ID

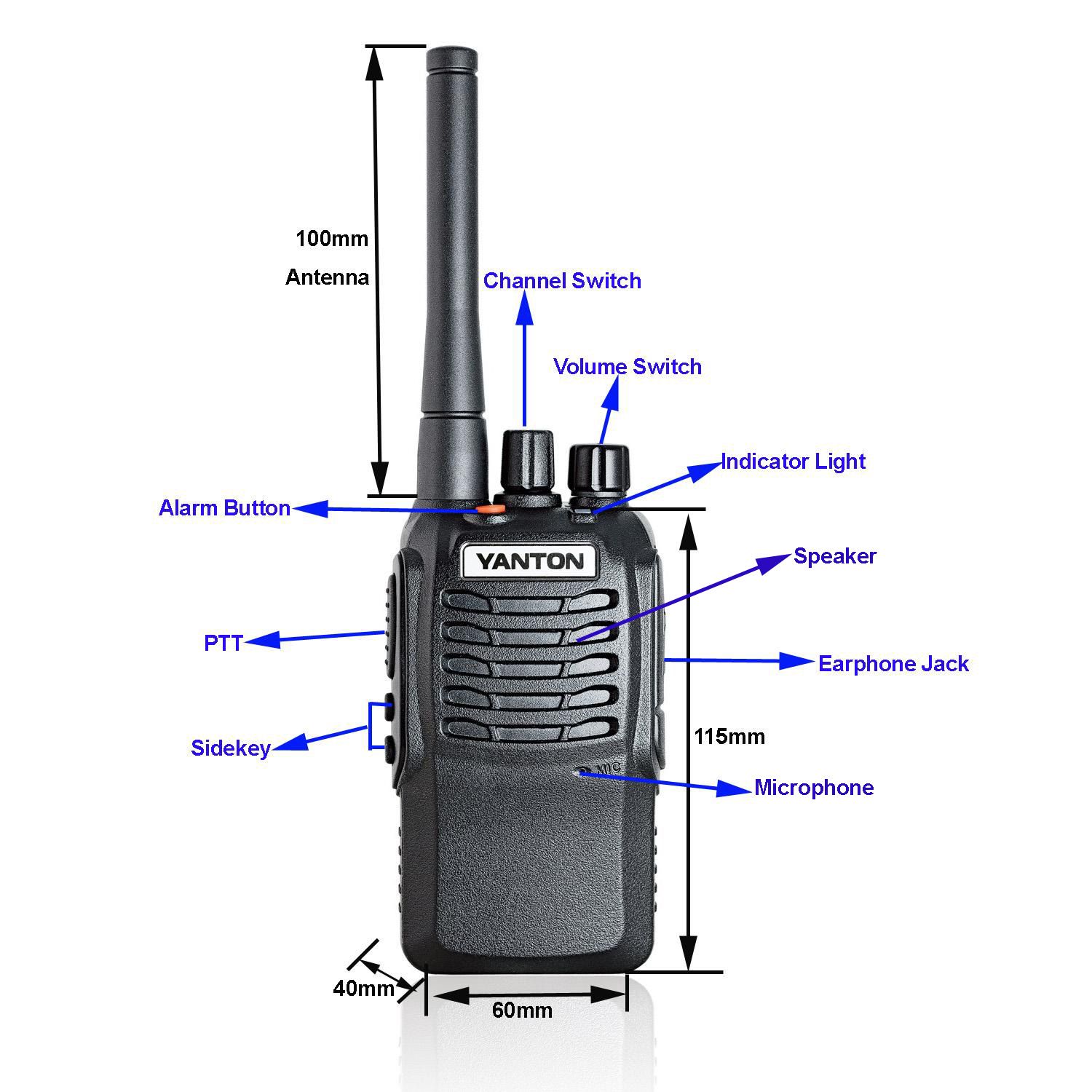

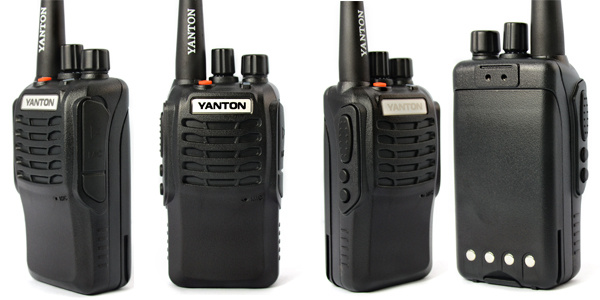

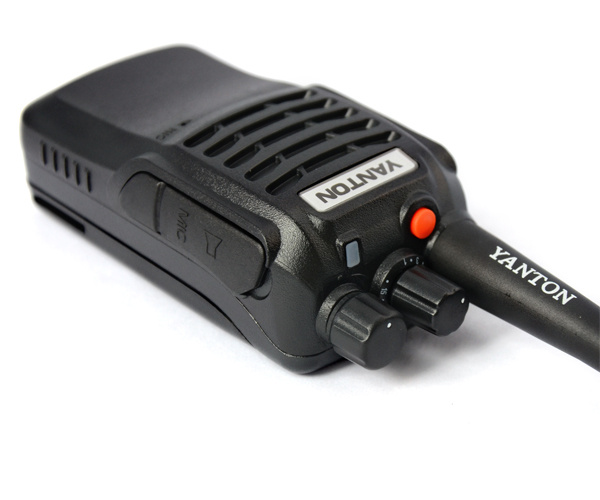

21. FCC and CE approvalDetail pictures:
Specification:| Model | T-518 professional two way radio |
| GENERAL | Frequency Range | 136-174mhz/400-480MHZ |
| Number of Channels | 16 |
| Working Voltage | 7.4V LI-ION |
| Working Temperature | -20°C~+60°C |
| Frequency Stability | ±2.5ppm |
| Size(H*L*W) | 111*54*34mm |
| Weight | 249g |
| TRANSMR | Power Output | 5W |
| Modulation | F3E |
| Radiation | <-60dB |
| Power | >55/65dB |
| Modulation Limit | ±2.5/5KHz |
| Distortion | ≤5% |
| Noise Response | 34/40dB |
RECEIVER | Sensitivity | <0.20µV |
| Neighbour Channel Selectivity | ≥60/70dB |
| Noise Response | ≥65/70dB |
| Audio Power | 500mW |
| Audio Distortion | ≤5% |
| Intermodulation Distortion | ≥60dB |
-----------------------------------------------------------------------------------------------------------------------------------------------
Note:1. Please contact us at first time for bulk order. Large discount is waiting for you.
2. OEM/ODM service, we can design packing box and Logo mark as your requirement.
3. Sample time: 7 days
4. Payment: T/T, Western union, Paypal
5. Warranty: One year
6. Lead time: 3 days for 500 units, 15 days for 10000 units.
7. Shipping way: By sea or by air
-----------------------------------------------------------------------------------------------------------------------------------------------
Maintenance:Radio transceiver should be treated with care. The suggestions below will help you to fulfill any warranty obligations and to enjoy this product for many years
- Do not attempt to open the unit. Non-expert dealing with the unit may damage it.
- When using regulated power supply, take notice of power voltage must be between 6V and 8V to avoid damage the radio
- Do not store the radio under the sunshine or in hot areas. High temperatures will shorten the life of electronic devices, and warp or melt certain plastics.
- Do not put the radio in dusty, dirty areas.
- If it appears that the radio diffuses peculiar smell or smoke, please turn off it immediately and take off charger or battery in the radio, then contact with YANTON agency.
- Do not transmit without antenna
-----------------------------------------------------------------------------------------------------------------------------------------------
