Specifications
1. High speed and output
2. Siemens PLC control
3. Steel Yankee dryer
4. AC variable frequency division drive
Main techinical parameters:
1. Products: Facial tissue, toilet paper, kitchen paper, etc
2. Basis weight: 11-23g/m2
3. Net paper width: 2850mm
4. Working speed: 500 m/min (dryer lind speed)
Drive speed: 550m/min (dryer line speed
5. Dynamic balancing speed: 600m/min
6. Transmission power: 265KW(forming roll 90KW, dryer 160Kw, reeling cylinder 15KW)
7. Maximum roll diameter: 2500mm2850-500 Tissue machine for making toilet tissue, facial tissue, napkins, kitchen towel, hand towel, etc.
This year we will have three 2850-500 crescent former tissue paper making machine whole line from 2850-500 crescent former tissue paper making machine to Stock preparation line ( one is virgin pulp for IRAN, one is waste recycle & virgin pulp for Uzbekistan, one waste paper for Algeria ) and then Rewinder and slitting machine also with the auxiliary equipment etc.

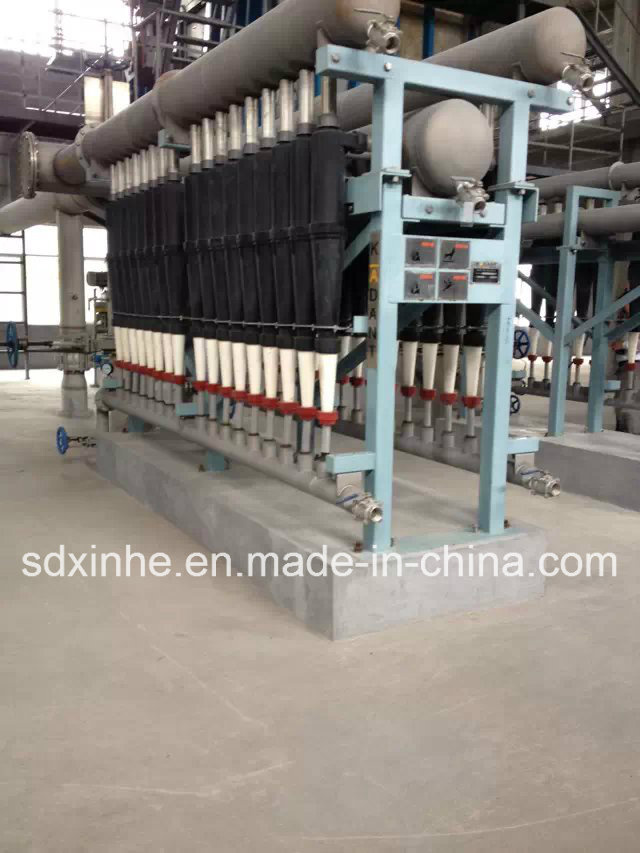

Our machine working photos:

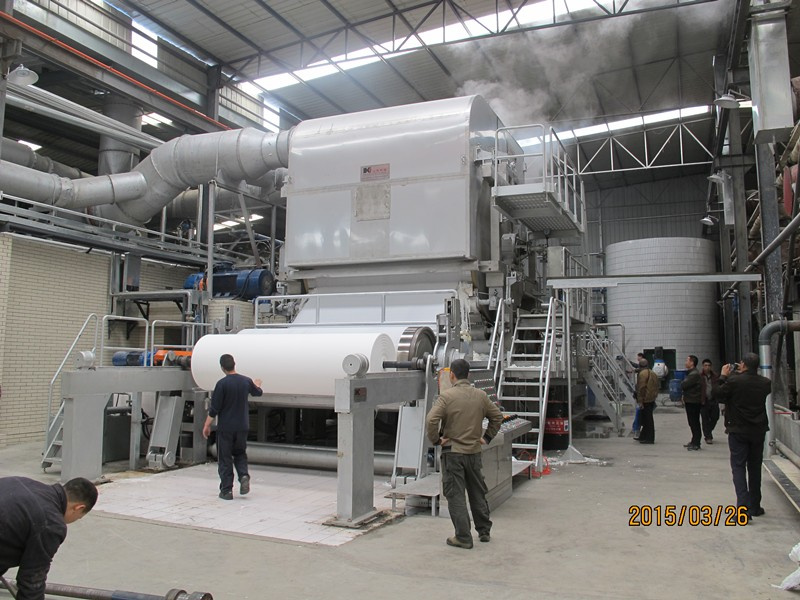

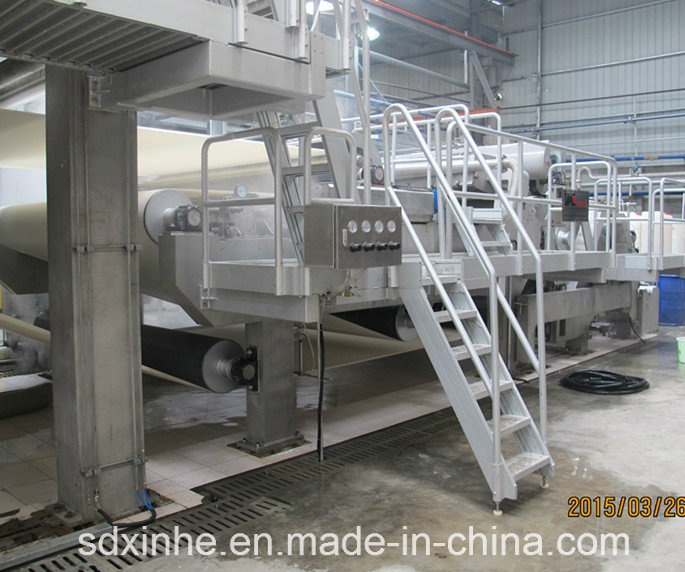

This 2850-500 crescent former tissue paper making machine has been working in Sicun Province. During the second test running day, it's working speed is 600m/min and with 13 GSM basis weight. The steam consumption is 2.2 tons steam/ton paper. With our own production Steel Yankee dryer, the whole machine electric consumption is 300 degre/ton paper with the crane and lighting. Run smoothly . no broken paperTurn-key Projects and Auxiliary Systems
We have contractored three 2850-500 crescent former tissue whole line from paper making machine to stock prepration line to slitter and rewinder machine with auxiliary equipment.
The Auxiliary systems that could be included in the projects are:
- Slitter Rewinder
- Approach Flow System
- Steam and Condensate System
- Vacuum System
- Compressed Air System
- Overhead Cranes
- Electrical Control
- DCS and QCS
- Fiber Recovery System
- Water Treatment System
- Chemical Dosing System
Stock Preparation including:
- Deinking Line
- OCC Line
- Virgin Pulp Line
- Broke Line
We have China biggest Steel Yankee Dryer manufacturer and workshop
Our Services
1.Customized projects and complete production lines designed according to customer needs.
2.Modification of existing machines with solutions to satisfy customer needs.
After-sale Service
1.The machine will be fully pre-erected at Xinhe workshop with complete on-mahine pre-piping in order to minimize mill site erection timing.
2.The machine can be supplied with the accessories using first class components.
3.We shall provide the G.A. drawing, foundation drawing and layout drawing after receiving the advance payment.
4.We have the professional installation team to provide erection/or erection supervision, commissioning, test-run and training for customer. The customer shall provide international flight ticket, local transportation vehicle, food, hotel accommodations and salary for our engineers.
5.Performance and Mechanical Guarantee shall be provided for 1 year from the successful commissioning or 1.5 years from the date of Bill of Lading.
More details please contact with: Tel : +8618265537767
Shandong XinHe Paper-Making Engineering Co., Ltd is located in Liaocheng, west of Shandong province, which is a beautiful Water-City in the north of China. We are a professional integrated company. Main business includes paper machine manufacturing, engineering installation, commissioning and the total package of paper-making project. We own a group of excellent staff team and powerful, high-precise processing and welding equipments. Since the company was established, it has served dozens of production lines for many paper-making enterprises and enjoys a good reputation among them. A number of mills have contracted more than 10 production lines. The company is also equipped with a large number of the entire production line and assembly parts mainly exported to Southeast Asia, West Asia and South America etc.
Comer S. P. A. Was founded in 1960, is locate in Vicenza of Italy famous architecture city. It has long been engaged in mechanical pulp production line, deinked pulp production line, high-speed tissue machine, head box and designing and production of Yankee dryer. Several tissue machines in America, Brazil, Saudi Arabia etc had functioned very well, the machine speed is more than 1200m/min(basis weight 13G/m2), with low energy consumption. The finished paper has high flexibility. Comer S. P. A has first-rate design team, advanced processing equipment, pulp preparation system and pulp research lab.
Now Comer S. P. A. Authorized our company as sole agent of Crescent Tissue Machine in China. AP and South America which the paper width is between 2800-5000mm, the speed is or more than 1200-2000m/min, sell kinds of head box, steel Yankee dryer, suction touch roll, doctor and pulp-making equipments etc.
We will supply high quality product, lab service, field installation and training for all paper mills. We want to bring max profit for our customer with high quality product and low price.
