Product Specifications
| Prod Model: |
XY-3I(r)360/450/550/610/710 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
1 Year |
| Colour: |
as Require |
| Certificate: |
ISO,CE |
| Voltage: |
380V,50Hz,or as Require |
Product Description

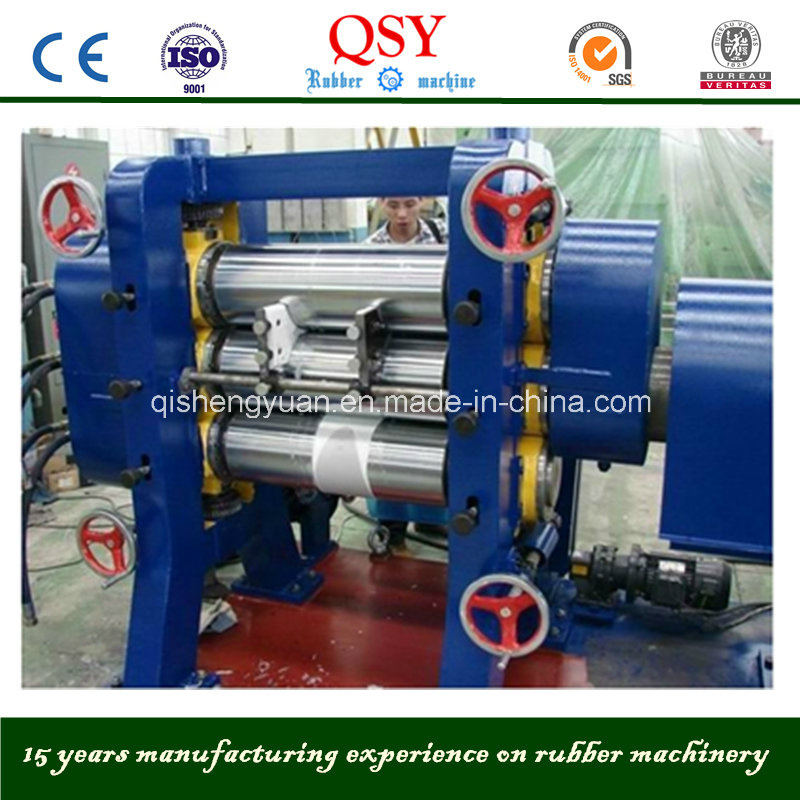

CE&ISO 3 Roll rubber calender machine
Product Description
Rubber Calender, Rubber sheeting machine, Three roll rubber calender.
Application: This machine is mainly used in the rubber (tire, leather belt, textile fiber rubberizing etc, the plastic film, plate, artificial leather, wallpaper, floor and so on)formation processing.
Structure: Roller, rack, backplane, adjustment device, transmission system, roller temperature control device, lubricating device.
Features:
1. Tailored structure, easy to operate and install.
2. There are many speeds and speed ratios available, which can satisfy most customers' formula and processing requirements.
3. Frame and base are welded and treated by annealing for stress relieving.
4. The speed reducer is the hard-tooth surface gear reducer of class 6 precision, which has long service life and low noise.
5. Perfect emergency stop device can ensure the safety of person and equipment.
6. The seal structure with special design can eliminate the leaking phenomenon of lubricating oil.
7. The calender is equipped with rolling bearings.
8. The roll is made of chilled cast iron alloy (LTG-H), equipped with rotating joint. Its surface finish is over Ra0.8. bored and drilled rolls are optional.
9. Friction gear with single output axle adopts herringbone gear, rotating stably.
10. Full range of bending deflections is optional including middle height, inflection and axis crossing.
11. Different control systems are available to customers, including bus-mastering system, PLC control system and general control system.
12. Driving structure with single output axis takes the place of big and small driving gears.
Parameter:
Parameter / Model | XY-3I
230x630 | XY-3I
360x1120 | XY-3I
400x1400 | XY-3I
450x1500 | XY-3I
610x1730 | XY-3I
710x2130 |
| Roll Diameter (mm) | 230 | 360 | 400 | 450 | 610 | 710 |
| Roll Working Length(Mm) | 630 | 1120 | 1400 | 1500 | 1730 | 2130 |
Middle-Roll Linear Speed
(m/min) | 0.8-8 | 3-20 | 3-26.39 | 2.62-26.2 | 5.4-54 | 8-50 |
| Adjusting Nip Range(mm) | 0-7 | 0-10 | 0-10 | 0-10 | 0-20 | 0-20 |
| Product Thickness (mm) | 0.2 | 0.2 | 0.2 | 0.2 | 0.15 | 0.15 |
| Product Width(mm) | 100-500 | 500-920 | 1200 | 1400 | 1500 | 1900 |
| Motor Power(Kw) | 7.5 | 55 | 55 | 75 | 132 | 185 |
Overall Dimensions
LXHXW(mm) | 3168 | 6500 | 6500 | 7420 | 7010 | 7650 |
| 890 | 1500 | 1500 | 2200 | 3950 | 4560 |
| 1830 | 2440 | 2440 | 2900 | 3730 | 4080 |
1.Are you manufacturer?
Yes,we are BV approved rubber products manufacturer in China.
2.Can you design new product for us?
Yes,we have a professional development team that make new products according to your requirements.
3.Can you supply sample?
Yes,we can supply you free small samples,but air cost will be paid by customers.
4.What's your payment term?
Common is 30% deposit by T/T,the balance paid against shipping documents.
Or L/C at sight.
5.Are you near to Qingdao airport?
Yes,only within 1 hours.
And within 1 hour to Qingdao sea port.
50 minutes to Qingdao Railway Station.
6.Do you have any certificate of your products?
Yes, CE, BV, SGS, REACH.
7.Do you have any certificate of your company?
Yes, ISO 9001:2000.
8.Did your products apply the patent?
Yes,we have various kind of vulcanizing machine , mixing machine , tyre recycling machine patent.
Qingdao Qishengyuan Mechanical Manufacturing Co., Ltd. Was located in beautiful Jiaonan the west coast of Qingdao city Shandong province China. Our company is specialize in Rubber machinery production enterprise with R & D, design, production, sales and service.
The company covers an area of 12000 square meters, construction area of 8000 square meters, with self import and export rights, and has passed the ISO9001: 2008 & CE quality management system certification, Great Service is our mission. Hight Quality is our Obligation.
Our Company by virtue of years of production technology, We have rich experience technicians, We specialized produce Rubber two roll mixing mill machine, Rubber crusher mill machine, Rubber Kneader machine, rubber calender machine, rubber press vulcanizer machine, rubber refiner machine, waste tire recycling plants, Batch off cooling plants, rubber cutting machine, rubber strainer machine, Tires production line, Conveyor belt production line and so on.
We can design the machine as customer requires.
