CE ISO Certificated High Quality Continuous Discontinuous PU Sandwich Panel Production Line

Name: CE ISO Certificated High Quality Continuous Discontinuous PU Sandwich Panel Production Line
Brand: china-manufacturer-directory.com
SKU: 722093995
Availability: InStock
Rating: 4.8 (49 reviews)

Supplier:	Fuyang Wealth Imp & Exp Co., Ltd.
Price:	Negotiable/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:	1year
Certification:	ISO9001: 2000, CE

Product Description

We have two kinds of Discontinuous and Continuous Pu sandwich panel production line for your choose

1,Technical process:
Loading----de-coiler----laminating(cutting)----roll forming----connection----pre-heating----mixed foaming----double belt solidifying(heat preservation)----saw belt cutting----stacker

2,Main parameter:
1) Width: 1000-1200mm
2) Thickness: 40-150mm
3) Length: min cutting length 3m (random length cut manually)
4) Thickness of sheet: 0.4-0.8mm (steel sheet must be smooth, no concave-convex, deformation or sideway bending)
5) Width: max 1250mm (dimensional accuracy: ±2mm)
6) Yield strength: 235MPa
7) Weight of the roll: 8T max
8) Inner diameter of coil: Φ508,Φ610 mm
9) Working speed:3~8m/min
10) Production line length: about110m
11) Operational height: 1200mm (worktable height)
12) Inject pressure:10~20 MPa
13) Double belt effective length: 24m (according to customers' request)
14) Control system: PLC control (Siemens/Mitsubishi)
15) Main power: 250kw (electrical heating power not included)
16) Power Voltage: 380V/3 phase/ 50Hz
17) Control voltage: 24V/110V/220V
18) Pressure requirement: 0.7Mpa (factory prepared)

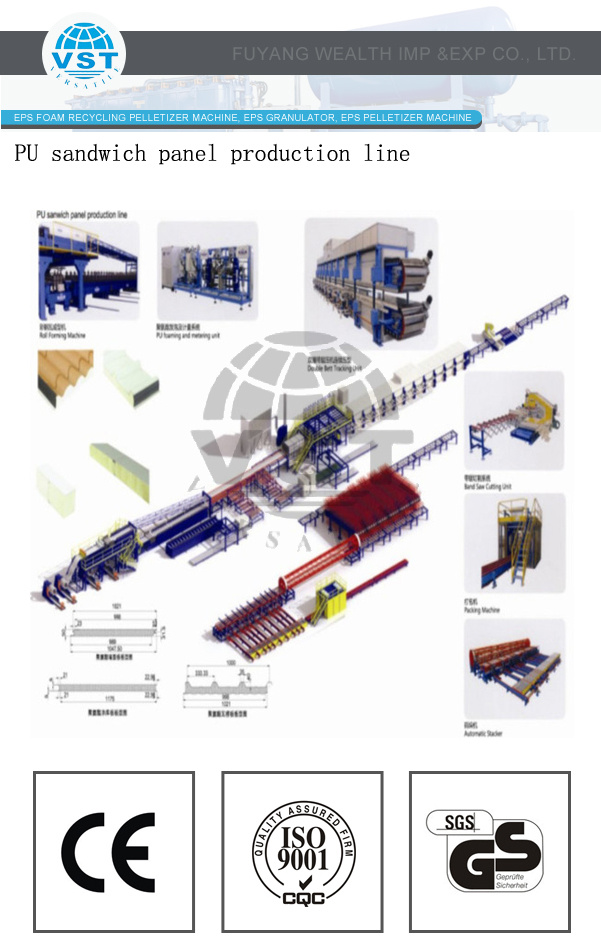

Components of pu sandwich panel line
Certification

We can custom make pu sandwich panel production line according to your request
Welcome to inquiry, Thank you!

Fuyang Wealth Imp&Exp Co., Ltd. Was founded in 2009, dealing with different kinds of equipment and engineering projects. Our main products are EPS raw material production line, EPS machines, cold room, Sandwich panel line, and some food processing equipment etc. Apart from our main equipment, we also help clients to search professional manufacturer for their required products. We offer one-station service to our clients, including factory checking and selection, production follow-up, product inspection, container loading supervision, after-sales service.

We stick to the principle of Service first, Quality first and develop our business heartfully and responsibly. We have technical person to check factories, to inspect products, and to communicate with manufacturers. We pay whole life responsibilty to the products we sell to our clients. We sincerely hope establishing long and friendly business relationship with clients from all over the world.

For those who suffer from distinguishing suppliers from long lists in B2B websites, and who have large range of products request but hesitate to pay multiple visits in China due to distance and time cost, we could therefore serve as your deputy in sourcing in China. We will share with you our experience and knowledge in market, make factory vsit and arrange every details well for you in China. We will be fast responser for any of your communication.

We are looking forward to your cooperation!
