Specifications
Conventional fire alarm manual call point;
Alarm impendence can select 0/470 ohm;
Resettable operating elements;
Description:

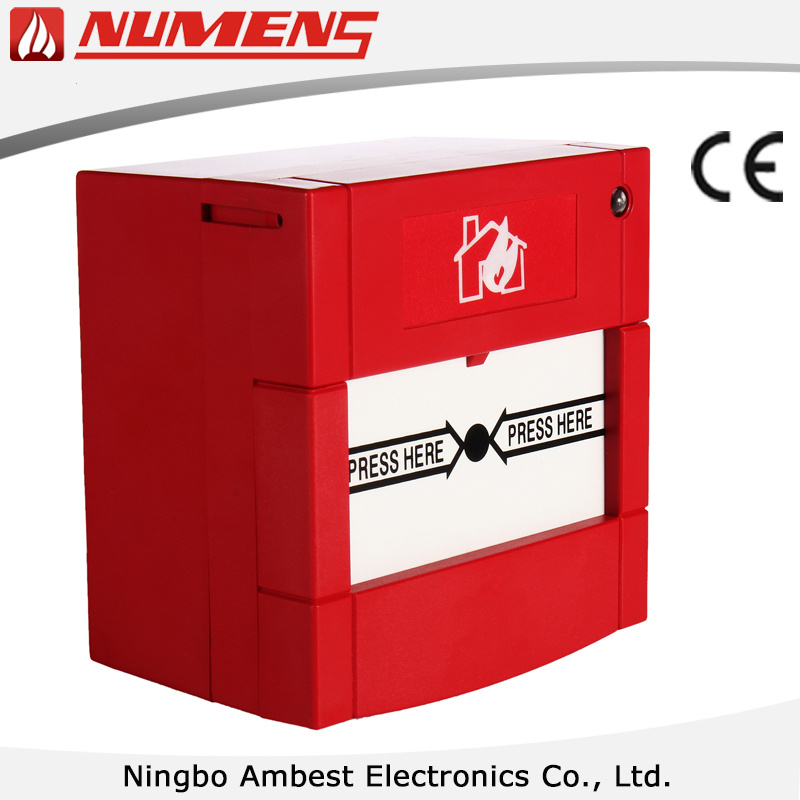

Series CPC-36 conventional manual call point is fully compatible with all conventional systems available on the market; The device features plug terminal connection and a resettable element. It is compliant with the requirements of EN 54-11.
Features:
1) Easy installation and maintenance
2) Operated by finger Pressure
3) Resettable Operating Elements
4) Alarm Impendence Can Select 470 Ω / 0Ω
5) Clearly Visible Alarm Signal Indication
6) Meets the Requirements of EN 54 Part 11
Model
|
CPC-36-A, CPC-36-B, CPC-36-C, CPC-36-D
|
CPC-36-E, CPC-36-F
|
Supply Voltage
|
DC 9 ~ 35V
|
Alarm Resistance
|
470 Ohms or 0 Ohms
|
0 Ohms
|
Color / IP
|
Red / IP24
|
Temperature Range
|
-10 ° C to +55 ° C
|
Max. Humidity
|
30% to 95% RH No Condensation
|
Dimensions
|
87.5 (W) *87.5 (H) *56.5 (D) mm
|
Weigh
|
160g
|
