Product Specifications
| Prod Model: |
Hz-DBMR16-5W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
RoHS |
| Emitting Color: |
White |
| LED Chips: |
Bridgelux |
| Life: |
35, 000hrs |
| Lamp Holder/Base: |
G5.3 |
| IP Rating: |
IP22 |
| Input Voltage: |
230V |
| Power: |
7W |
Product Description

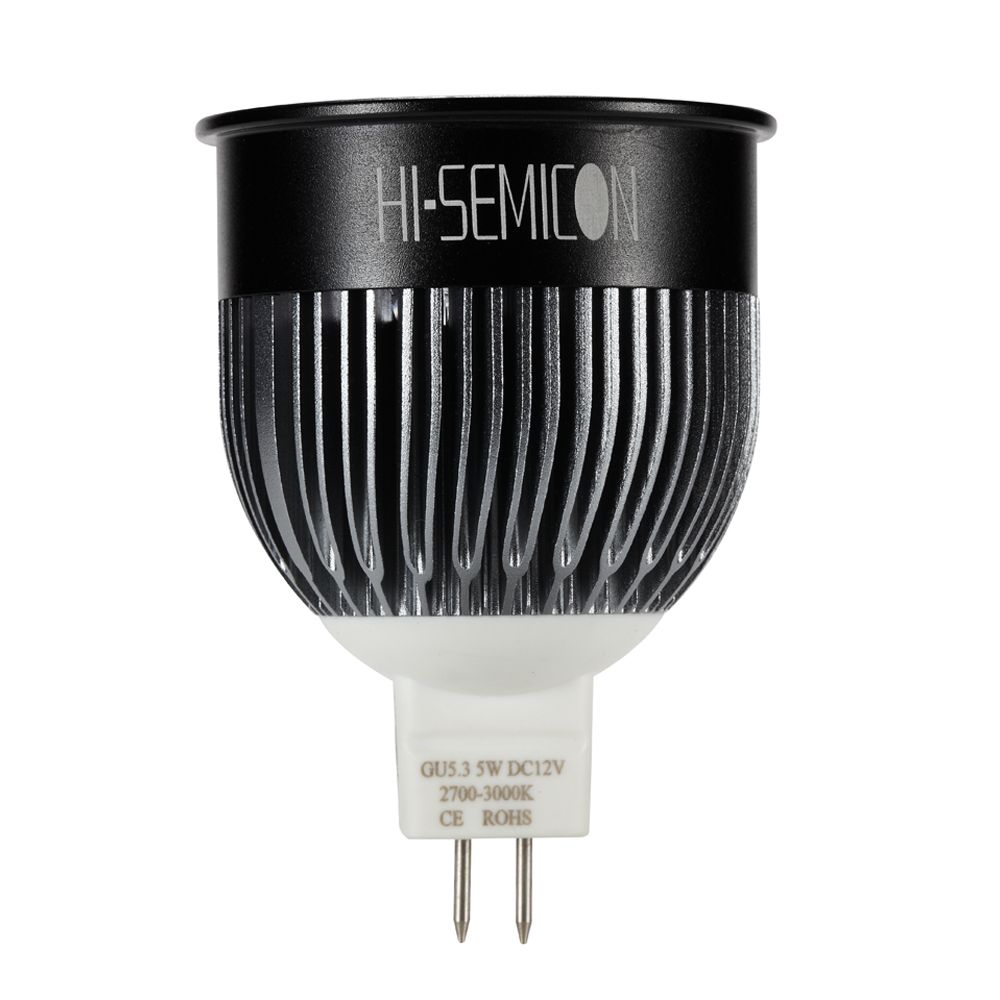

LED Spot light (Hz-DBMR16-5W)
Hi-semicon LED Spotlight is designed to replace the traditional halogen lamps. It is a perfect fit for spot lighting (track, corridors, lift lobbies, display cases and cabinets) in the hospitality industry. The compound eyes LED lens ensure a same light dispersion that you would expect from halogen lamps. The dimmable version will allow up more energy saving and create the atmosphere in special places (clubs, hotel, restaurant).
LED Spot light Features:
1. Same light dispersion that you would expect from halogen;
2. Available beam angles of 24/35/ 60 degree;
3. No Glare, High CRI ensure a high quality light;
4. Efficient heat dissipation technology;
5. Environmental friendly.
LED Spot light Applications:
Well suited for commercial and residential application, ideal for the replacement of traditional light, for instance: Villa, Restaurant, Hotel, Hall, Meeting room, Office Living room, Exhibition room, Gallery, Museum, Reading room, Bar, Bathroom, School, bedroom, buildings, underground parking garage, Supermarket, Shopping mall etc.
|
LED Spot light-Product No. |
Power |
Voltage |
Base |
Lumen |
Temp.
Colour |
CRI |
Beam Angle |
Dimmable |
|
HZ-DBMR16-5WI |
5W |
230V |
G5.3 |
300lm |
3000K± 200K |
> 90 |
24/35/60 |
Yes |
|
HZ-DBMR16-5W |
5W |
230V |
G5.3 |
400lm |
4000K± 300K |
> 80 |
24/35/60 |
Yes |
|
HZ-DB MR16-5WH |
5W |
230V |
G5.3 |
450lm |
5500K± 500K |
> 80 |
24/35/60 |
Yes |
|
HZ-DB MR16-7WI |
7W |
230V |
G5.3 |
420lm |
3000K± 200K |
> 80 |
24/35/60 |
Yes |
|
HZ-DB MR16-7W |
7W |
230V |
G5.3 |
560lm |
4000K± 300K |
> 80 |
24/35/60 |
Yes |
|
HZ-DB MR16-7WH |
7W |
230V |
G5.3 |
630lm |
5500K± 500K |
> 80 |
24/35/60 |
Yes |
|
LED Spot light-Product. |
Product Size |
Product Weight |
Package Size |
Carton Size |
Quantity Per Carton |
Carton Weight |
|
5W MR16 |
Φ 50*77 |
0.08 |
56*56*91mm |
300*300*205mm |
50 |
5.3Kg |
|
7W MR16 |
Φ 50*97 |
0.114 |
56*56*105mm |
300*300*235mm |
50 |
6.9kg |
Hi-semicon is vertically integrated manufacturer. We manufacture our product by using our leading-edge technological expertise in thermal management, optics and electronic circuitry, lenses and LEDs to improve our existing products, bringing further efficiencies through cost improvements and product design.
Hi-semicon technology focus on
System reliability and compatibility
Optical quality: Flicker-free, Anti-glare, High CRI
Light dispersion
Heat-control technology
Nano-coating technology
Intelligent control-DALI, Zigbee, Sensor est.
What can we do for our customer
Reliable product
System integration merits
Balance between Reasonable cost and function
Responsibility warranty
Thoughtful in-depth customization
Hi-semicon create long-term value for our customers.
