Product Specifications
| Prod Model: |
SJ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

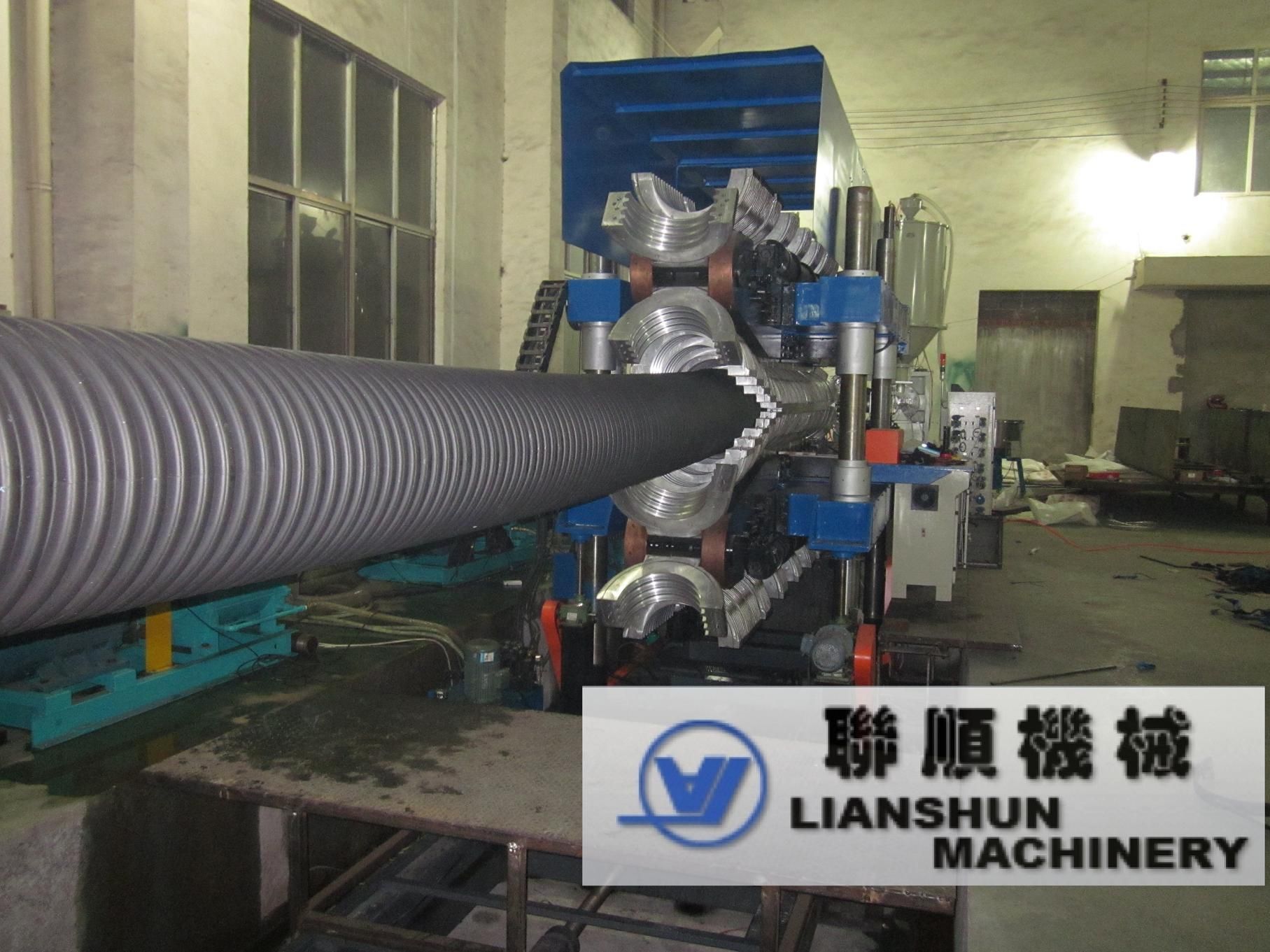

Plastic Double Wall Corrugated Pipe Machinery
1. Certification: CE & ISO9001: 2000
2. Diameter of pipe can be manufactured: 225-800mm
STRUCTURAL FEATURE
1. Equipped with two high-efficient single screw extruders and notching machine barrel to ensure effective extrusion of different materials for two walls.
2. Highly effective cooling system can ensure high speed production in continuity.
3. Nitrogen treated moulds and adjustable wall thickness device can ensure production with different materials and HG degree.
4. Corrugated moulds are made of precisely casted special alloys which can provide high precision and pressure resistance as well as good heat elimination effects.
5. Advanced pipe end expansion functions reduce much investment cost and enhance productive force.
6. The line adopts advanced Siemens PLC control system and large liquid crystal screen handling system, which realizes high automation, reliable operation and easy handling.
Double-wall corrugated pipe is new-type plastic tubing with the annular ripple on the outside wall and the smooth structure on the inner wall. Owing to many excellent features such as smooth inside-wall, high strength, lower weight, corrosion resistant, long life, flexibility, easy connection and so on, it turns out to be a good product to take place traditional pipe and is widely used in city rainwater and sewage discharge, drainage of residential district and mining enterprise, low pressure water input of tap water and water conservancy project; Aeration system, wire and cable construction etc, gaining high appreciation from departments of electric power, postal service, city planning, water arrangement etc.
HDPE large dia. Double-wall corrugated pipe has been designed and developed carefully in our factory on the basis of the experience of producing tubing equipment many years and the most advanced technology and manufacturing engineering in the world and it is a special processing equipment at national leading level. It has adopted the man-machine interface to control on the whole line with high degree of automation, easy to operation and running steadily.
HDPE double-wall corrugated pipe line configured with high-efficiency single screw extruder, dual passage spiral composite extrusion die, corrugated forming system, spray cooling water tank, hauling unit and stack unit.
|
Main Technical Parameters |
|
TYPE |
PIPE OD(mm) |
MOULD SIZE(mm) |
EXTRUDER |
OUTPUT(kg/h) |
MAX SPEED(m/min) |
INSTALLED POWER(kw) |
|
SGB400 |
225- 400 |
225, 300, 400 |
SJ75/33 SJ75/33 |
600 |
5 |
480 |
|
SGB600 |
225- 600 |
400, 500, 600 |
SJ90/33 SJ75/33 |
800 |
5 |
580 |
|
SGB800 |
225- 800 |
500, 600, 800 |
SJ120/33 SJ90/33 |
1000 |
3 |
750 |
Jiangsu Lianshun Machinery Co., Ltd., specializes in producing plastic machines, including pipe machines, sheet machines, profiled machines, recycling machines and auxiliary machines.
After more than four years development, the technologies are developed and the functions of machines are stable, especially for plastic pipe production lines and recycling machines. The main products of our company have been exported to different countries and have a good reputation.
We welcome customers from all over the world to cooperate with us. Please do not hesitate to contact us if you have further inquiry. We look forward to hearring from you soon in order to provide you with our best of service.
