CE Shot Blast Cleaning Machine for Foundries

Product Specifications

Prod Model:	8GN
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
3gn:	Tumble Belt Type Shot Blasting Machine
8gn:	Tumble Shot Blasting Machine
15gn:	Automatic Feeding and Vibrator Conveyor
Automatic Feeding:	Tumblast Shot Blasting Machine
Tumblast Shot Blasting Machines:	Shot Blasting Machines
Steel Belt Shot Blasting Machines:	Tumble Belt Shot Blasting Machines
Rubber Belt Shot Blasting Machines:	Belt Shot Blasting Machines
8gn-5r:	Shot Blasting Chamber
Shot Blast:	Cleaning Machine for Foundrie
Cleaning Machine:	Cleaning Machine for Foundry
Certification:	ISO9001 BV
Application:	Metallurgical Industry

Product Description

CE Certificate Cleaning Machine For Foundrie


Company message

QINGDAO HESONG MACHINE CO., LTD. is a professional manufacturer, which is located in Qingdao,China. It is the largest production and export base for foundry machinery in China. It have three production series: Shot blasting machine, sand blasting room / booth , Foundry molding machine and sand core shooter machines.

Our machines were exported to France, Spain ,Russia, Mexico , Japan,korean, Pakistan,Vietnam,
Thailand,Southeast Asia and other countries , so hope you can trust our professional technology
and strength !


Product Description
The machine adopts the endless rubber apron to form a special barrel, and make the work pieces tumble continuously during shot blasting process.

It is mainly used in forging work pieces and metal work pieces. The machine can be used not only as a single machine, but also as a part of a line.

Tumble belt type shot blasting machines are used to clean casting, forgings, stampings of crisp workpiece and surface adhering sand, rust layer of oxide, burrs of non-brittle parts.



Classification
Item NO.: 3GN Tumble Belt Type Shot Blasting Machine With Manual Door
Item NO.: 8GN tumble belt type shot blasting machine with manual door
Item NO.: 8GN tumble belt type shot blasting machine with Pneumatic door
Item NO.: 8GN-5R tumble belt type shot blasting machine with Automatic  Feeding And Vibrator Conveyor
Item NO.: 15GN Steel belt shot blasting machine with Automatic Feeding And Vibrator Conveyor
Item NO.: 28GN Steel belt shot blasting machine with Automatic Feeding And Vibrator Conveyor

No	Item	Unit	3GN	8GN-5R	8GN	15GN	28GN
1	Productivity	t/h	0.6-1.2	3.0-5	2-2.5	5-8	10-14
2	Feeding amount	kg	200	800	600	1300	3500
3	Max. weight of single piece	kg	10	150	30	250	365
4	Diameter of end disk	mm	650	1000	1000	1092	1245
5	Effective volume	cubic meters	0.15	0.4	0.3	0.43	0.79
6	Abrasive flow rate	kg/min	120	250	250	480	2X350
7	Ventilation capacity	cubic meters/h	2000	6000	3500	5000	6000
8	Power consumption	kw	12.6	32.6	24.3	50	64
10	Track type	Belt	Rubber	Rubber	Rubber	Metal	Metal

Working Principle:
Put the cleaning workpiece into the shot blasting chamber, and close the door, the machine starts, the workpiece is drum driven, and begin to roll, at the same time the shot form a fan-shaped beam by blast wheel high-speed blasting and uniformly blow on the surface of the workpiece. shot and grit from the holes on the belt flows into the bottom of the screw conveyor, fed into the elevator and sent them to separator for separation by the elevator. The dusty gas sent to the precipitator by the suction fan after filtration, change the clean air to the atmosphere, dust falls precipitator at the bottom of the dust box, the user may be periodically cleared by air blowback. Waste sand outflow by the waste pipe and it can reuse. Shot sand mixture recycling reuse pipe into the chamber body, to be separated separation and reuse; clean projectile by the for pill Gate into the blast wheel throwing wage pieces.

Certification : ISO9001 AND CE
Our machines were exported to France, Spain ,Russia, Mexico , Japan,korean, Pakistan,Vietnam,Thailand,Southeast Asia and other countries , so hope you can trust our professional technology and strength !



Packing and container:
2setsx3GN tumble belt type shot blasting machine will be load one 20feet container
3setsx8GN tumble belt type shot blasting machine will be load one 40feet container
2setsx8GN-5R tumble belt type shot blasting machine will be load one 40HQ container


Choosing the best machine for you :
In order to give you the suitable Shot Blasting Machine , please provide below message for us :
1. What is your workpiece and the material and the shape ?
2.The Max. Length/Width/Height of the workpiece and the MAX./MIN.weight of your workpiece ?
3.The productity you need to blasting the workpiece ( how many T or piece per day or per month?)
4. The power supply you need ( Our China :380V, 3PH, 50HZ)
5. Better to send us the workpiece photo or drawing.

Welcome to contact us or visit our factory in Qingdao China.

Our machines were exported to France, Spain ,Russia, Mexico , Japan,korean, Pakistan,Vietnam,Thailand,Southeast Asia and other countries , so hope you can trust our professional technology and strength !

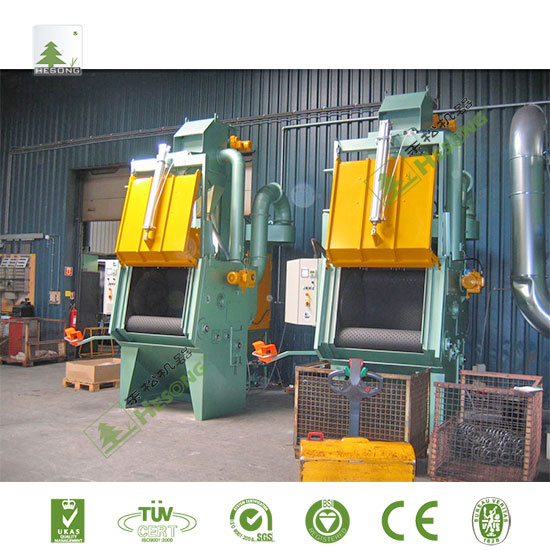

Our CE Certification AUTOMATIC SHOT BLASTING MACHINE at our factory

Tumblast Shot Blasting Machines Steel Belt Shot Blasting Machines, Tumble Belt Shot Blasting Machines, Drum Type Shot Blasting Machines, Rotary Barrel Shot Blasting Machines, Continuous Flow Shot Blasting Machines, Continuous Loop Belt Conveyor Through Blast Machines

Overhead Rail Shot Blasting Machines (Hanger Type Shot Blasting Machines, Spinner Hanger Shot Blast Machines, Overhead Monorail Shot Blast Machines, Hanger Pass Through Type Shot Blast Machines)

Tube and Bar and billet Blasting Machines (Internal and external wall of Steel Pipe Shot Blasting Machines , Cylinder Shot Blasting Machines , Round Bar Shot Blasting Machines, Square Billet Shot Blasting Machines)

Roller Conveyor Shot Blasting Machines For Profiles, Sheet (Steel Structure Shot Blasting Machines, Horizontal And Vertical Steel Plate Shot Blasting Machines, Steel Plate Pretreatment Line, Steel Strip Shot Blasting Machines, Marble / Stone Shot Blasting Machines, Aluminum Profile Shot Blasting Machines , Floor Tiles Shot Blasting Machines )

Wire Rod Shot Blasting Machines (Single & Multistrand Longitudinal Blast Machines)

Rotary Bogie Table Shot Blasting Machines / Satellite Turntable Shot Blasting Machines

Wire Mesh Belt Shot Blasting Machines

Portable Shot Blasting Machines (Road Surface Shot Blasting Machines , Bridge Floor Shot Blasting Machines, Tunnel Shot Blasting Machines, Pipeline Shot Blasting Machines)

Marble / Concrete Block Shot Blasting Machines Roll Texturing Etching Machines

Spring Shot Blasting Machines Leaf Spring Shot Blasting Machine , Crank Axle Shot Blasting Machine , Link Rod Shot Blasting Machine Special Shot Blasting Machines (Closed Circuit Blasting Machines, Saw Blade Shot Blasting Machines, Robot Shot Blasting Machines, Squirrel-Cage Shot Blasting Machines)


6. The equipment mainly consist of several functional parts: Main and rear cleaning room, shot blaster, transmit system, pill skating pipe, bucket elevator, separator, pill blow system, anti-dust system, electric control system.

1	Blast Wheel / turbine
2	Shot blasting chamber / cleaning room
3	Screw conveyor
4	Bucket Elevator
5	Separator
6	Flow adjusting device / pill skatin pipe
7	Dust removing pipe
8	Dust collector
9	Access Guide Device / pill blow
