Wenzhou Zhuding Machine Co., Ltd. >> CE Standard Color Printing Machine (WQY-61000)

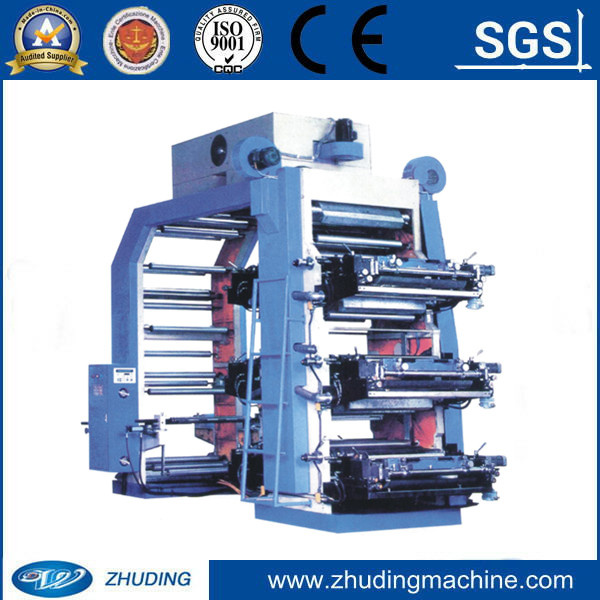

CE Standard Color Printing Machine (WQY-61000)

Name: CE Standard Color Printing Machine (WQY-61000)
Brand: china-manufacturer-directory.com
SKU: 706626875
Availability: InStock
Rating: 4.7 (144 reviews)

Supplier:	Wenzhou Zhuding Machine Co., Ltd.
Price:	US $ 12000-13000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	WQY-61000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Delivery Time:	Within 1 Month After 30% Deposit
Port:	Ningbo/Wenzhou
Dimensions(LWH):	2.52.62.4m
Gross Power:	30kw
Anilox (Ceramic Is Optional):	Special for Non Woven Fabric
Drying Methods:	Electric Control
Landing Version Of The System:	Pneumatic
Color & Page:	Multi-Colour Printing Press
Structure:	Rotary Letterpress

Product Description

Non Woven Fabric Printing Machine
Characteristics:
1. Adopt the anilox roller to spread ink.
2. Unwinding and rewinding are controlled by magnetism power brake, clutch. (or by automatic tension controller of mitsubishi, made in Japan).
3. Printing unit adopt 360 for registration.
4. Printing unit have one infrared to dry the device group each.
5. The rubber roller can break away from automatically while parking, and running at a low speed, in order to avoid water being black to be dry.
6. The main motor is adopted the import stepless regulation of frequency conversion.
7. Unwinding, printing, varnishing, IR drying, laminating and rewinding can be finished in one process, this kind of printing machine is best for each printing companies to print on adhesive-paper labels

Flexo printing machine Printing color	4-8
Printing width	1200mm
Material width	1250mm
Printing length	1200mm
Landing version of the system	pneumatic
The maximum mechanical speed	120m/min
The maximum printing speed	80-150m/min
Anilox (ceramic is optional)	Special for Non woven fabric
Registration accuracy	L=0.05-0.15 T=0.15-0.2
Unwinding roll diameter	600mm
Rewinding diameter	800mm
Winding and rewinding paper core	3" -6"
Drying methods	Electric control
Drying Power	16-24kw
Big blower	1.5kw*2
Small blower	1.1kw*2
Main Motor	3.7kw
Gross power	30kw
Main Frequency	3.7kw
Mechanical dimension	2.52.62.4m

Wenzhou Zhuding Machine Co., Ltd. (Wan Qun Industrial Company Limited) is an enterprise which was recognized by the state, gathering scientific research, manufacturing, sales, import and export business as a whole.
The company was founded in 1995, All employees through the unremitting efforts of 17 years, now has developed to the factory covers an area of 25, 00 square meters, 80 workers.
Our company specializes in manufacturing Non woven fabric production line, non woven bag making machine, rice bag cutting and sewing machine, laminating machines, flexographic printing machine, film blowing machine, shopping bag making machines etc plastic machinery equipment. Products have sold throughout the country, as well as Turkey, Mexico, Brazil, Zimbabwe, Russia, Vietnam, Indonesia and other overseas countries and regions.
We will, as always, adhere to the "Credit creates benifits, quality produces life" purposes. Company president Mr Zhu QingRong and G. manager Mr Ye Michael with all the staff sincerely hope to have a pleasure cooperation with customers both at home and abroad in the future.
