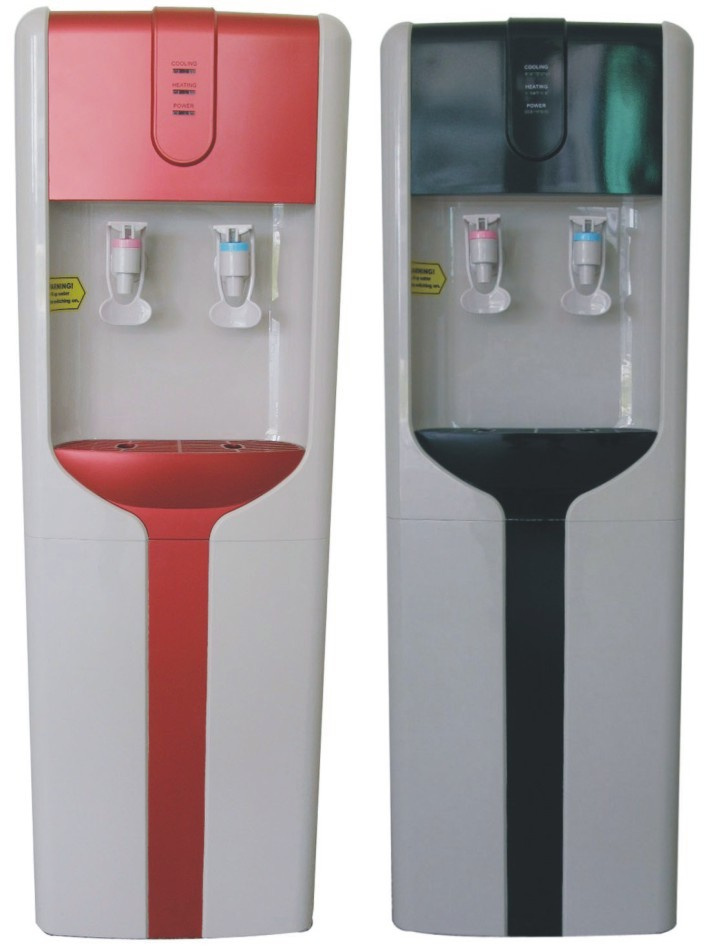

Floor Standing Water Dispenser YLR2-5-X(162L)
Remarks of Floor Standing Water Dispenser YLR2-5-X(162L)
The Water Dispenser use R134A Compressor Cooling
1. Cook and Cold type is avaiable
2. Adopt the material met food safety requirement, hygienic and safe;
3. Both hot and cold tanks are made of high quality SS304 stainless steel
4. Regular hot tank size 1.2 liter, cold tank size 3.8 liter (hot and cold tank size can be made as per customer's special request)
5. Inside heater or outside heater or re-heating function is optional
Mode
|
YLR2-5-X(162L)
|
AC Voltage
|
220V/50HZ or 110V/60HZ
|
Cooling Power(W)
|
112
|
Heating Power(W)
|
500
|
Cooling Capacity(L/H)
|
≤ 10 º C 2L/H
|
Heating Capacity(L/H)
|
≥ 90 º C5L/H
|
Energy Consumption
|
1.65kW. h/24h
|
Working Ambient
|
10 _ 38 º C
|
Electric Shock Protection Type
|
I
|
N. W. (KGS )
|
17
|
G. W. (KGS )
|
18.5
|
Unit Meas. (MM)
|
310X310X960
|
Regular Packing Meas. (MM)
|
370X380X100
|
Simple Packing Meas. (MM)
|
330X340X100
|
1*20 ′ (PCS) Regular Packing
|
180
|
1*40 ′ (PCS) Regular Packing
|
384
|
1*40 ′ (PCS) Simple Packing
|
490
|
ShenZhen J&D Drinking Water Equipment Co., Ltd. is China's leading manufacturer of bottling equipment and supply the global market with a complete range of bottling equipment and accessories.
J&D Water with fixed assets of over 80 million $ u. s. and a global turnover of over 500million $u. s. employ 1500 staff in the design, manufacture and sales of their range of bottling equipment. The total manufacturing and administration area owned by J&D is over 70, 000 sq meters.
J&D Water are ISO9001 approved and all of the equipment manufactured by J&D is manufactured to the following standards CE, TUV, GS, ETL, UL, SASO, RoHS and CSA.
J&D Water operates a program of continuous improvement in the design and quality of their equipment and where appropriate utilizes advanced filling technologies from Germany, USA and Italy.
J&D Water can supply the following equipment:
* water dispensers, water filtration systems and all associated equipment required for a bottling factory including bottle blowing, labeling and packaging equipment.
*3000-36000BPH mineral water & pure water processing and filling lines;
*3000-36000BPH fruit juice & hot drinks filling lines;
*100-2000BPH 5 or 3 gallon bottling lines;
*2000-36000BPH carbonated drink processing and cold filling lines;
*1000-8000BPH vinegar, wine, oil filling and packing lines;
* A full range of water treatment equipment.
With world leading technologies and a program of continuous improvement, all the products supplied by J&D Water have gained a good reputation from their global customer base. J&D have exported bottling and associated equipment to the USA, UK, Ireland, Canada, Australia, Mexico, Russia, Africa, the Middle East area etc for over 10 years. J&D Water can assist with factory layouts and can also provide a full installation and technical back up service.
