Shanghai Bojin Business Development Co., Ltd. >> Ceiling Cassette Type Fan Coil Unit (CE Certified) (H type)

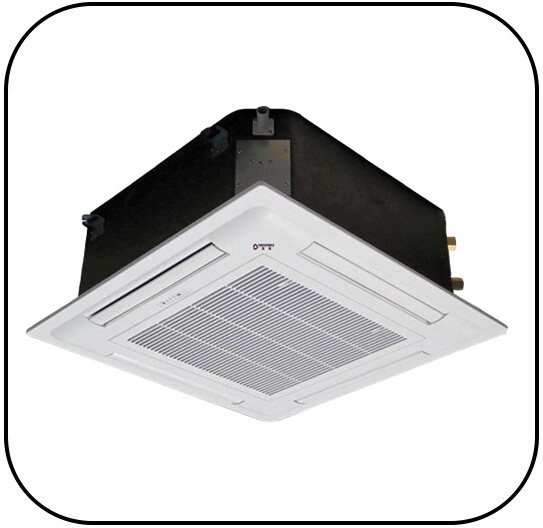

Ceiling Cassette Type Fan Coil Unit (CE Certified) (H type)

Name: Ceiling Cassette Type Fan Coil Unit (CE Certified) (H type)
Brand: china-manufacturer-directory.com
SKU: 676343762
Availability: InStock
Rating: 4.6 (110 reviews)

Supplier:	Shanghai Bojin Business Development Co., Ltd.
Price:	Negotiable/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	BJFP-34KM4H(H type)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	220V/1phase/50Hz
Operation Type:	Manufacturer
Others Resources:	OEM&ODM
Usage:	for Manufacture
Cooling Method:	Direct Cooling
Certification:	CE
Type:	H Type
Electric Current Type:	AC Standard, DC/Ec Optional
Mounting:	Ceiling

Product Description

Advantages:

As a research-driven and customer-focused company, Shanghai Bojin provides a broad
and integrated portfolio of service, which is designed to offer our worldwide customers
with the top quality at reasonable price and shorten the time and the cost of purchasing.

Model				BJFP-34KM4H	BJFP-51KM4H	BJFP-68KM4H	BJFP-85KM4H	BJFP-102KM4H	BJFP-136KM4H	BJFP-170KM4H		BJFP-204KM4H	BJFP-238KM4H
Air Volume	H	m3/h		340	510	680	850	1020	1360	1700		2040	2380
	M			280	380	515	660	765	1040	1280		1550	2000
	L			180	260	340	430	530	710	860		1050	1600
Cooling Capacity	H	w		1800	2700	3600	4500	5400	7200	9000		10800	13600
	M			1500	2460	3000	3715	4423	6435	7848		9296	12780
	L			1391	2057	2479	2921	3739	5604	7223		8534	11775
Heating Capacity	H	w		2700	4050	5400	6750	8100	10800	13500		16200	21615
	M			1949	2770	3938	4902	5694	7924	10473		12997	19919
	L			1297	1774	2779	3505	3876	5421	6992		8645	17656
Noise Level	H	dB (A)		37	39	41	43	45	46	48		50	51
Power	H	w		37	52	62	76	96	134	152		189	205
Water flow	m3/h			0.31	0.46	0.62	0.77	0.93	1.23	1.54		1.85	2.35
Water resistance	kPa			11.8	11.8	22.4	27	29.6	29.6	35.4		35.4	42.2
water tube connection(inlet)				ZG3/4"

water tube connection(outlet)				ZG3/4"
Coil			Type	Efficient Copper tube wear hydrophilic aluminum fin
Condensing Drain pipe size			mm	26
Dimension				590590270			752752293		822822263		822822293
				590590420			752752443		822822403		822822443
				65065045			85085045		95095045
N.W(kg)				19		20	23	23	25		28
				19		20	26	26	28		31
				2.2			4.5				6

Founded in 2000, Shanghai Bojin Business Development Company (Persistence) is a member of Hong Kong Armada international group, a professional Heating, Ventilation and Air Conditioning (HVAC) enterprise, owned high reputation in domestic and abroad markets. Our services are designed to help our worldwide customers with more reliable product and efficient cooperation.

BOJIN(Persistence ) headquarter office sets up in China financial center Shanghai and the factory is located at zhengjiang Provience. Factory area is around 30, 000m2, with 10 assembly lines, 8 accessory production lines. BOJIN (PERSISTENCE)possesses completed air conditioner industry chain with more than 200 employees. In addition to Bojin(Persistence) own brand products, we also accept large quantity of ODM and OEM order yearly.

Bojin(Persistence) product range is:

Fresh Air System(Heat Recovery Ventilator/ Recuperator):

A. Ceiling total heat exchanger unit

B. Vertical total heat exchanger unit

C. Energy saving ceiling type air handling unit

D. Energy saving horizontal type air handling unit

E. Energy saving vertical type air handling unit

F. Modular type total heat exchanger unit

G. Rotary type total heat exchanger unit

H. Integration Heat Pump Type Heat Recovery Unit(Horizontal)

I. Duct fresh air dehumidifier (Industrial use)

J. Ceiling concealed fresh air dehumidifier (Room use)

K. General ventilators

HVAC System(Water chilled / Hydronic / Terminal unit / Heat Pump):

A. Ceiling cassette fan coil unit with 3 kind of different air outlet: One way, four way, circulation way

B. Universal fan coil unit with 6 type for choice

C. Duct fan coil unit

D. High wall mounted fan coil unit

E. Standard air handling unit with ceiling type/vertical type/horizontal type

F. Modular air handling unit

G. Water loop heat pump

VRV/VRF Central Air Conditioning System

A. Daikin

B. Hitachi

C. LG

D. Fujitsu

E. Mitsubishi Electric

Accessory:

A. Thermostat

B. Valve

C. CO2 controller

D. Air diffuser

Welcome your inquiry at any time!
