Jiangsu Chuanglan Solar Air Conditioner Co., Ltd. >> Ceiling Cassette Type Solar Powered Solar Air Conditioner

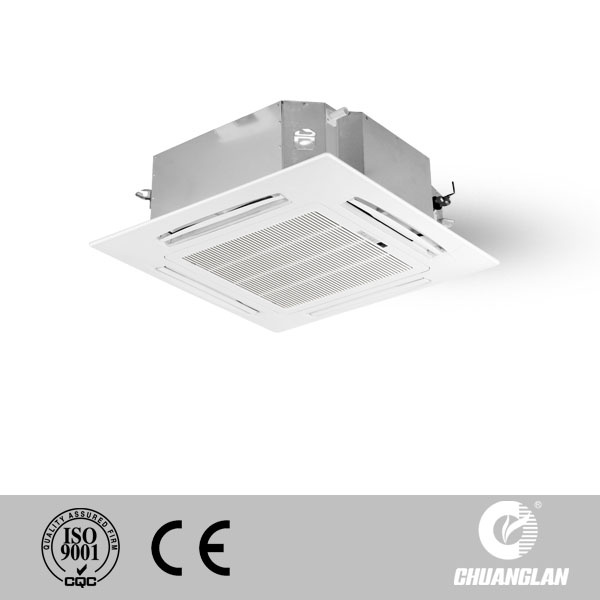

Ceiling Cassette Type Solar Powered Solar Air Conditioner

Name: Ceiling Cassette Type Solar Powered Solar Air Conditioner
Brand: china-manufacturer-directory.com
SKU: 700639962
Availability: InStock
Rating: 4.9 (44 reviews)

Supplier:	Jiangsu Chuanglan Solar Air Conditioner Co., Ltd.
Price:	US $ 850-880/Set
Min Order:	10/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	TKFR-60QW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling Capacity:	20000BTU
Eer:	3.8
Compressor Brand:	Hitachi
Energy Saving:	30-50%
Air Circulation:	800m³/H
Type:	Central Air Conditioners
Capacity:	18000-24000 BTU
Usage:	Room
Indoor Machine Noise:	24-35dB
Certification:	MEPS
China Energy Efficiency Standard:	Level 1
Cooling/Heating:	Cooling/Heating
Power Source:	Electrical
Power Type:	AC
Condition:	New

Product Description

Feature:

1.World famous brand compressor
2.LED display
3.100% copper pipes ensures the strong cooling capacity.
4.Washable anti dust air filter
5.With remote control
6.EER:Above class 1
7.Easy installation, similar to normal air conditioner
8.Energy saving at least 30% comparing to normal air conditioner.
9.Enviornmently friendly gas

Why it saves energy compared with normal air conditioner?

Chuanglan hybrid solar air-conditioner is driven by electricity and with solar energy as an auxiliary power. The two kinds of energy work complementally in accordance with principles of fluid dynamics. It combines the absorption working system to compression system by using environmental-friendly media in cooling and heating on the basic of traditional air-conditioner technology to achieve energy-saving and environment protection.

Compare to current products:
1. Conventional air conditioner consumes too much, users have to pay a heavy electricity bill.
2. Photovoltaic (PV) system costs a large amount of money to build up.
3. Thermally driven absorption cooling is also a very costly, and its cooling capacity is not big enough.

Model No.			TKF(R)-60QW	TKF(R)-72QW	TKF(R)-100QW	TKF(R)-120QW	TKF(R)-140QW
Power Supply:220-240VAC, 1PH, 50Hz
Performance
Capacity	Cooling	Btu/h	20000	24000	36000	41000	48000
	Cooling	W	6000	7200	10000	12000	14000
	Heating	Btu/h	22000	27000	40000	46000	55000
	Heating	W	6600	7900	12000	14000	16000
Noise	Indoor	dB(A)	≤45	≤49	≤49	≤50	≤50
Noise	Outdoor	dB(A)	≤56	≤58	≤58	≤60	≤60
Air Circulation		m³/h	800	1250	1700	1800	1900
Suitable Area		m²	25~42	30~48	42~67	50~80	58~93
EER		W/W	3.88	3.82	3.87	3.96	3.87
EER		Btu/h/w	13.24	13.03	13.2	13.51	13.2
Power Consumption
Power Input	Cooling	W	1350~1560	1700~1900	2400~2640	2900~3150	3500~3740
Power Input	Heating	W	1350~1590+350	1700~1950+350	2470~2650+350	2900~3180+350	3500~3760+350
Rated Current	Cooling	A	6.14~7.09	7.73~8.64	10.91~11.95	13.18~14.32	15.91~17
Rated Current	Heating	A	6.14~7.23+1.6	7.73~8.66+1.6	11.23~12.05+1.6	13.18~14.45+1.6	15.91~17.09+1.6
Vacuum Tube	DiameterLengthPcs		47mm620mm11	47mm620mm11	47mm700mm13	47mm1200mm13	47mm1200mm13
Dimensions
Indoor Unit	Net	mm	640640280	850850250	850850250	850850280	850850280
Indoor Unit	Shipping	mm	680680320	890880290	890880290	890880320	890880320
Panel	Net	mm	65065060	96096060	96096060	96096060	96096060
Panel	Shipping	mm	730750130	10101010110	10101010110	10101010110	10101010110
Outdoor Unit	Net	mm	850300755	940300755	950355835	9503551255	9503601255
Outdoor Unit	Shipping	mm	950400770	990400770	1140460910	11404601340	11404601340
Water Tank	Shipping	mm	980400370	980400370	1105400325	1120400400	1120400400
Vacuum Tube	Shipping	mm	980400370	980400370	765280205	1270280210	1270280210
Weight
Indoor Unit	Net/Gross	kg	28/34	28/34	30/45	53/57	53/57
Outdoor Unit	Net/Gross	kg	50/52	55/58	73/76	95/100	97/102
Solar Collector	Net/Gross	kg	16/17	16/17	18/21	23/26	23/26
Loading Qty	in 20feet	sets	44	36	31	22	22
Loading Qty	40HQ	sets	106	88	75	53	53

Company Information

Founded	August,2006
Main Products	Hybrid Solar A/C, Air Purifiers, Dehumidifiers
Factory Area	21 Thousand M2
Subsidiary Company	Suzhou Sunsnow New Energy Technology Co. Ltd
Annual Sales (Year 2014)	17.8million USD
Staff	300
R& D	10
Quality Staff	10
Products Line	3
Products Capacity	500 Thousand units /year

Our Services

Warranty: 1year machine+ 3 year compressor+1% spare parts
Professional engineers team will serve for you if any question.

Jiangsu Chuanglan Solar Air Conditioner Co., Ltd. Established in Aug. 2006 with a registration capital of 2.99million US dollars, is a company focusing on solar energy exploitation and utilization. It is a professional enterprise with R&D team, production line and sales team on environmental friendly products, energy saving products and air purifying products with the support of its engineers, advanced production equipment and laboratory. It's an outstanding manufacturer in the world with high technology, big production capacity, wild product range and strong competitiveness on domestic solar assisted air conditioners, commercial solar assisted air conditioners, atmospheric water generators, air purifiers and dehumidifiers.

Chuanglan includes one head office and one subsidiary company Suzhou Sunsnow. Its head office locates in New Technology Industrial Development Zone of Chuangshu City, where is with full access to development opportunities. It has more than 80 patents at home and abroad, total access is over 12.9million US dollars at present, and has been selected as Wal-Mart's qualified supplier in Jan 2014. With a land of 21, 000 square meter and a plant of over 22, 000 square meter, equipped with 3 automatic production lines and research and testing facilities, Chuanglan is able to produce 500, 000 units annually. Thus, Chuanglan is the only manufacturer with research and development ability, production line and sales team on hybrid solar air conditioner industry, whose annually turnover is 32million US dollars. Thanks to its R&D ability and production capacity, It has been successfully marketing its products to over 130 countries. Chuanglan has made a big leap in a few years.

Aiming at becoming the top company in the clean energy development and usage area, Chuanglan considers solar air conditioner as its core product, and produces air purifiers, dehumidifiers, solar water heaters, atmospheric water generators and high energy water drinking machines at the same time. A technical, industrialization and internationalization Chuanglan is growing rapidly.
