Product Specifications
| Prod Model: |
Ceiling Filtering |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thickness: |
22mm |
| Rated Air Velocity(M/S): |
0.3 |
| Usage: |
Industry |
| Certification: |
ISO |
| Purifying Technology: |
Filter |
| Type: |
Filtering |
Product Description

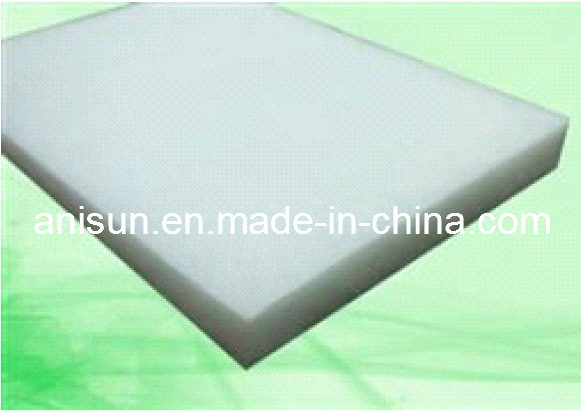

Ceiling Filtering Cotton for Paint Booth
· Low initial resistance
· Large dust holding capacity
· Flexible
· Outlet side with net or cloth mesh to reinforce
Application: Capturing 1-10μ M particles,
Especially for the top part of spray booth,
Prefiltration mesh to reinforce through air
Filter system, diffluent equally
Type: Supply pads or rolls size
Media: Synthetic fiber with gradual density,
Surface of inlet side with adhesive treatment
EN779 class: F5
Average arrestance: 96%(ASHRAE52.1-1992)
Average efficiency: 45%-55 %(ASHRAE52.1-1992)
EUROVENT4/5 class: EU5
DIN53438 Non-flammability Standard: F1
Final resistance: (suggested) 400PA
Max. Dust holding capacity: 450g/
Temperature resistance: 100C
Instant temperature: ≤ 120C
|
Type |
Dimensions |
Rated air velocity(m/s) |
Initial pressure drop (Pa) |
Rated air flow(m2/h) |
|
Length(m) |
Width(m) |
Thickness(mm) |
|
Rolls |
14/21 |
1.6/2 |
22 |
0.30 |
38 |
1080 |
