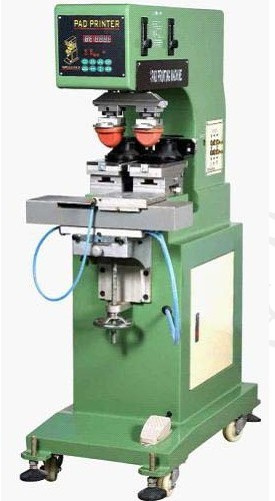

Sealed Ink Cup Pad Printing Machine adopt tungsten steel doctor blade which is HCR63 degree hardness, With high wear resistance, it can friction nearly 300 million times, more fuel-efficient and more environmentally.
It can be used for 1 or 2 color pad printing one time, it has precise shuttle for good color-process. Applicable for printing flat & round surface, such as cell phone button, golf, toy, pens, PC mouse, and small electronic accessories etc. It is easy to operation and maintenance, convenient to replace ink, cleaning ink tray.
Main Features:
1. Advanced computerized system control
2. Pneumatically driven adopt from FESTO, can adjust the movement speed of each part
3. Built-in LED digital counter
4. Emergency stop system to ensure the safety of operator
5. Light-weight, strong aluminum cast machine frame
6. Ink trays, work table and pads are independently adjustable for easy color registration
7. Speed, pad and printing stroke are easily adjustable for different printing requirements
8. Ink tray, doctor blade, brush and pads are easily installed and dismounted for quick cleaning
9. The ink cup promote by cylinder, can be slide more smoothly
Specifications:
Operation: Semi-Automatic
No. Of color: 2 color (can be color-process)
Working station: 1PCS
Working table area: 165× 125mm
Standard plate area: 100× 200mm
Ink cup diameter: 60 mm\90mm (Optional)
Max printing speed: 1300 PCS/Hr
Power voltage: 220V/50Hz
Power consumption: 35 W
Air pressure: 6 Bar
Air consumption: 110 Liter/Min
Machine dimension: (L× W× H)810× 450× 1370mm
Machine weight: 110Kg
We, Hangzhou Taoxing Printing Machinery Co., Ltd. is one of the leading companies of screen printing machine in China, specializing in silk-screen and related equipment, such as planographic silk-screen presses, curved surface silk-screen presses, inspiratory manual screen printing machines, large-sized orbit silk-screen presses, plate copying apparatus, ovens, UV solidify machines, and dragnet machines.
We are enjoying good reputation due to our strong ability, professional staff and perfect after service. Recently, with our continuous efforts, innovations and rigorously quality control, we have received increasing orders from all over the world.
