Product Specifications
| Prod Model: |
F3423 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port Structure: |
Modular |
| Network: |
WCDMA |
| Transfer Rate: |
7.2Mbps |
| Ports: |
≤4 |
| Firewall: |
Firewall |
| Application: |
Enterprise |
| Type: |
Wireless |
Product Description
A. Wireless Specification
1. UMTS/WCDMA/HSDPA/HSUPA 850/900/1900/2100MHz
2. Quad-band EGSM 850/900/1800/1900MHz
3. GPRS/EDGE CLASS 12
4. HSUPA: 5.76Mbps(UL) / HSDPA: 7.2Mbps(DL)/UMTS: 384kbps(DL/UL)
5. EDGE: 236.8kbps(DL/UL)
6. GPRS: 85.6Mbps(DL), 42.8Kbps(UL)
B. Hardware System
1. Industrial high-powered 32bits CPU, 300M
2. FLASH: 4MB (Extendable to 16MB)
3. SDRAM: 16MB (Extendable to 64MB)
4. E2PROM: 64KB
5. Interface:
10/100M Ethernet Port
RS232 serial port (Support RS422/RS485 if needed), rates: 110~230400bits/s
Indicator lights: "Power", "Online", "Alarm", "System", "Link/ACT"
Antenna interface: Standard SMA female interface, 50 ohm
SIM/UIM interface: Standard user card interface
Power interface: Standard 3-PIN power jack
Reset button: Restore the router to its original factory default settings
6. Power supply:
Standard power supply: DC 12V/1.5A
Power range: DC 5~35V
7. Wireless module: High-powered industrial WCDMA/HSDPA/HSUPA module
8. Size: Outline dimension: 157x97x25 mm
9. Weight: 870 g
10. Others:
Operation temperature: -25~+65ºC
Storage temperature: -40~+85ºC
Humidity: 95% (unfreezing)

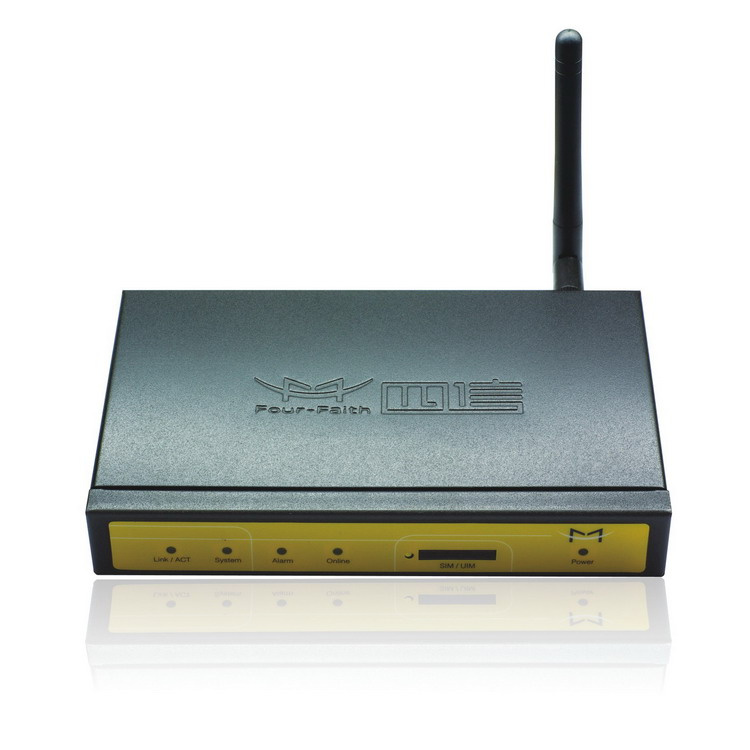

F3423 WCDMA/HSDPA/HSUPA router adopts high-powered 32bits CPU and embedded real time operating system. It integrates all the commonly used protocols from logical link layer to upper application layer, such as TCP/IP/UDP and so on. And it supports static and dynamic route, PPP Client and PPP server, VPN client(PPTP, L2TP, IPSEC and GRE)(only for VPN version), DHCP server and client, DDNS (dynamic DNS), firewall, NAT and DMZ host. It provides a secure, high speed, reliable wireless Internet connection for customers. This product has been widely used on finance, water supply, environment protection, electric power system, post and weather fields.
Software function
1. Support VPN client(PPTP, L2TP, IPSEC and GRE)(only for VPN version)
2. Support auto recovery mechanism, including online detect, auto redial when offline to make router always online
3. Support firewall and packet filter
4. Support multi protocols, such as TCP/IP, UDP, ICMP, SMTP, HTTP, POP3, OICQ, TELNET, FTP, SNMP, etc.
5. Support dynamic and static route
6. Support DHCP server
7. Support NAT, such as SNAT, DNAT etc.
8. Support dynamic DNS (DDNS)
9. Support DMZ host
10. Support route transmission, data communication by serial port. Support data service center management
11. Support VPN/VPDN network
12. Support WEB configure (local and remote)
13. Support telnet management and console
14. Support switch interface to make multi terminals sharing router's wan connection
15. Support multi WAN dial method, including auto allocated IP, specifying local IP, specifying local and remote IP
16. Can be used as PPP server. Support multi authentication method, such as PAP, CHAP, CHAP-MS, CHAP-MSV2
17. Support multi debug method, such as web, console debug and SYSLOG etc.
18. Support firmware upgrade by console
19. Support firmware upgrade by TFTP
20. Support online/offline trigger control by SMS, telephone ring and data from COM and ethernet port.
21. Support multi OS, such as WINDOWS, LINUX, SCO UNIX etc.
Enhanced function: (optional)
1. Support low-consumption mode, including sleep mode, scheduled online/offline mode, scheduled power-on/power-off mode
2. Support remote firmware upgrade.
3. Support remote configure by SMS
