Introduction
Load cell applies testing machines, platform scales, hopper and vessel weighing, truck scales etc.

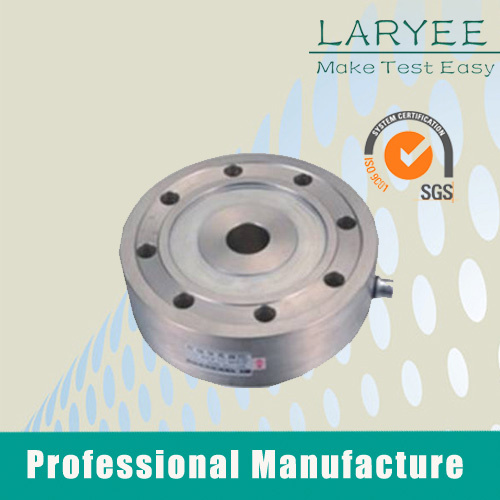

A low profile design that makes PSD the most suitable application concerning critical height for safety reasons. The shear web design provides excellent performance even when side forces are inevitable in normal operations. The typical example for side force resistance is the application in motor truck scales. PSD is constructed of alloy steel and is fully potted with special chemical compounds to IP67 to protect the cell from water and moisture attack.
Feature
Capacities: 0.5, 1, 2, 5, 10, 20, 30 tons
Compact size with low profile
Low deflection for high output
Electroless nickel-plated alloy tool steel construction
Off center load compensated
OIML C3 available for whole series
Optional
PSD-SJTT and PSD-SJTH with different loading holes
|
Function |
Load Cell |
|
Capacity |
0.5 1 2 5 10 20 30 Tons |
|
Rated Output Tolerance |
3.0mv/V |
|
Safe Overload |
150% of R.C. |
|
Ultimate Overload |
300% of R.C. |
|
Excitation,Recommended |
10VDC or VAC RMS |
|
Excitation,Maximum |
15VDC or VAC RMS |
|
Construction |
Nickel-Plated Alloy Steel |
|
Environmental Protection |
IP67 |
|
Output |
Digital Sensor |
