Product Specifications
| Prod Model: |
QTJ4-40 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Funtion: |
Hollow Block, Solid Brick, Paver, Kurb |
| Pallet Size: |
850*550*25mm |
| Power: |
8.8kw |
| Branch In Africa: |
Nigeria, Kenya, Tanzania, Algeria, Ethiopia |
| Certification: |
ISO9001: 2000 |
| Automatic Grade: |
Cement Brick Block Making Machine Price |
Product Description

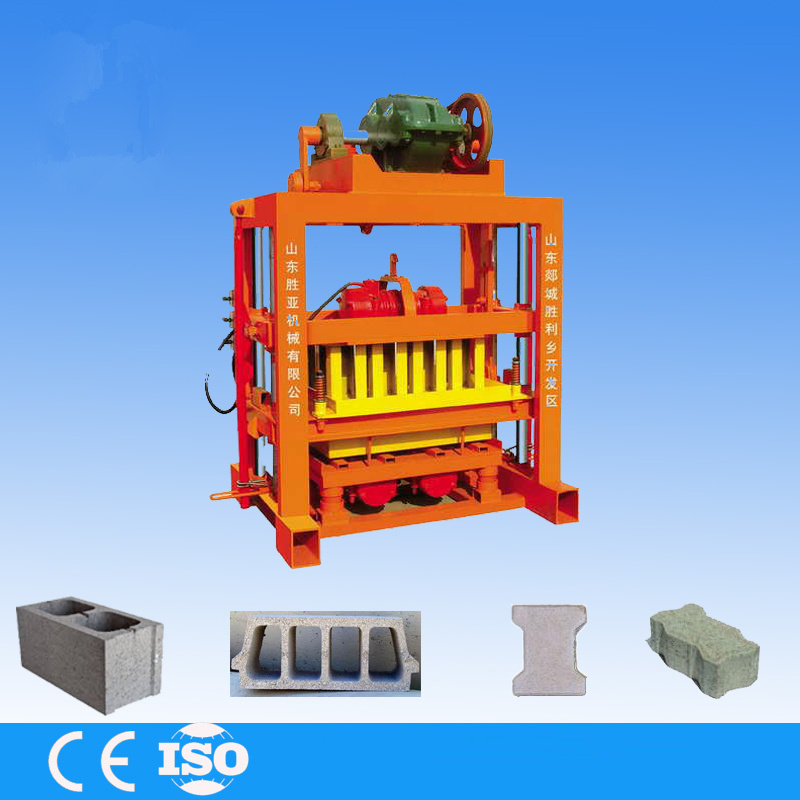

cement brick block making machine price for hollow block, solid brick, paver, kurb in construction machinery
| Information about factory |
my factory has 20 years history in manufacturing concrete block machine, paver machine, interlocking clay brick machine, pipe machine and concrete pole machine.
Now we have branches in the following countries and there are chinese engineer who help custoemrs install machine and train workers.
1. Lagos and Abujia in Nigeria
2. Nairobi in kenya
3. Dar les salaam in Tanzania
4. Alger, Algeria
5. Addis Ababa in Ehiopia
6. Douala in Cameroon |
Please contact Robin 0086-15318558805 () to get detailed information about my machine.
I: Advantage of cement brick block making machine price for hollow block, solid brick, paver, kurb in construction machinery
| Advantage | 1. Producing sizes of blocks and paver (without color face) by changing moulds
2. Easy operation, Low cost
3. Capacity is 2500pcs per day
4. The most popular machine in Africa |
II. Specification
Model | QTJ4-40 |
| Power | 8.8KW |
| Cycle | 40 Second |
| Pallet Size | 850*470*25mm |
| Machine Size | 1580*1100*2100mm |
| Weight | 1500kgs |
III. Capacity for Sizes of Blocks and Pavers
| 8inch hollow block 400*200*200mm | 2500pcs per day |
| 6inch hollow block 400*150*200mm | 3200pcs per day |
| 4inch hollow block 400*100*200mm | 3500pcs per day |
| Holland Paver 200*100*60/80mm | 1048pcs per day |
| Z Paver 225.112.5.*60/80mm | 960pcs per day |
| I Shape Paver 200*160*60/80mm | 960pcs per day |
IV: Material Ratio (take 400*200*200mm block as an example)
Block Strength(Mpa) | Cement (kg) | Sand and Stone (kg) | Quantity( 400*200*200) |
| 7.5Mpa | 100kg | 1700kg | 120pcs |
| 10.5Mpa | 100kg | 1250kg | 90pcs |
| 15Mpa | 100kg | 1025kg | 75pcs |
| 22.5Mpa | 100kg | 800kg | 60pcs |
| 30Mpa | 100kg | 605kg | 47pcs |
Please contact with Robin 0086-15318558805 () to get detailed information about cement brick block making machine price for hollow block, solid brick, paver, kurb in construction machinery
Shandong Shengya Machinery Co., Ltd has been specializing in design, manufacture and sale of Concrete Block Making Machines. With advanced equipments, excellent professional technology and 18-year of practical experience, R & D department in block making machine market development is always been at the forefront of market in the developing of Block Making Machines, Shengya is paying close attention to advanced technology at home and abroad, developing different products which are suitable to different investment needs from customers.
Main Machines are: Block making machine, hydraulic color figure brick machine, concrete pipe machine, mixer, etc...The company puts the new technology, new product R & D in the first place. 43 patents have been applied. The application of these new technologies ensures rationality, stability, reliability of machines, which have been praised widely by customers. Currently Shengya has been established 19 domestic agencies and 3 after-service sites abroad (the United Arab Emirates, Sudan, Angola) and exported to 32 countries and regions (mainly in Africa and the Middle East). Our Block Making Machine were purchased by Ministry of Commerce and donated to the Government of Democratic Republic of the Congo as machine in aid (Lot Number: 2004 322), and purchased by Government Procurement for rebuilding earthquake-stricken area in Tianshui City, Gansu Province. China Railway 20 Bureau Group Company Angolan Projects department, China Petroleum Seventh Construction Company Nigerian project department, Guangxi Hydroelectric Bureau Angolan project department, China CTDI Engineering Corporation Libyan project department, Sinohydro Bureau 13 company Zambia project department, Australian Pineneedle Group for projects in East Timor, they all purchased Shengya Block Making machines and set a nice and long-term relationship with us. The company insists to the people-oriented, quality first, focus on the development of the international market. All of these have certified the development course of building an enterprise through arduous effort, striving to make the enterprise prosperous, daring to win the first in making the first class by the Shengya people.
With the conception of high quality and high efficiency, Shengya keeps the ideal of making its customers to get max. Benefits, of going forward hand in hand to striving for developments together.
