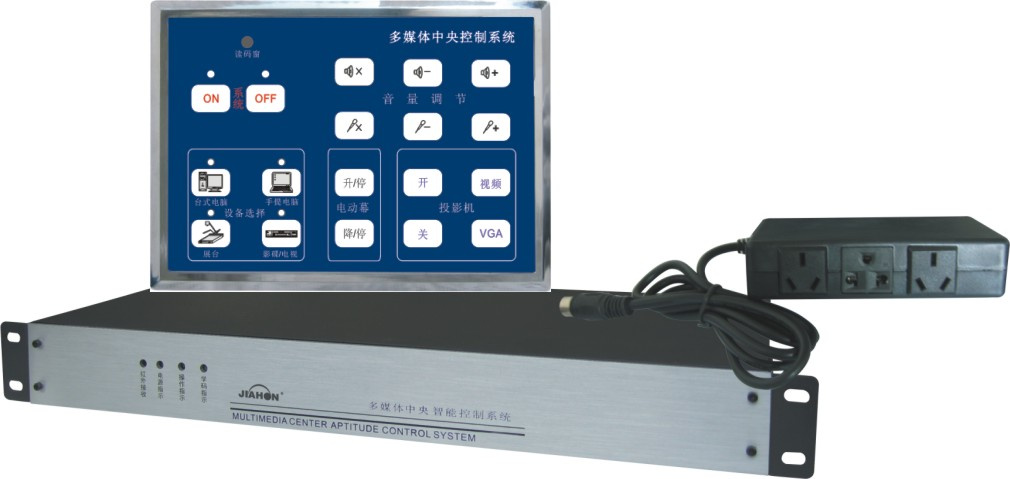

Separate central controller
C5500
Size:340×205×50 mm
1. built-in infrared learning function, no need to configure professional learning devices, adopting "one key with combination control function, supporting the use of computer' software and panel.
2. the control panel is made of ABS engineering plastics, water-proof and anti-static, totally 18 keys on the panel;
3. four-way independent programmable infrared emission interface, three-way MIC interface;
4. built-in 4x2 video/audio matrix, the bandwidth of the video frequency is up to 100MHz;
5. built-in 3x2RGB, with 400MHZ long-line driver, (with visualizer input);
One way programmable RS-232 control interface , can use RS-232 to control the projector; automatic time-delay for power turn-off, in order to better protect the life span of projector.
6. built-in three- way volume input, two-way volume adjustment function, the MIC and master volume can be controlled separately;
C++ edition control software, completely supporting Window9x/2000/XP/NT operating system; built-in several RS-232 control code for projector;
7. With network function, can realize remote control of all multimedia equipment in the classroom, and display working condition intuitively, remotely recording the service time of projector;
With built-in intelligent alarm system, (optional);
8. there is a power control for electronic projection screen in the control box, two-way power control for equipment (two-way for equipment, one way for projector) Adopting professional power, input 12V/2A, the capability is more steady.
9. perforation dimension: 161mm×111mm
10. Control host dimension: 340×205×50 mm
