Product Specifications
Product Description

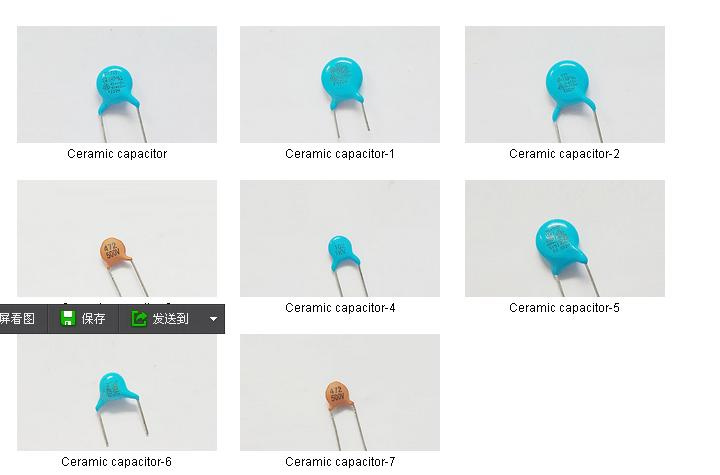

Product name: Ceramic capacitor Introduction:
Part Numbering System
CLASS
(I)CodeCC1CC81Rated Voltage50V ~ 500V≥ 1KV1.2 (II)CodeCT1CT81CT7Rated voltage50V ~ 500V≥ 1KVX1Y1/X1Y21.3 (III)CodeCS1Rated Voltage16V ~ 50V2. Diameter Code0405060708091011121314151618D± 1(mm)4.05.06.07.08.09.010.011.012.013.014.015.016.018.03. Lead StyleCodeabcde
4. Temperature Characterigtics
4.1 Class ICodeNP0
(C)N150
(P)N220
(R)N330
(S)N470
(T)N750
(U)P350 ~ N1000
(SL)4.2 Class II\ Class IIICodeY5P (2B \ BN)Y5R (2R)Y5U \ Z5U (2E)Y5V \ Z5V (2F)5. Capacitance Code0R51R0100101102103104Capacitance0.5pF1pF10pF100pF1000pF0.01UF0.1UF6. Capacitance ToleranceCodeCDJKMZCap. Tolerance± 0.25pF± 0.50pF± 5%± 10%± 20%+80%-20%Applicable Capacitance Range≤ 5pF≥ 5pF7. (UR) Rated Voltage
DC: From 16V to 15KV AC: X1Y1 X1Y2
8. Package Type CodeBTPacking style Taping Specification
Straight leads ItemCodeValue (mm)Pitch of componentP12.7 ± 1.015.0± 1.0Pitch of sprocket holeP012.7± 0.315.0± 0.3Lead spacingF5.0 +0.8 -0.27.5+0.8-0.2Length from hole center to component centerP26.35± 1.07.5± 1.0Length from hole center to leadP13.85± 0.73.75± 0.7Body diameterDSee the individual product specificationDeviation along tape, left or rightS0± 1.0Carrier tape widthW18.0± 0.5Position of sprocket holeW19.0± 0.5Lead distance between reference and bottom planesH20 +1.5-1.0H016 +1.0-0.5Diameter of sprocket holeΦD04.0± 0.2Total tape thicknesst10.5± 0.2Total thickness, tape and lead wiret21.5maxHold down tape positionW21.5+1.5 -0Deviation across tapeh0± 1.0
