Product Specifications
| Prod Model: |
ST, HA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shape: |
Ceramic Fiber Moudle |
Product Description

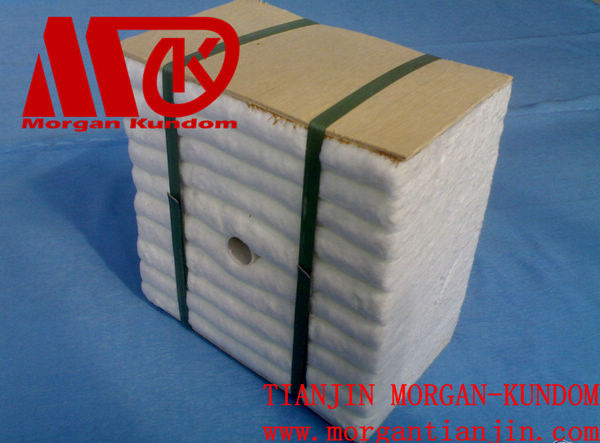

CERAMIC FIBER MODULE are manufactured from ceramic fiber blanket to provide two standard construction forms, edge-stacked or folded. These prefabricated anchored modules are specifically designed to meet the thermal insulation requirements of industrial furnaces, kilns and heaters.
Product Property
1. Low thermal conductivity & heat storage
2. High temperature stability
3. Resistance to thermal shock & chemical attack
4. To be secured by concealed anchor
5. Greater mechanical strength
6. Resistance to gas flow erosion
7. Shorter heat up and cool down time
8. Flexible and easy to cut or install
9. Selection of attachment designs
10. The expansion of module make furnace lining be seamless and can make up the shrinkage of fiber furnace lining to improve heat insulation
11. Excellent tensility, after the construction of furnace lining is completed; The module is at the pre-compressed state;
12. Lightweight & Asbestos free
Typical Application
1. Insulation of furnace lining in petrochemical industry
(Heating, Reformer, Cracking Furnace)
2. Insulation of furnace lining in metallurgy industry
3. Insulation of furnace lining in ceramics (Shuttle kilns, Tunnel kilns, Kiln cars)
4. Insulating of furnace lining in glass industry
5. Insulation of furnace lining for heat treatment furnace in heat treatment industry
6. Material of furnace lining for Heating, Forging, Annealing Furnaces
7. Iron and Steel Industry: Reheating furnace, Multi and single stack coil annealing furnaces, Transfer ladle lids, Continuous annealing and coating furnaces, Roll furnace.
8. Waste heat recovery units, Combustion Chambers, Boiler ductwork
Size(mm) 600*240-300*100-200(without anchoring parts)300*300*250(with anchoring part); According to you request
|
Specification |
|
|
|
|
|
|
|
Type |
|
|
|
|
|
|
|
|
Item |
COM |
ST |
HP |
HA |
ZA |
Hz |
|
|
Classification Tem. ( C ) |
1100 |
1260 |
1260 |
1360 |
1360 |
1430 |
|
|
Working Temperature(C) |
<1000 |
1050 |
1100 |
1200 |
1200 |
1350 |
|
|
Bulk Density kg/m³ |
220± 15 |
220± 15 |
220± 15 |
220± 15 |
220± 15 |
220± 15 |
|
Chemical content% |
AL2O3 |
42-44 |
45-46 |
47-49 |
52-55 |
45-46 |
39-40 |
|
|
AL2O3+SIO2 |
96 |
97 |
99 |
99 |
- |
- |
|
|
AL2O3+SIO2+ZrO2 |
- |
- |
- |
- |
99 |
99 |
|
|
ZrO2 |
- |
- |
- |
- |
5-7 |
15-17 |
|
|
FeO3 |
<1.2 |
<1.0 |
0.2 |
0.2 |
0.2 |
0.2 |
|
|
Na2O+K2O |
≤ 0.5 |
≤ 0.5 |
0.2 |
0.2 |
0.2 |
0.2 |
