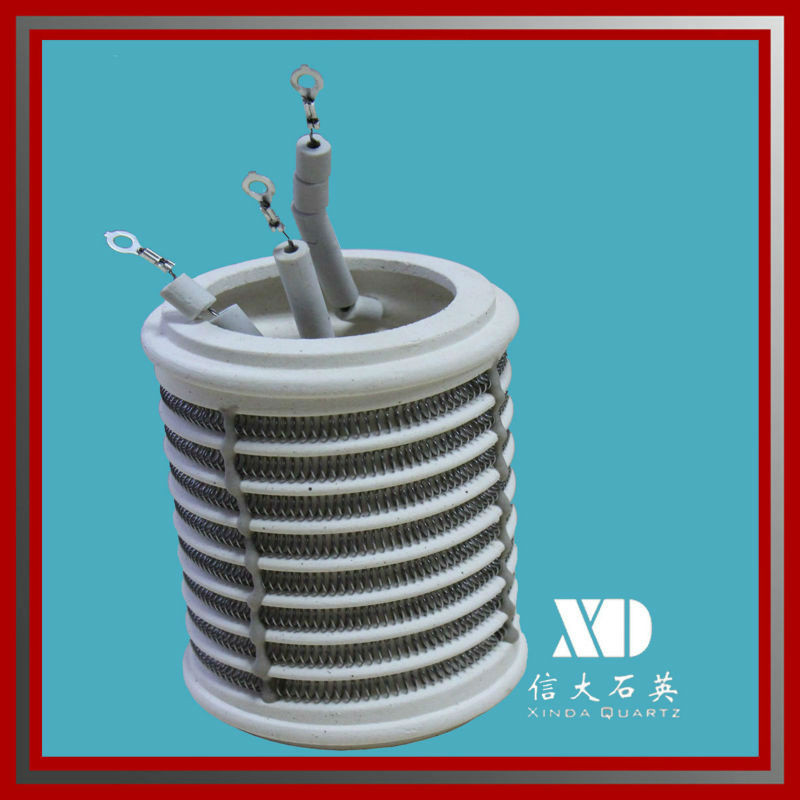

Ceramic Heater Part for Infrared Heating

Name: Ceramic Heater Part for Infrared Heating
Brand: china-manufacturer-directory.com
SKU: 695436462
Availability: InStock
Rating: 4.5 (66 reviews)

Supplier:	Heyuan Xinda Quartz Electric Appliances Co., Ltd.
Price:	US $ 1/Piece
Min Order:	500000/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	XDQ-CH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Use For:	Heater Part
Temperature Resistance:	1000 Degree

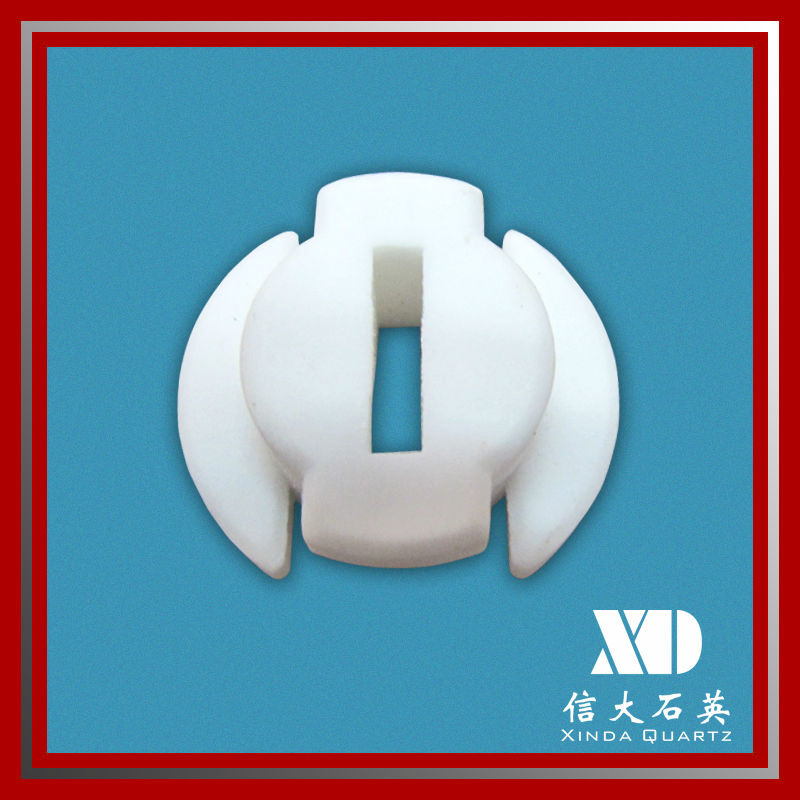

Shape:	Butterfly Shape Cylinder Shape Q Shape
Customized:	Yes
Normal Size:	Od10 12 14
Style:	Steatite Aliminum Oxide Ceramic
Certificate:	RoHS,SGS
Structure:	Post Insulator
Material:	Porcelain
Type:	A Type Insulator
Application:	High-temperature
Brand:	Xinda
Certification:	CB

Product Description

1) A variety of specifications available.

2) Satisfy various technical request

3) Lower medium spoilage

4) Good insulation performance and high temperature resistance

5) Stiffness texture

6) Used in all electric products, electric heating products and wear resistant machinery parts.

We can supply the products according to customer's drawings, samples and performance requirement.

Performance For Industrial Ceramic
Item		Unit	95 Al 2 O 3	96 Al 2 O 3	99 Al 2 O 3
Physical Characteristics	Heat resistance	0 C	1500	1550	1800
	Bulk density	g/cm 3	3.6	3.6	3.9
	Water absorption	%	0	0	0
Mechanical Characteristics	Flexural strength	Mpa	320	340	360
	Hardness vickers	Gpa	12.2	13.5	15.6
	Elastic modulus	Gpa	280	320	370
	Poisson's ratio		0.22	0.23	0.23
Thermal Characteristics	Linear expansion coefficient	(20-500 0 C) 10 -6 / 0 C	7.1	7.2	8
	Thermal conductivity	w/(m.k)	16	24	32
	Specific Heat	10 -3 J/(kgK)	0.78	0.78	0.9
Electrical Characteristics	Dielectric constant (1MHZ)	-	9	9.4	9.9
	Dielectric loss angle	*10 -4	15	5	1
	Dielectric strength	*10 6 V/m	12	15	15
Processing technology
Process range (mm)
Outside Diameter	1---300
Inside Diameter	0.5---300
Length	0.5---600
Accuracy of working (mm)
Perpendicularity	0.001
Concentricity	0.001
Roundness	0.0005
Straightness	0.005
Parallelism	0.01
Planeness	0.005
Roughness	0.005
Fit clearance	0.005
