Ceramic Honeycomb Filter Used for Metallurgy
| Price: |
US $ 0.60-0.66piece (depend on size) |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
200piece (depend on size) |
| Pay Type: |
L/C,T/T,D/P,Western Union |

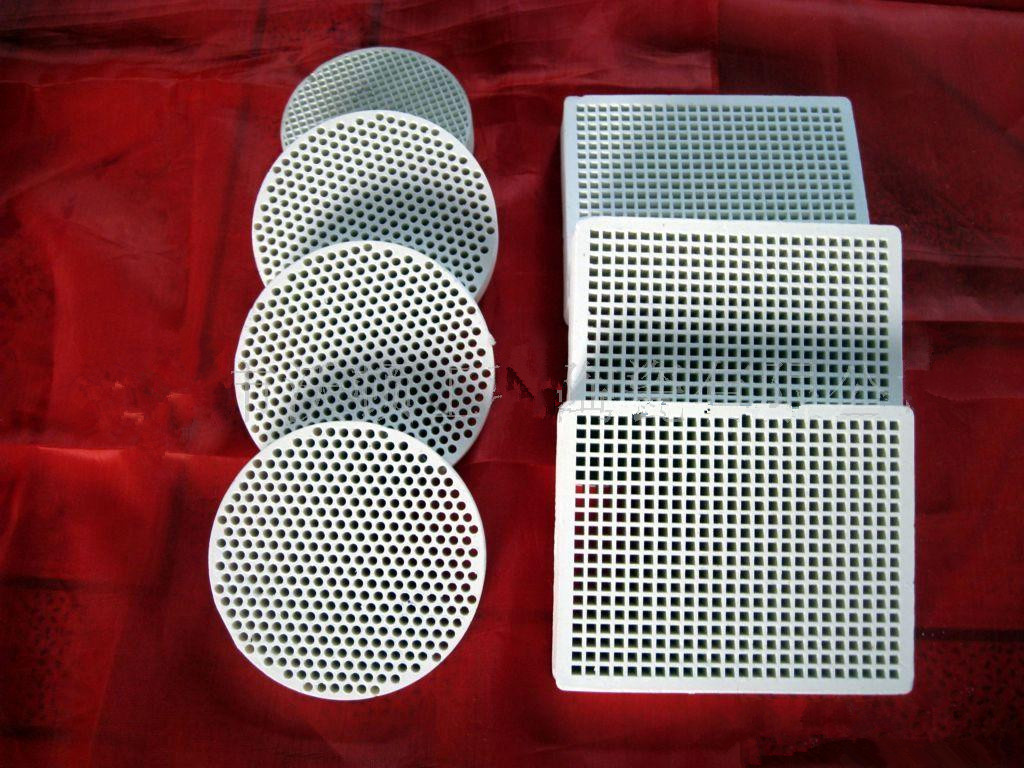

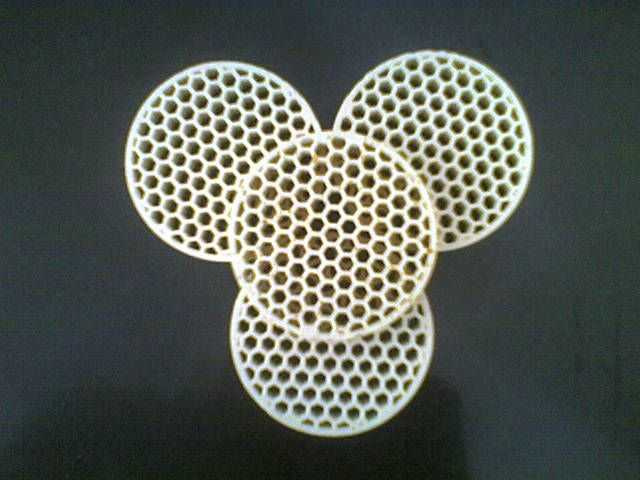

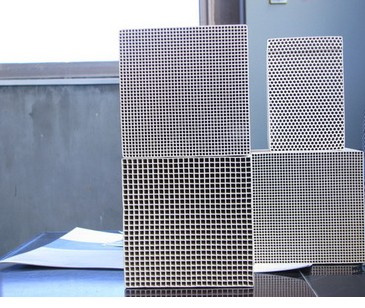

Honeycomb ceramic filter is a fine strainer with straight hole structure, which provides a cost-efficient alternative to more effective ceramic foam filter. We can produce different size of extruded ceramic filter; they have better handling properties
than ceramic foam filters.
Honeycomb ceramic filter is widely used in metallurgy, metal casting, industry melt filtration,
using mullite (cordierite) ceramic materials, high-quality, high-density, mesh straight holes. It has high thermal shock resistance and high fever casting
temperature features, straight bore design ensures a balance between the flow and strength to
effectively remove impurities and slag particles, so that the casting mechanical properties, surface
quality and product qualification rate greatly improved.
The advantages of honeycomb ceramic filter as follows:
Geometrical shape.
High dimensional accuracy.
Good mechanical and handling properties.
Maximum service temperature 1450°C, it is applied to grey iron, ductile iron and malleable iron. Grey iron requires cell diameters of
less than or equal to 2 mm, spheroidal graphite iron requires cell diameters of 2 mm and greater.
Item
material | Al2O3
(%) | Hole type | Milli hole(μm) | Coefficient of Thermal Expansion (×10-6/celsius degree) | Softening temperature
(celsius degree) | Max. Workingtemperature
(celsius degree) | Compressive Strength (MPa) |
| Cordierite | 37 | Round, square and delthyrium | 2-3 | ≤1.8 | 1390 | 1350 | ≥12 |
| Mullite | 46 | 2-3 | ≤4.0 | 1550 | 1500 | ≥15 |
| ZrO-Mullite | 70 | 2-3 | ≤5.5 | 1650 | 1580 | ≥15 |
| ZrO-Corundum | 70 | 2-3 | ≤5.5 | 1700 | 1650 | ≥15 |
| size(mm) | Hole shape | Aperture (mm) | Hole quantity
(PCS) | Cell-opening ratio (%) | Pieces per cube |
| 100×100×(20) | Square | 2.2×2.2 | 33×33=1089 | 52.70 | (5000) |
| 100×100×(20) | Square | 2.5×2.5 | 31×31=961 | 60.06 | (5000) |
| 100×100×(20) | Square | 3.0×3.0 | 24×24=576 | 51.84 | (5000) |
| 81×81×(12.5) | Square | 1.46×1.46 | 44×44=1936 | 62.89 | (12193) |
| 75×75×(15) | Square | 2.2×2.2 | 26×26=676 | 58.17 | (11852) |
| 75×75×(15) | Round | Φ2.5 | 492 | 42.94 | (11852) |
| 120×65×(20) | Square | 2.2×2.2 | 38×20=760 | 47.16 | (6410) |
| 100×65×(20) | Square | 2.2×2.2 | 33×21=693 | 51.6 | (7692) |
| 100×60×(12.5) | Square | 2.2×2.2 | 33×20=660 | 53.29 | (13333) |
| 100×50×(20) | Square | 1.6×1.6 | 50×24=1200 | 61.44 | (10000) |
| 66×66×(12.5) | Square | 1.2×1.2 | 42×42=1764 | 58.31 | (18365) |
| 66×66×(12.5) | Square | 1.46×1.46 | 37×37=1369 | 66.99 | (18365) |
| 66×66×(12.5) | Square | 2.2×2.2 | 26×26=676 | 75.11 | (18365) |
| 66×66×(12.5) | Round | Φ2.4 | 440 | 45.7 | (18365) |
| 60×60×(20) | Square | 1.6×1.6 | 29×29=841 | 59.80 | (13889) |
| 60×60×(15) | Square | 2.2×2.2 | 20×20=400 | 53.78 | (18519) |
| 55×55×(12.5) | Round | Φ2.3 | 367 | 50.41 | (26446) |
| 55×55×(12.5) | Square | 2.2×2.2 | 21×21=441 | 70.56 | (26446) |
| 55×55×(12.5) | Square | 1.15×1.15 | 37×37=1369 | 59.85 | (26446) |
| 50×50×(12) | Square | 2.2×2.2 | 19×19=361 | 69.89 | (33333) |
| 50×50×(12.5) | Round | Φ2.3 | 294 | 48.86 | (32000) |
| 40×40×(10) | Round | Φ2.2 | 172 | 40.86 | (62500) |
| 40×40×(10) | Square | 1.4×1.4 | 22×22=484 | 59.29 | (62500) |
| Φ90×(12.5) | Square | 2.2×2.2 | 696 | 52.95 | (12582) |
| Φ60×(10) | Square | 1.44×1.44 | 502 | 36.82 | (35368) |
| Φ52×(7) | Square | 2×2 | 234 | 44.07 | (67304) |
| Φ52×(7) | Square | 1.44×1.44 | 286 | 27.93 | (67304) |
| Φ50×(10) | Round | Φ2.3 | 109 | 23.06 | (50955) |
| Prod Model: |
HCF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
50*50, 40*40, 65*65, 50*75, etc |
| Hole: |
Square, Circular, Triangular, Hexagonal, etc |
| Holes: |
100cpsi, 200cpsi, 300cpsi, etc |
| Refractoriness (',℃): |
1580< Refractoriness< 1770 |
| Feature: |
Long Time Materials |
| Type: |
Refractory Material |
| Shape: |
Square, Circular, Triangular, etc |
| Material: |
Mullite, Cordierite, High Alumina, etc |
