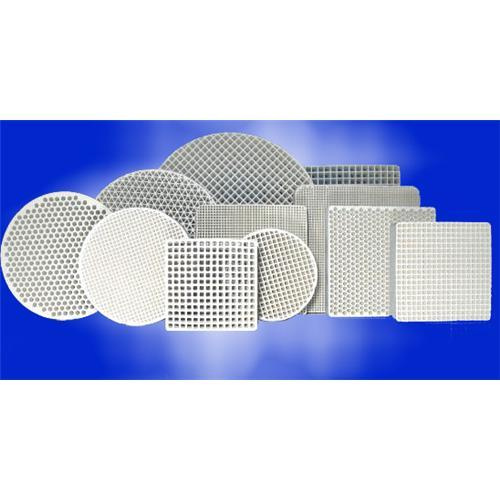

Ceramic honeycomb filter is made by material of mullite (cordierite); It has merits of high-density mesh straight holes, which make the product with characteristics of high thermal shock resistance and high fever casting temperature. The straight-hole design ensures balance between flow rate and intensity, it remove impurities and residue particles, and improve surface quality and mechanical performance of casting, also reduce the rejection rate of casting, raise the life span of the casting and reduce casting cost.
Honeycomb ceramic filter plate are widely used in metallurgy and casting industry for the filter of melted metal. Use mullite, cordierite, as its material and quality high density channel have endowed the products with good heat compression resistance and high casting temperature resistance, besides, flat channel design of honeycomb ceramic filter enable the balance between air flow rate and strength, and to remove the contaminants and cast particulates effectively, which hence improve the casting mechanic capability, surface look and product pass rate greatly.
At melting metal liquid at ceramic hole eyes, in order to removing metal the refractory piece, alloy and melt the inclusion, such as dreg, etc. That melts of solution. The ceramic filter of honeycomb still plays a peculiar rectification role, can get steady and fast solution laminar flow, can prevent bubbles from entering, avoid the harmful effects that cause by the turbulance makes the metal oxidize and splash by the solution.
Advantages:
*Good work strength under high temperature, good thermal shock resistance and melted metal inflow resistance
*High strength under room temperature, mechanic push resistance
*Obvious filter effect
*Ease the uneven inflow of casting, smooth the casting process, avoid surface defect
*Have a large and even melted inflow rate
*Good chemical stability, not affected by of melted meta, no change in its chemical compound
*Precise dimension and can be used in production line automatic filter mounting equipment
Item
material |
Al2O3
(%) |
Hole type |
Milli hole( μ m) |
Coefficient of Thermal Expansion ( × 10-6/ ° C) |
Softening temperature
( ° C) |
Compressive Strength (MPa) |
|
Cordierite |
37 |
Round, square anddelthyrium |
2~3 |
≤ 1.8 |
1390 |
≥ 12 |
|
Mullite |
46 |
2~3 |
≤ 4.0 |
1550 |
≥ 15 |
|
Alundum mullite |
70 |
2~3 |
≤ 5.5 |
1700 |
≥ 15 |
|
Section size (length × width) (mm) |
Hole type |
Aperture(mm) |
Number of hole(cells) |
Cell-opening ratio (%) |
Pieces per cube |
|
100 × 100 × (20) |
Square |
2.2 × 2.2 |
33 × 33=1089 |
52.70 |
(5000) |
|
100 × 100 × (20) |
Square |
2.5 × 2.5 |
31 × 31=961 |
60.06 |
(5000) |
|
100 × 100 × (20) |
Square |
3.0 × 3.0 |
24 × 24=576 |
51.84 |
(5000) |
|
81 × 81 × (12.5) |
Square |
1.46 × 1.46 |
44 × 44=1936 |
62.89 |
(12193) |
|
75 × 75 × (15) |
Square |
2.2 × 2.2 |
26 × 26=676 |
58.17 |
(11852) |
|
75 × 75 × (15) |
Round |
2.5 |
492 |
42.94 |
(11852) |
|
120 × 65 × (20) |
Square |
2.2 × 2.2 |
38 × 20=760 |
47.16 |
(6410) |
