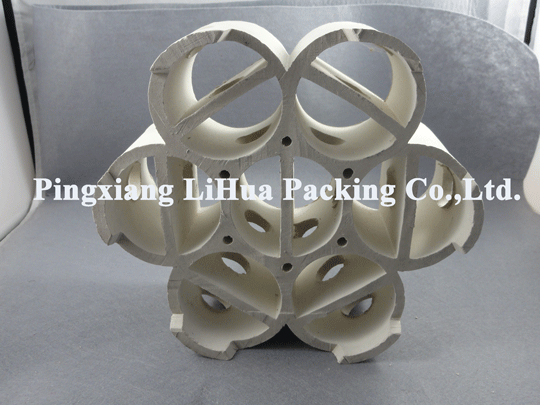

Ceramic Structured Packings

Name: Ceramic Structured Packings
Brand: China-Manufacturer-Directory.com
SKU: 681825535
Availability: InStock
Rating: 4.9 (89 reviews)

Supplier:	Pingxiang Lihua Packing Co., Ltd.
Price:	Negotiable
Min Order:	1
Quantity::

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Structured Packing
Material:	Ceramic

Product Description

Ceramic Combined Packing is advantage of large surface area with a high void ratio and mass transfer coefficient. It also contains anti-block, anti-corrosion and sudden cold/hot resistance componets. It is very durable and can be easily installed. It has been widely used in the process of coking desulphuruzation, methanol, washing benzene, naphthalene and ammonia sulfuric acid drying, fertilizer hot water saturatio tower.

Product name	Type	Subtense distance (mm)	Accumulation gap (mm)	Porous area (mm)	Surface area (m2/m3)	Voild volume (%)	Bulk density (Kg/m3)	No. element (m/m3)
SK seven link pores ring	LH-1	220± 2.5	20	65	118	85	320	200
SK seven musle pores ring	LH-2	220± 2.5	20	65	128	75	420	200
Seven rhombus pores ring	LH-4	220± 2.5	20	65	132	75	380	200
Six rhombus musle ring	LH-3	220± 2.5	20	65	120	80	320	200
Hexagon pores ring	LH-5	220± 2.5	20	65	135	73	350	200

3. Technical Index

Item		Technical index
Bulk density, kg/cm3		320-480
Volume density , kg/cm3		2.3-2.6
Void space, %		72-85
Apparent porosity, %		1.0~2.5
Thermal resistance, ° C		1100
Acid resistance, %		≥ 98.8
Alkali resistance, %		≥ 85
Mohs' hardness, Scal		≥ 6.5
Chemical composition %	Al2O3	≥ 20
	Fe2O3,	≤ 1.5
	Al2O3+SiO2	≥ 93

Pingxiang Lihua Packing Co., Ltd is restructured from Pingxiang Industrial Packing( Group) Corporation, which located in Pingxiang city, ceramic industry park, mainly produce tower packing in Ceramic, Metal, Plastic material, Ceramic Ball, Molecular Sieve, Activated Alumina, Catalyst, Thermal Storage Packing, Environmental-friendly Filtering Material, Grinding Ceramic series products.

Lihua has an annual manufacturing capacity of 10, 000 tons of various products in the present, the factory existing covers 30, 000 square meters of area, fixed assets RMB 50 million, working capital RMB 20 million, more than 200 employees. Lihua fully implement the international standard ISO9001-2000 quality management system, Lihua is major designated to the large-scale industrial chemical packing enterprises by Petrochemical Department, Ministry of Chemical Industry, Ministry of Metallurgical Industry. Products are used in petrochemical, coal chemical, fertilizer, metallurgy, electricity, medicine and environmental protection industries and medium-sized enterprises.

The products have been exported to Japan, Denmark, Russia, the United States, Iraq, the Czech Republic and other countries, and have won tremendous favorable reputation from users.

Lihua pursues: Quality First, Credit Most, operates principle of Integrity, takes the enterprise spirit of Credibility, Science, Innovation and Development and follows the essentials of Excellent Quality, Competitive Price and Best Service to create wonderful future with our home and abroad customers.

We sincerely welcome customers from all over the world and assure you of our superior quality and best services.
