Pingxiang Chemshun Ceramics Co., Ltd. >> Ceramic Tower Packing Ceramic Raschig Ring for Drying, Cooling and Absorption Tower in Chemical, Coal Gas, Petrochemical Industry-China Supplier
Ceramic Tower Packing Ceramic Raschig Ring for Drying, Cooling and Absorption Tower in Chemical, Coal Gas, Petrochemical Industry-China Supplier
Product Specifications
| Prod Model: |
Chemical packing |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item Name: |
Ceramic Raschig Ring |
| Alumina Content: |
17~23% |
| Bulk Gravity: |
2.1-2.4G/Cm3 |
| Alkali Resistance: |
>80% |
| Acid Resistance: |
>98% |
| Heat Resistance: |
980 Degree Centigrade |
| Size: |
Dia 6~150mm |
| Applied Equipment: |
Drying,Absorbing,Cooling Tower |
| Application Industry: |
Chemical,Metallurgy,Gas,Petrochemical |
| Category: |
Chemical Ceramic Tower Packing |
| Material: |
Ceramic |
| Structure Feature: |
Ring Form Filler |
| Type: |
Random Packing |
| Usage: |
Chemical Engineering |
| Effect: |
Reducing Shrinkage |
| Packing: |
Plastic Bag+Pallet |
Product Description

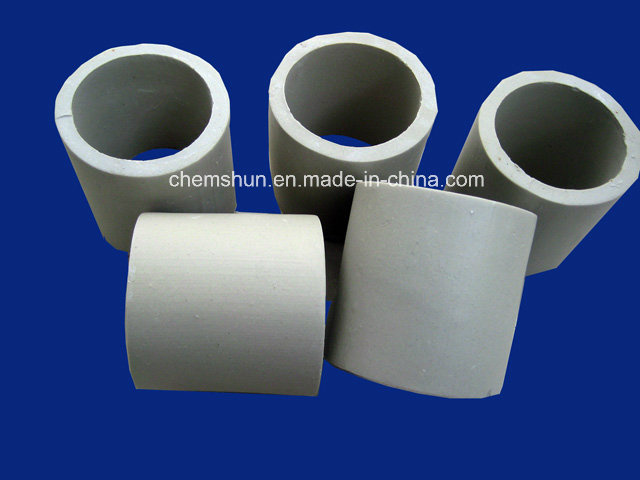

Ceramic Random Packing-Ceramic Raschig Ring
1. Description
Chemshun's ceramic raschig ring is highly suitable for the conditions of higher temperature and lower temperature and can be much more resistant to all kinds of organic acid, inorganic acid and solutions except for the hydrofluoric acid than metal packing. It is widely used in drying tower, absorbing tower and cooling tower in the fields of chemical, petrochemicl,Coal gas etc industries.
| 2. Technical Data |
|
|
|
|
|
|
| A. Geometric properties |
| size | D×H×T (mm) | surface | free | number | weight | dry packing |
| m2/m3 | vol.% | pc./m3 | kg/m3 | factor m-1 |
| 6(mm) | 6×6×2 | 789 | 73 | 3,110,000 | 880 | 2030 |
| 10(mm) | 10×10×2 | 440 | 70 | 720,000 | 800 | 1280 |
| 15(mm) | 15×15×2 | 330 | 70 | 250,000 | 750 | 960 |
| 25(mm) | 25×25 2.5 | 190 | 78 | 50,000 | 620 | 400 |
| 35(mm) | 35×35×4 | 150 | 76 | 18,500 | 600 | 320 |
| 40(mm) | 40×40×5 | 126 | 75 | 13,200 | 580 | 305 |
| 50(mm) | 50×50×5 | 93 | 81 | 6,400 | 540 | 177 |
| 80(mm) | 80×80×9.5 | 90 | 68 | 1,950 | 560 | 234 |
| 100(mm) | 100×100×10 | 70 | 70 | 1,000 | 700 | 172 |
| 150(mm) | 150×150×15 | 50 | 68 | 295 | 790 | 142 |
| B.Chemical compositions |
| Al2O3 | SiO2 | Fe2O3 | CaO | K2O+Na2O | TiO2 | MgO |
| 17%-23% | >70% | <1% | 1-2% | 2-4% | <0.5% | <2.5% |
| C.Physical Data |
| Moh's hardness (scale) | Bulk Gravity(g/cm3) | Water absorption | Ignition loss | Heat resistance | Alkali Resistance | Acid Resistance |
| ≥6.5 | 2.1~2.4 | <0.9% | ≤0.3% | Up to 980ºC | >80% | >98% |
3.Other Chemical Packing products:
-Ceramic super saddle
-Ceramic saddle
-Ceramic cross-partition ring
-Ceramic pall ring
-Ceramic cascade ring
-Ceramic flute ring
-Ceramic one-ring
-Structured packing
-Ceramic ball
-Plastic pall ring
-Plastic raschig ring random packing
-Plastic saddle ring
-Plastic cascade mini ring
-Plastic conjugate ring random packing
-Plastic rosette ring
-Polyhedral hollow ball
-Hollow floatation ball packing
-Plastic super saddle ring random pacing
-Plastic heilex ring
-Plastic Bio packing
-Metal pall ring
-Metal intalox saddle
-Metal super raschig ring
-Metal super intalox saddles
-Metal nutter ring
-Metal cascade mini ring
-Metal raschig ring
-Metal conjugate ring
-VSP ring
Pingxiang Chemshun ceramics Co., Ltd is a professional manufacturer of 95% & 92% Al2O3 alumina wear ceramic products. Chemshun ceramics was established in 2002, we have 15 years of professional ceramic producing and import & exporting experierence. Chemshun have the products and service of: Design, produce, sell, as follows:
1) 95% Al2O3 Alumina wear resistant product and high quality grinding media.
(we also can supply the Al2O3: 92% products according to detailed requirement):
Wear resistance Ceramic liner, alumina plaiin tile, ceramic weldable plate, alumina pipe, ceramic blocks, abrasion resistant lining, lined pipe and fitting, ceramic linings, wear-resistance ceramic linings, chemshun pre-engineered equipment lined ceramics and paiting, custom designed alumina ceramic, hexagonal ceramics sheet, square ceramic lining pieces, ceramic liner, Ceramic Conveyor Pulley Lagging, ceramic tube and all kind of engineered ceramics, the finished equipment according to drawings. Ceramic Grinding balls, griding cylinders. Products used in the mineral, steel, power, port, cement, ceramic, glass etc industries, and was fixed on the equipment of chute, cyclone, cone, fan etc. We not only afford the products but also can afford the engineer service and on-site fixing.
2)High quality Catalyst support media /support covering materials (Inert ceramic balls, 99 alumina balls, all kind of ceramic/alumina rings) and all kinds of tower packings(Mat: Eramic/Plastic/Metallic), saddles, pall rings, flower rings, raschig rings, cascade mini rings etc) and ceramic honeycomb products.
Aim for servicing with the global maket, we established a new factory in 2008 which mainly supplys the high alumina wear resistant product and the high quality catalyst support media. With the predominance be of honesty, efficiency, specialty and innovation, Pingxiang chemshun ceramics Co., Ltd will satisfy global makket requirement.
Has strong research and production capability, with an annual production capacity of 4000 tons of wear-resistance product (grinding balls & lining bricks, alumina plate, alumina mosaic product), 1500m3 catatalyst support /covering materials (inert ceramic balls, 99alumina balls, ceramic honeycomb materials) and 1500m3 various chemical packing. We aim to serve clients from all over the world.
