Nanjing Greteq Industrial Co., Ltd. >> CGA320B Strandard CO2 Cylinder Valve with Safety Device

CGA320B Strandard CO2 Cylinder Valve with Safety Device

Name: CGA320B Strandard CO2 Cylinder Valve with Safety Device
Brand: China-Manufacturer-Directory.com
SKU: 708463115
Availability: InStock
Rating: 4.8 (135 reviews)

Supplier:	Nanjing Greteq Industrial Co., Ltd.
Price:	US $ 8-10/Piece
Min Order:	300/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CGA320B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard Or Nonstandard:	Standard
Power:	Manual
Material:	Brass, Brass Hpb59-1
Port Size:	Outlet Cga320, Inlet 3/4-14-Ngt
Structure:	Shutoff
Pressure:	Medium Pressure
Temperature Of Media:	Normal Temperature
Loading Port:	Shanghai Port
Delivery Time:	Within 10 Days
Suitable Medium:	CO2(Carbon Dixide)

Product Description

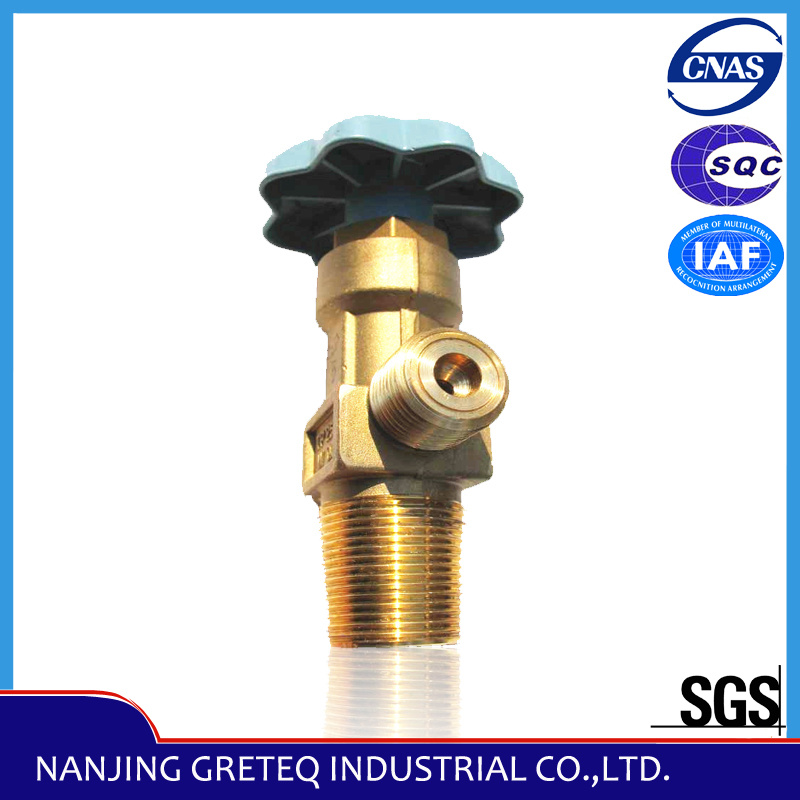

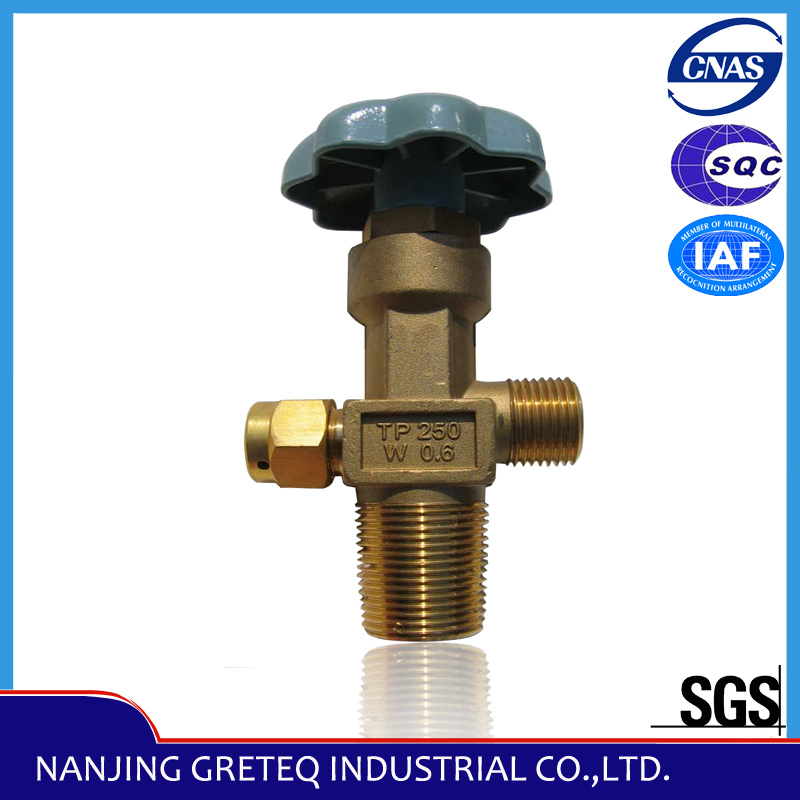

CGA320B strandard CO2 Cylinder Valve with safety device

Specifications:
1)Suitable Medium:CO2
2)Working Pressure:15Mpa
3)Nominal diameter:DN7mm
4)Outlet joint thread:CGA320
5)Joint thread to cylinder:3/4-14-NGT
6)Safety device:21±1.5Mpa

Packaging &Delivery:
Packaging Details:25sets/carton
Delivery Detail:Within 15 days

Quality certificate:
SQC certificate for quality management system, has complied with the requirements of GB/T 19001-2000 idt ISO 9001:2000
Manufacture License of Special equipment in People's Republic of China TSF210024-2012

NO.	Type No.	Produce Name	Suitable Medium	PN (Mpa)	DN (mm)	Outlet thread(mm)	Jiont Thread to Cylinder (mm)	Temp./Pressure Of safety device
1	CGA200	Brass neddle type cylinder valve for C2H2	C2H2(acetylene)	3	3	CGA200	3/8-18-NGT	100deg±5deg
2	CGA300(QF-70)	Brass neddle type cylinder valve for C2H2	C2H2(acetylene)	3	4	.825-14NGO-RH	3/4-14-NGT
3	CGA320	Brass flapper type cylinder valve for CO2	CO2	15	4	CGA320	3/4-14-NGT	21±1.5
4	CGA326	Brass flapper type cylinder valve for N2O	N2O	15	4	CGA326	GB8335 PZ27.8	21±1.5
5	CGA350	Brass coupling type cylinder valve for CO2	CO2	15	7	CGA350	3/4-14-NGT	21±1.5
6	CGA510(QF-72)	Brass coupling type cylinder valve for C2H2	C2H2(acetylene)	3	4	Female Thread CGA510	1-11 1/2 -NGT
7	CGA510-1(QF-71)	Brass flapper type cylinder valve for C2H2	C2H2(acetylene)	3	4	Female Thread885-14NG0-LH	3/4-14-NGT
8	CGA520	Brass neddle type cylinder valve for C2H2	C2H2(acetylene)	3	3	CGA520	3/8-18-NGT	100deg±5deg
9	CGA540	Brass flapper type cylinder valve for O2(oxygen)	O2,N2,Air	15	4	CGA540	3/4-14-NGT	21±1.5
10	CGA555	Brass flapper type cylinder valve for N2	N2,O2,Air	15	4	CGA555	GB8335 PZ27.8	21±1.5
11	CGA580	Brass flapper type cylinder valve for H2	He,Ne,Ar,Kr,Xe	15	4	Female Thread CGA580	1-11 1/2 -NGT	21±1.5
12	CGA590	Brass flapper type cylinder valve for O2(oxygen)	O2,N2,Air	15	3	Female Thread CGA590	3/4-14-NGT
13	CGA870A	Cylinder valve for O2(oxygen)	O2	15	1.5	7 clip2-4.7 fixed mpin	3/4-16-UNF	Steelcylinder21-23.2 Aluminum cylinder22.9-25.5 73deg±3deg
14	CGA910	Cylinder valve for N20	N20	15	2.5	7 clip2-4.7 fixed mpin	3/4-14-NGT
15	CGA670	Brass neddle type cylinder valve for mixed gas	Mixed gas(Cl2,etc)	2	7	Male thread CGA670	3/4-14-NGT

We Nanjing Greteq Industrial Co., Ltd have a long history in China. Now we have two mainly products: Ductile iron pipe/fittings and gas cylinder valve/gas equipment.

In ductile iron pipe/fitting department we use the lost-foam casting process and resin bonded sand process and make production and inspection strict according to ISO2531, BSEN545, BSEN598 and GB/T13295 standard. It annually produces 200000 tons of ductile iron pipe and 15000 tons pipe fitting The diameter are from 80-2600. We have a owned ductile iron pipe factory and several cooperative iron pipe and fitting factory, So we can meet your big quantity order and supply all diameter size ductile ion pipe and fitting to you in short times. Our goods are only for export and had succeeded exported to America, Europe, Africa, Oceania, Southeast Asia and the Middle East.

In gas cylinder valve/gas equipment department. The mainly products are including high and middle pressure oxygen/acetylene/CO2/H2/N2/Ar/Cl/Freon cylinder valve, CGA cylinder valve, CNG/LNG cylinder valve, cryogenic valvepipe shutoff valve and pressure reducer used for all kindly of industries, SCBA cylinder valve and so on. Those products are well-known in domestic market and exported in many countries.

We will 'Survival by Quality, Development by Credit' and looking for your inquiry.
