Nanjing Greteq Industrial Co., Ltd. >> CGA540A Low Price Oxygen Cylinder Valve with Safety Device

CGA540A Low Price Oxygen Cylinder Valve with Safety Device

Name: CGA540A Low Price Oxygen Cylinder Valve with Safety Device
Brand: china-manufacturer-directory.com
SKU: 708465945
Availability: InStock
Rating: 4.8 (148 reviews)

Supplier:	Nanjing Greteq Industrial Co., Ltd.
Price:	US $ 7-9/Piece
Min Order:	300/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CGA540A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard Or Nonstandard:	Standard
Power:	Manual
Material:	Brass, Brass Hpb59-1
Pressure:	Medium Pressure
Temperature Of Media:	Normal Temperature
Loading Port:	Shanghai Port
Port Size:	Outlet:Cga540, 3/4-14-Ngt
Delivery Time:	Within 16 Days
Structure:	Shutoff

Product Description

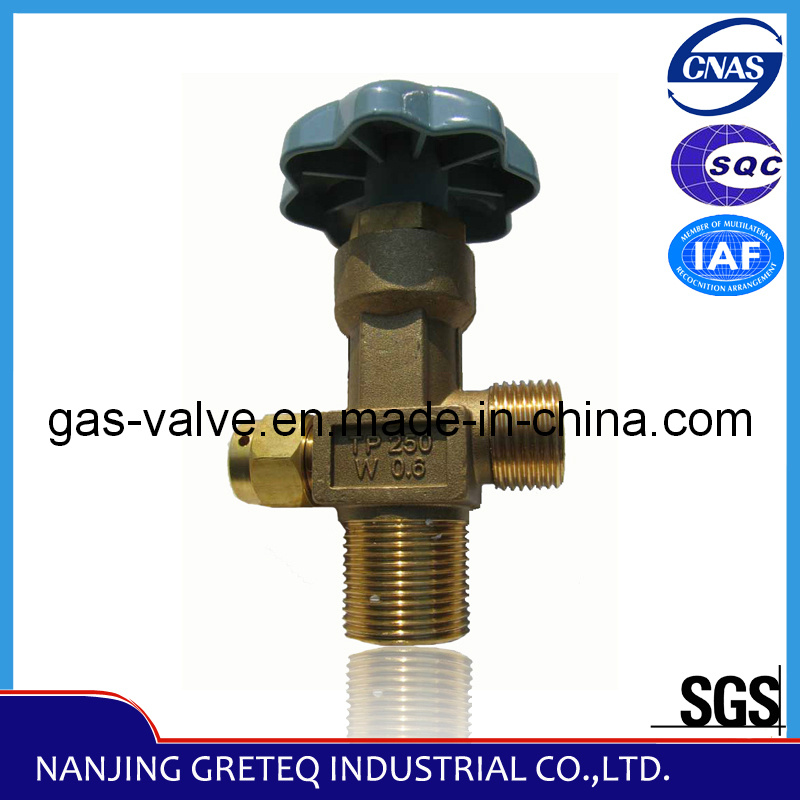

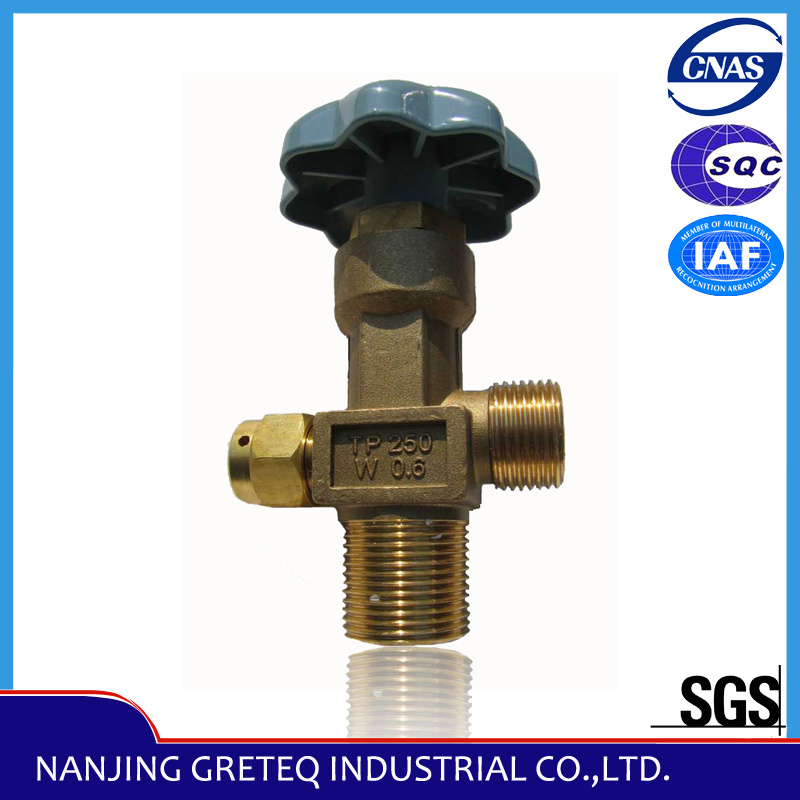

CGA540A low Price Oxygen Cylinder Valve with safety device

SPECIFICATIONS:
1)Suitable Medium: O2
2)Working Pressure: 15Mpa
3)Nominal diameter: DN4mm
4)Outlet thread: CGA540
5)Jiont to cylinder: 3/4-14-NGT
6)Safty device: 21±1.5Mpa

PACKING & DELIVERY
Packaging Details: 25 sets/carton
Delivery Detail: within 15 days

APPLICATIONS:
The suitable meidum are O2, Air and N2. The CGA540A cylinder valve are suitable for O2 cylinder, Air cylinder and N2 cylinder valve in industrial area.

QUALITY CERTIFICATES:
SQC certificate for quality management system, has complied with the requirements of GB/T 19001-2000 idt ISO 9001: 2000,
Manufacture License of Special equipment in People's Republic of China TSF210024-2012

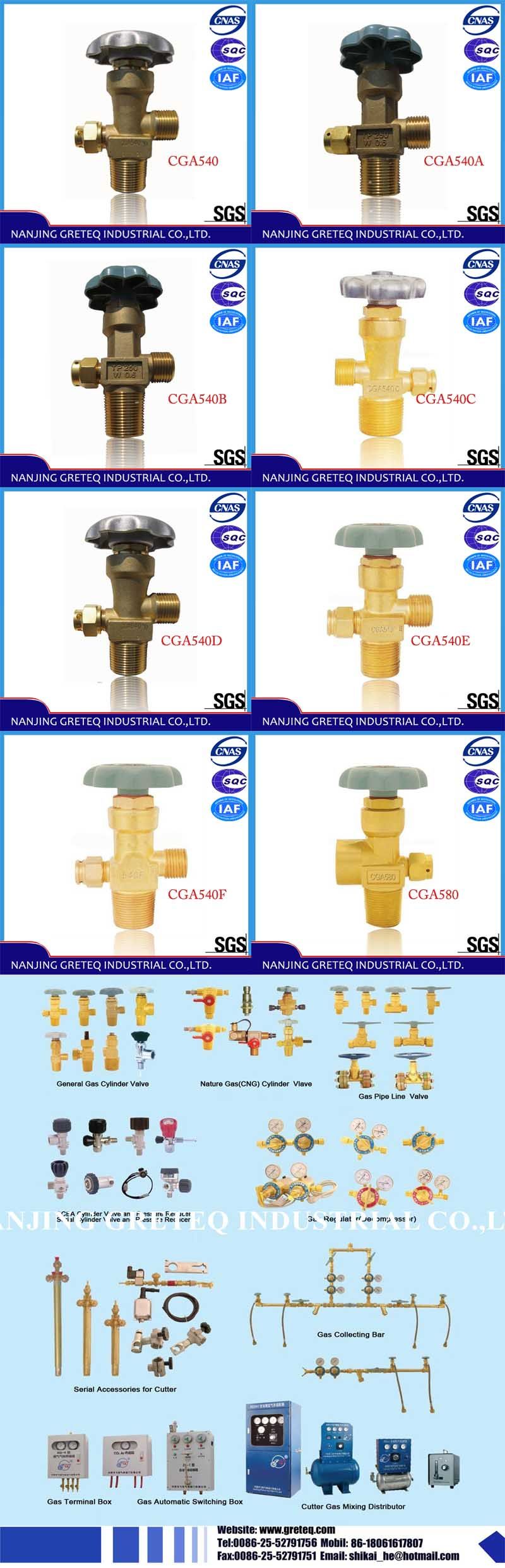

NO.	Type No.	Produce Name	suitable Medium	PN (Mpa)	DN (mm)	Outlet thread (mm)	Jiont Thread to cylinder (mm)	Temp./Pressure of safety device
1	CGA540	Brass flapper type cylinder valve for oxygen	O2,N2,Air	15	4	CGA540	3/8-14-NGT	21±1.5
2	CGA540A	Brass flapper type cylinder valve for oxygen	O2,N2,Air	15	4	CGA540	3/8-14-NGT	21±1.5
3	CGA540B	Brass flapper type cylinder valve for oxygen	O2,N2,Air	15	4	CGA540	GB8335 PZ27.8	21±1.5
4	CGA540C	Brass flapper type cylinder valve for oxygen	O2,N2,Air	15	4	CGA540	1-111/2-NGT	21±1.5
5	CGA540D	Brass flapper type cylinder valve for oxygen	O2,N2,Air	20	4	CGA540	3/4-14-NGT	28±2
6	CGA540E	Brass flapper type cylinder valve for oxygen	O2,N2,Air	20	3	CGA540	3/4-14-NGT	28±2
7	CGA540F	Brass flapper type cylinder valve for oxygen	O2,N2,Air	20	4	CGA540	GB8335 PZ27.8	28±2
8	CGA555	Brass flapper type cylinder valve for oxygen	O2,N2,Air	15	4	CGA555	GB8335 PZ27.8	21±1.5

We Nanjing Greteq Industrial Co., Ltd have a long history in China. Now we have two mainly products: Ductile iron pipe/fittings and gas cylinder valve/gas equipment.

In ductile iron pipe/fitting department we use the lost-foam casting process and resin bonded sand process and make production and inspection strict according to ISO2531, BSEN545, BSEN598 and GB/T13295 standard. It annually produces 200000 tons of ductile iron pipe and 15000 tons pipe fitting The diameter are from 80-2600. We have a owned ductile iron pipe factory and several cooperative iron pipe and fitting factory, So we can meet your big quantity order and supply all diameter size ductile ion pipe and fitting to you in short times. Our goods are only for export and had succeeded exported to America, Europe, Africa, Oceania, Southeast Asia and the Middle East.

In gas cylinder valve/gas equipment department. The mainly products are including high and middle pressure oxygen/acetylene/CO2/H2/N2/Ar/Cl/Freon cylinder valve, CGA cylinder valve, CNG/LNG cylinder valve, cryogenic valvepipe shutoff valve and pressure reducer used for all kindly of industries, SCBA cylinder valve and so on. Those products are well-known in domestic market and exported in many countries.

We will 'Survival by Quality, Development by Credit' and looking for your inquiry.
