Cga540c Oxygen Cylinder Valve with Safety Device in China

Name: Cga540c Oxygen Cylinder Valve with Safety Device in China
Brand: china-manufacturer-directory.com
SKU: 724380825
Availability: InStock
Rating: 4.5 (55 reviews)

Price:	US $ 8-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	300/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

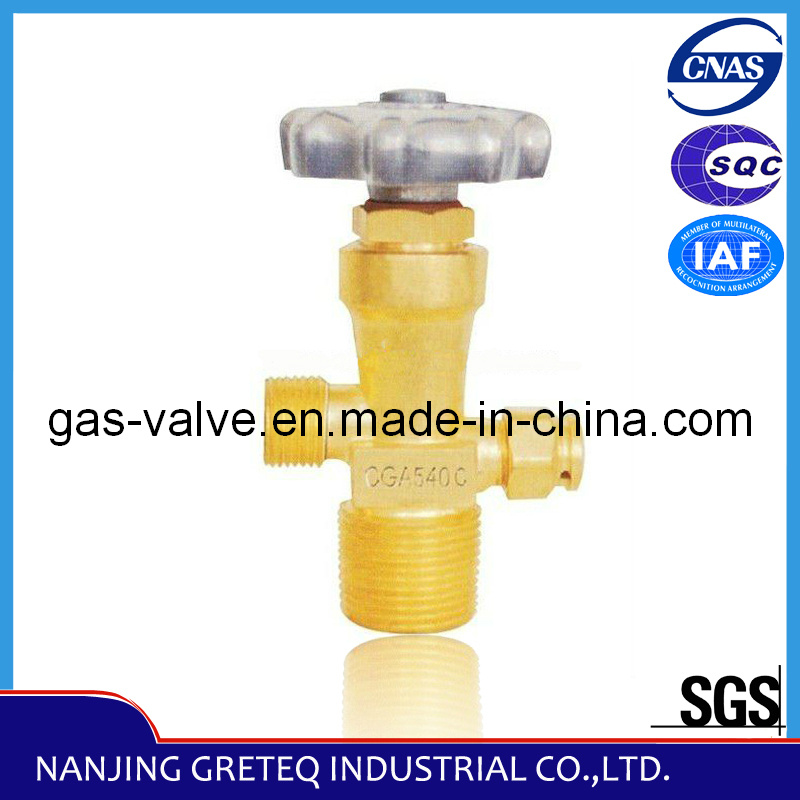

CGA540C Oxygen Cylinder Valve with safety device in China

Specification:
1)Suitable Medium: O2, Air, N2
2)Working Pressure: 15Mpa
3)Nominal diameter: DN4mm
4)Outlet thread: CGA540,
5)Inlet thread(thread to cylinder ): 1-11 1/2 -NGT
6)Safty device: 21± 1.5Mpa

Quality Certificate
1)SQC certificate for quality management system, has complied with the requirements of GB/T 19001-2000 idt ISO 9001: 2000
2)Manufacture License of Special equipment People's Republic of China TSF210024-2012

NO.	Type No.	Produce Name	suitable Medium	PN (Mpa)	DN (mm)	Outlet thread (mm)	Jiont Thread to cylinder (mm)	Temp./Pressure of safety device
1	CGA540	Brass flapper type cylinder valve for oxygen	O2,N2,Air	15	4	CGA540	3/8-14-NGT	21±1.5
2	CGA540A	Brass flapper type cylinder valve for oxygen	O2,N2,Air	15	4	CGA540	3/8-14-NGT	21±1.5
3	CGA540B	Brass flapper type cylinder valve for oxygen	O2,N2,Air	15	4	CGA540	GB8335 PZ27.8	21±1.5
4	CGA540C	Brass flapper type cylinder valve for oxygen	O2,N2,Air	15	4	CGA540	1-111/2-NGT	21±1.5
5	CGA540D	Brass flapper type cylinder valve for oxygen	O2,N2,Air	20	4	CGA540	3/4-14-NGT	28±2
6	CGA540E	Brass flapper type cylinder valve for oxygen	O2,N2,Air	20	3	CGA540	3/4-14-NGT	28±2
7	CGA540F	Brass flapper type cylinder valve for oxygen	O2,N2,Air	20	4	CGA540	GB8335 PZ27.8	28±2
8	CGA555	Brass flapper type cylinder valve for oxygen	O2,N2,Air	15	4	CGA555	GB8335 PZ27.8	21±1.5

Prod Model:	CGA540C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	Manual
Structure:	Shutoff
Media:	Gas
Material:	Brass Hpb59-1
Pressure:	Medium Pressure
Temperature Of Media:	Normal Temperature
Joint Thread:	1-11 1/2 -Ngt
Outlet Thread:	Cga540
Loading Port:	Shanghai Port
Delivery Time:	Within 10 Days

We Nanjing Greteq Industrial Co., Ltd have a long history in China. Now we have two mainly products: Ductile iron pipe/fittings and gas cylinder valve/gas equipment.

In ductile iron pipe/fitting department we use the lost-foam casting process and resin bonded sand process and make production and inspection strict according to ISO2531, BSEN545, BSEN598 and GB/T13295 standard. It annually produces 200000 tons of ductile iron pipe and 15000 tons pipe fitting The diameter are from 80-2600. We have a owned ductile iron pipe factory and several cooperative iron pipe and fitting factory, So we can meet your big quantity order and supply all diameter size ductile ion pipe and fitting to you in short times. Our goods are only for export and had succeeded exported to America, Europe, Africa, Oceania, Southeast Asia and the Middle East.

In gas cylinder valve/gas equipment department. The mainly products are including high and middle pressure oxygen/acetylene/CO2/H2/N2/Ar/Cl/Freon cylinder valve, CGA cylinder valve, CNG/LNG cylinder valve, cryogenic valvepipe shutoff valve and pressure reducer used for all kindly of industries, SCBA cylinder valve and so on. Those products are well-known in domestic market and exported in many countries.

We will 'Survival by Quality, Development by Credit' and looking for your inquiry.
