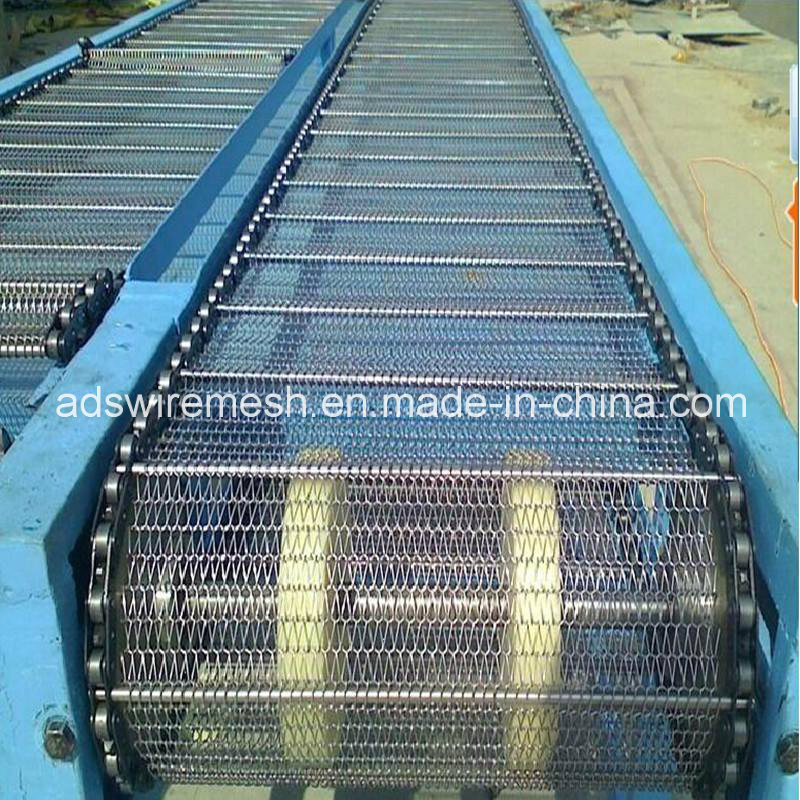

1.Chain Driven belt
Chain driven belts are driven with a cross rod which connects the chain strands by either passing through to under the wire mesh fabric. The density of wire mesh fabric is choose according to size of the product conveyed on the belt.
Chain driven belt characteristics: positive drive, smooth running, little pressure on wire mesh fabric, from minus 55 degrees to 1150 degrees, side guard and flight available.
2.Material: Carbon steel, galvanized steel, stainless steel, weathering steel, high temperature steel.
3. Feature of Chain Weave Belts Chain Driven Belting :
Straight running
Smooth surface for transportation of goods with small contact surface Small open area
Enables transportation of small products
High density of the belt enables good accumulation and retaining of heat
Long lifetime
4. Application of Chain Weave Belts Chain Driven Belting :
Cooling and carrying-away belt in glass
Works conveyor belt to hardening and tempering furnaces
Conveyor belt in food industry
Conveyor belt in electro technical industry
Heat treatment belt
Pasteurizing belt furnace belt
STANDARD SHORT ROLLER CHAIN |
| Chain NO. | Pitch | Pin Diameter |
| ANSI | ISO | mm | Inch | mm | Inch |
| 08A | RC40 | 12.7 | 1/2" | 3.94 | 0.156" |
| 10A | RC50 | 15.875 | 5/8" | 5.08 | 0.200" |
| 12A | RC60 | 19.05 | 3/4" | 5.94 | 0 .234" |
| 16A | RC80 | 25.4 | 1" | 7.94 | 0 .312" |
| 20A | RC100 | 31.75 | 1 1/4" | 9.5 | 0.375" |
| 24A | RC120 | 38.1 | 1 1/2" | 11.1 | .437" |
| DOUBLE PITCH ROLLER CHAIN |
| Chain No. | Pitch | Roller Dia | Pin Dia |
| ISO GB | ANSI | inch | mm | mm | inch | mm | inch |
| C208B | 2040 | 1' | 25.4 | 8.5 | 0.335" | 4.45 | 0.175" |
| C208BL | 2042 | 1' | 25.4 | 15.88 | 0.625" | 4.45 | 0.175" |
| C210A | 2050 | 1.25' | 31.75 | 10.16 | 0.40" | 5.08 | 0.200" |
| C210AL | 2052 | 1.25' | 31.75 | 19.05 | 0.75" | 5.08 | 0.200" |
| C212A | 2060 | 1.5' | 38.1 | 11.91 | 0.469" | 5.94 | 0 .234" |
| C212AL | 2062 | 1.5' | 38.1 | 22.23 | 0.875" | 5.94 | 0 .234" |
| C216A | 2080 | 2' | 50.8 | 15.88 | 1" | 7.94 | 0 .312" |
| C216AL | 2082 | 2' | 50.8 | 28.58 | 1.125" | 7.94 | 0 .312" |
| C220A | 2100 | 2.5' | 63.5 | 19.05 | 0.75" | 9.5 | 0.375" |
| C220AL | 2102 | 2.5' | 63.5 | 39.66 | 1.561" | 9.5 | 0.375" |
| C224A | 2120 | 3' | 76.2 | 22.23 | 0.875" | 22.23 | 0.875" |
| C224AL | 2122 | 3' | 76.2 | 44.45 | 1.75" | 44.45 | 1.75" |
| C232A | 2160 | 4' | 101.6 | 28.58 | 1.125" | 28.58 | 1.125" |
| C232AL | 2162 | 4' | 101.6 | 57.15 | 2.25" | 57.15 | 2.25" |
