Product Specifications
| Prod Model: |
tk116 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Tk116 |
| Color: |
Black |
| Weight: |
45g |
| GSM Frequency: |
850/900/1800/1900MHz |
| Working Voltage: |
12VDC/24VDC/36VDC |
| Type: |
GPS Tracker |
| Use: |
Automotive |

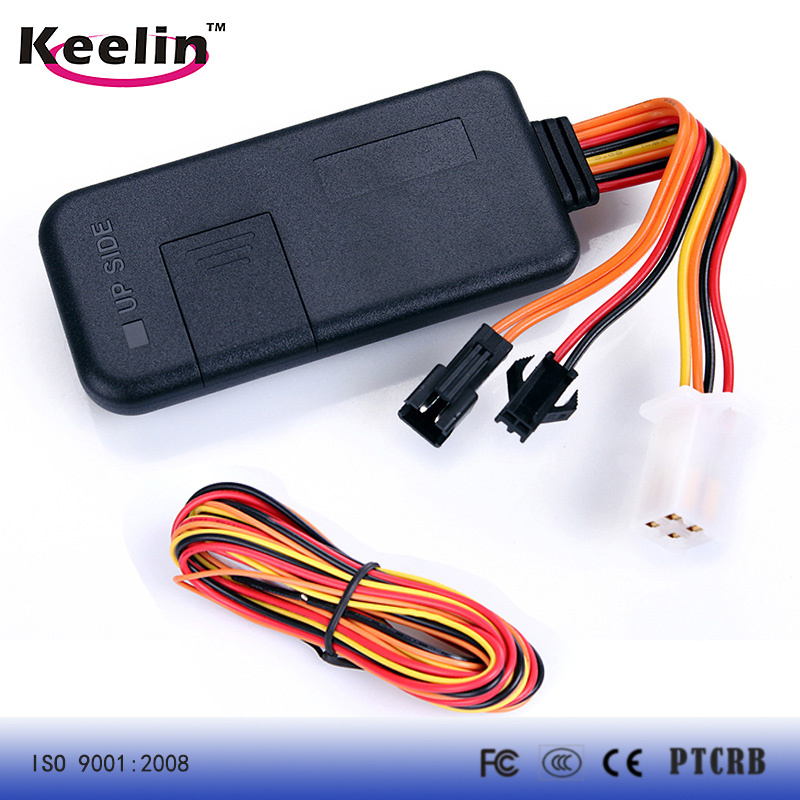

Product Description
Using TK116 GPS tracker, we can position, monitor and control the vehicle on the position server via GPRS, GPS and Internet. It can help customers to manage transparently, reduce cost, maintain security and raise efficiency. Now it is widely used in business traffic, logistics distribution, automobile lease, intelligent transportation, shipping market, army and police, rescuing, Safety Supervision, Intelligent city
Product Features
*Supports quad bands, i. E. 850/900/1800/1900MHz, worldwide used.
*Wide Input Voltage: 6-36V DC.
*GPS + GSM (LBS) Tracking
*GPS precise positioning with A-GPS and feedback position via GPRS at setting times
*Tracks real-time and playback
*Web browser platform, Smart phone app platform and SMS query.
*Built-in battery, Power disconnect alarm & Low battery alarm.
*Supports multiple alarm, acceleration sensor can be added (B models, optional component), so as increase vibration, collision and falling alarm.
*Supports ACC status checking and vehicle status notifying.
*Use relay to remotely control the vehicle...
*Use SOS button for SOS call.
*Uses external microphone to monitor remotely.
*Multiple protocol support, OTA upgrade program.
*Mini size, easy to hide and install
Alarm Type
Vibration Alarm(Optional)
Collision / falling Alarm(Optional)
Speed Alarm
Geo-fence Alarm
Power disconnect Alarm
SOS Alarm(need SOS Cable)
Main function table
GPS OK
AGPS OK
Remote cut oil/engine OK
Monitor/listen OK
ACC OK
OBD diagnostics NO
Built-in battery OK
Pedometer NO
Power failure Alarm OK
Low power Alarm OK
SOS Alarm OK
Speed Alarm OK
Shift Alarm OK
Collision Alarm OPTIONAL
Falling Alarm OPTIONAL
Vibration Alarm OPTIONAL
Geo-fencing Alarm OK
Function Extension
Default interface: Microphone input port for remote monitoring
Can be extended: ADC input port, used for temperature and oil detection
Can be extended: External lithium battery port, used for long battery life
Can be extended: UART expansion port (TTL level), RS232 serial port expansion application
Platform
You can choose Keelin terminal monitoring platform or not. It is designed by EELINK, we can position, playback the cars' track, listen and cut off oil of car on the platform server.
Accessories (Optional)
Relay/ Microphone/SOS
Delivery
*Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
*For order over 500pcs or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1, 200, 000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.
Warranty
*All products have been strictly Quality Checked in house before packing.
*All products have been well packed before shipping.
*One year warranty is provided for all models. We will bear maintenance cost during warranty.
Option to monitor the vehicle remotely using tk116
TK116 is the right car gps tracker for you if you want to monitor your car remotely. Using external MIC you can easily monitor your vehicle remotely which is only possible if you bought tk116 tracking device. You will really love to track your car remotely by using the vehicle tracking device which is tk116 and hence you should purchase tk116 immediately from EElink. By doing proper settings you can track your car any time using tk116.
|
Base Specification |
|
Voltage |
12VDC/24VDC/36VDC |
|
Work current |
<30mA@12V |
|
Standby Current |
<10mA@12V |
|
GPS positioning accuracy |
15m |
|
GSM positioning accuracy |
100m |
|
GPS Frequency |
1575MHz |
|
GSM Frequency |
850/900/1800/1900MHz |
|
Hot/warm/cold start time |
<3s,<15s,<60s |
|
Battery capacity |
200mAh |
|
Dimensions (mm) |
79.5(L)X38.5(W)X10.5(H) |
|
Operating temperature |
-20ºC~70ºC |
|
Operating humidity |
20%~80%RH |
|
Net Weight |
45 g
|
