Product Specifications
| Prod Model: |
EV-24T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screen Size: |
Without Screen |
| Application: |
Commercial |
| Game Function: |
Without Game Function |
Product Description

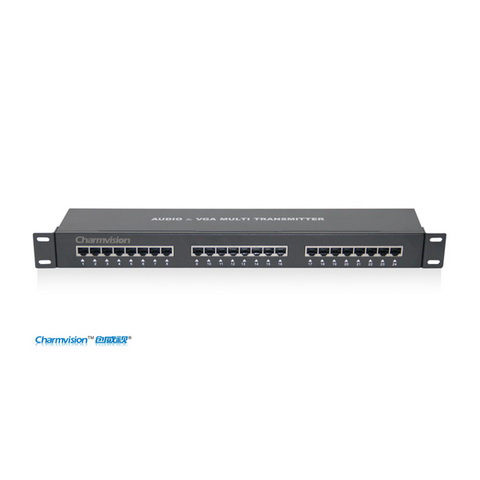

PRODUCT NAMED: 24 channels Audio & VGA transmitter rack-mounted with lightning
PRODUCT BRAND: Charmvision
PRODUCT MODEL: EV-24T
PRODUCT INTRODUCTION
The EV-24T is a professional multi channel stereo audio and VGA video signal transmitter, could install in rack. Support one way audio and video signal input, converted to 24 channels RJ45 Ethernet port output, through one UTP cable transmitting audio and video signal to Receiver. It also provides an Audio and VGA port for local use. The Receiver extended could customize, length up to 300 meters.
EV-24T is DC12V/AC110~240V power input, reducing the cumbersome wiring, the power supply is more stable. With the power switch, restart it convenient. It can widely used in the Computer-System, Monitor-System, Large-Screen-Advertising, Education, Banking, Securities-System etc...
It Built-in the lightning module and anti-jamming circuit for enhances the reliability and stability.
ACCESSORIES
Transmitter 1piece
Power adaptor 1piece
VGA cable 1piece
Audio cable 1piece
Rock-ear 2pieces
Manual 1copy
EV10R (optional)
EV20R (optional)
EV30R (optional)
About Charmvision
Charmvision Electronics Co., Limited (www.charmvision.net) is a professional high-tech enterprise, engaged in the development and produce with digital video processing equipment (brand name: Charmvision). The technical strength of enterprises, and cooperate with advanced technology of domestic and foreign, committed to successfully used state-of-the-art digital & analog multimedia technology in a variety of areas as: Security, Audio and Video Media, Military, Teaching, and Industrial Control etc. After years of hard research and innovate, has successfully released Video Transmission, Extender, HD Video Fiber-Optic Transmission, Video Distribution / Switch / Convert equipment, High-Quality Digital Matrix equipment and other data & video process products. With high quality and perfect workmanship and perfect after-sales service, Charmvision is unique in the market competition, have the majority of users praise.
Charmvision's products includes: Video Transmission, Video Extenders, Video Optical Transceiver, Video Splitter, Video Converter, Video Switcher, Video Matrix, Video Splitter, Mini HD Monitor and other product accessory etc., all products support OEM / ODM customized, also welcome to joint develop new products in technically allowed.
In Shenzhen, for Country, services Global. Ours products has been widely used at Government, Enterprises and Institutions, Airports, Docks, Inland Revenue Department, the Trade and Industry Bureau, Bank, Troops, Residential, Roads, Hospitals, Schools, Supermarkets, Power-plants, Large-projects.
At the same time to strengthen in R & D and produce, we also positive to cooperating with other manufacturers. "integrity first, pragmatic cooperation", We are welcome you come to ours company to discuss relevant business.
"Integrity, Professional, Pragmatic, Innovative", Charmvision wishes everyone to easily own the enjoy and quality life, determined to become a respected, outstanding professional company and industry leader.
TECHNICAL SPECIFICATION
| Input Signal | VGA *1 AUDIO *1 |
| Output Signal | Local: VGA *1 AUDIO *1
Remote: VGA *24 AUDIO *24 |
| Extend Distance | + EV10R: 1~100 meters
+ EV20R: 1~200 meters
+ EV30R: 1~350 meters |
| Video Interface | Input: M HDB 15PIN VGA
Output: F HDB 15PIN VGA, RJ45 |
| Video Type | VGA/SVGA/XGA/SXGA/UXGA |
| Video Bandwidth | 600MHz -3db (full load)
0-150MHz +6db~-0.8dB
0-10MHz +0.1dB |
| Video Standards | 0.7Vpp |
| Resolution | Up to 1920*1440 |
| Image Correction | Auto |
| Audio Standards | 1Vpp |
| Audio Interface | 3.5mm Stereo |
| Transmission Interface | RJ45 |
| Cable Type | CAT5/CAT5E/CAT6 UTP/STP, recommend to use UTP cable |
| Protection Class | Transport interface: 1KV
Contact discharge: 8KV
Air discharge: 15KV |
| MTBF | >50000 hours |
| System Support | N/A |
| Power Consumption | <8W |
| Operating Temperature | -20~+70 |
| Storage Humidity | 0~95% (no condensation) |
| Power Supply | DC12V/5A |
| Material | Hulled |
| Color | Black |
| Weight | 2.8Kg |
| Dimensions (LWH) | 430*85*45mm |
OTHER SPECIFICATIONS
| Model | Output Signal | Support Receiver Model |
| EV-8T | Local: VGA *1 AUDIO *1
Remote: VGA *8 AUDIO *8 | EV10R/EV20R/EV30R |
| EV-10T | Local: VGA *1 AUDIO *1
Remote: VGA *10 AUDIO *10 | EV10R/EV20R/EV30R |
| EV-16T | Local: VGA *1 AUDIO *1
Remote: VGA *16 AUDIO *16 | EV10R/EV20R/EV30R |
| EV-18T | Local: VGA *1 AUDIO *1
Remote: VGA *18 AUDIO *18 | EV10R/EV20R/EV30R |
| EV-24T | Local: VGA *1 AUDIO *1
Remote: VGA *24 AUDIO *24 | EV10R/EV20R/EV30R |
