Cheap! ! ! 4CH CCTV Security System DVR Kit

Name: Cheap! ! ! 4CH CCTV Security System DVR Kit
Brand: China-Manufacturer-Directory.com
SKU: 721731675
Availability: InStock
Rating: 4.9 (115 reviews)

Supplier:	Shenzhen Huishi Electronics Co., Ltd.
Price:	US $ 103/Set
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	4CH-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
CCTV Kit:	4 CH
Camera:	IR Waterproof Camera
Camera IR:	36PCS 30m
Camera Lens:	3.6mm/6mm Board Lens
Camera Resolution:	700tvl CMOS
DVR:	4CH D1
Network Monitor:	Yes
Mobile Monitor:	iPhone, Symbian, Android
Audio:	1/4CH
Alarm:	Option
Video Capture System:	Video Camera
Video Transmission System:	Optical Fiber Transmission
Model:	CCTV
Client Software:	Client Software
Software Usage:	Computer Monitoring Software
Software Function:	Monitoring+Control
Type:	Monitoring System
Technology:	Infrared
Application:	All-Round Monitoring
Kind:	Manual Focus Lens
Feature:	Waterproof / Weatherproof
Sensor:	CMOS
Horizontal Resolution:	700tvl

Product Description

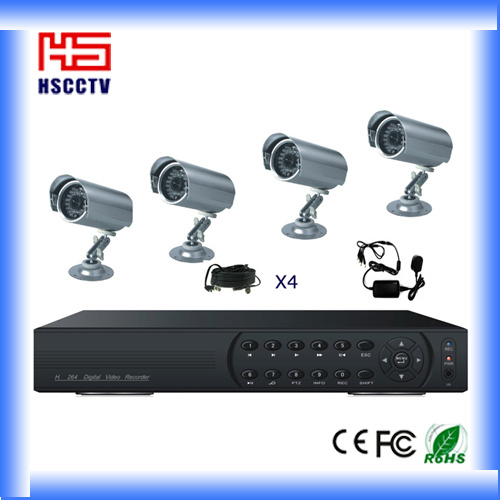

4CH ourdoor IR waterproof CCTV security System
1.4CH CCTV system, 4CH security system
2.4PCS 20m outdoor IR waterproof CCTV security camera
3.1PC 4CH D1 H. 264 DVR
4.4PCS 15M video+power cable
5.1PC 12V 5A power adaptor with 1-5 cable splitter

Shenzhen Huishi Electronics Co., Ltd is Chinese factory of CCTV camera and camera board over 5 years. We provide IR Waterproof Camera, Dome Camera, CCD camera, board camera, security camera, Box CCTV Camera, High speed dome Camera, DVR, and so on

OEM, 2-5 days leadtime, 2 years warranty, lifetime maintain. NO MOQ. Sample order is welcome.

Our Service:
(1) Prompt reply: Your inquiry related to our products or price will be replied within 24 hours.
(2) OEM Service: We offer customized options for our products, and customer's designed LOGO printing is available.
(3) Quality Control: All products we sold are 100% strictly selected and tested by our QC department.
(4) Warranty: We offer 2 years product warranty.

Shipping and payment

1. Ex-Works Shenzhen
2. Payment T/T in advance(paypal or Western Union are welcomed)
3. Lead time:2-5 working days after receipt the payment
4. Sample order can be delievered within 3 days
5.Delivery services are quoted under your requirements(EMS/DHL/UPS/FEDEX/by sea or by Air)
6.MOQ :10pcs, sample order is welcome.

	Model	HSD7704V	HSD7704AV
System	Main Processor	High performance embedded microprocessor HI3515
	Operating System	Embedded LINUX
	System Resources	Pentaplex, function: live, recording, playback, backup & remote access
	User Interface	GUI, on-screen menu tips
	Display	1/4
Video	Video Standards	PAL 625 line,50 f/s; NTSC 525 line,60 f/s
	Video Compression	H.264 main profile
	Video Recording	D1:PAL 1f/s-25f/s NTSC 1f/s-30f/s
	Encode capacity	100/120fps(D1)
	Motion Detection	Zones:396(22*18)detection zones,Sensitivity:1-6(6 is highest) Trigger recording, PTZ movement, tour, alarm, email, snapshot & FTP
Audio	Audio Compression	G711A
	Two Way Audio	Support
Record &	Recording Mode	Manual/Alarm/Video Detection/Continuous
Playback	Playback	Multi CHs playback simultaneously, pause, stop, rewind, fast play, slow play, next file, previous file, repeat, shuffle, backup selection
	Search Mode	Time/Date, Alarm, Motion Detection & exact search(accurate to second)
Storage &	Space Occupation	Audio 28.8MB/H ;Video 25~450 MB/H
Backup	Record Storage	Local Hard disk and Network
	Backup Mode	Network download/Flash stick/movable HDD/SATA HDD/DVD-RW
Interface	Video Input	4 CH
	Video Output	1 BNC,1 VGA
	Audio Input	1 CH	4 CH
	Audio Output	1 CH
	Alarm Input	4 CH
	Relay Output	1 CH
	Net Interface	1 RJ45 100/1000Mbps Ethernet
	PTZ Control	1 RS485
	USB Interface	2 USB2.0
	Hard Disk	1 SATA ports(Max 2048G)
Environmental	Power Supply	12V/2A
	Power Consumption	<10W(not including harddisk)
	Working Temperature	0°C~+55°C
	Working Humidity	10%~90%
	Atmosphere Pressure	86kpa-106kpa
	Dimension	L233W300H45 MM
	Weight	1.2KG

Welcome to Shenzhen Huishi Electronics Co., Ltd.

Registered company in Hong Kong in 2009 and established factory in Shenzhen in 2011, HS has been concentrated on designing, developing, manufacturing and exporting versatile security products, including Board Cameras, Analog CCTV Cameras, CCTV System, DVR Kit, Speed Dome Cameras, Network IP cameras, DVR, NVR and Camera Accessories.

We emphasize cost effective qualified security items. Our faith is to make every penny you pay worth of it.

Based on company tenet "client first, Sincerity centered ", HS has been growing fast in past years.

-=-=-=-Quality and Warranty -=-=-=-

Everything we shipped is quality inspected by us in-house from material to assembling finish products.

24 Hours Aging Time for board camera and finished camera both

3 times QC before shipping

2 Years Warranty and free maintain for whole life

-=-=-=-Fast Delivery: -=-=-=-

Board Camera:

Usually we have enough stock to ship within 1-2 working days for order less than 1000PCS

7-10 working days if we do not have stock or order over 5000PCS

Finish cameras:

Sample order: 2-4 working days for common models

Formal order: 5-15 working days depends on order quantity

-=-=-=-Service -=-=-=-

OEM&ODM

We have a team to provide you OEM and ODM-Services.

Our service team are working closely with our engineers to bring you the hottest and best products. Many of our customers are already selling these products worldwide with their product quality, own logo and packaging.

HS has an energetic young group and good training team to listen to your request and serve you.

We are ready for any question or Enquiry from you now. Welcome!
