Product Specifications
| Prod Model: |
ZK-6060 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Area: |
600*600*100mm |
| Material: |
Whole Cast Aluminum |
| Spindle Power: |
1.5kw Water Cooling |
| Spindle Speed: |
0-24000rpm |
| Water Cooling System: |
Stainless Steel Water Slot Cooling |
| Control System: |
Ncstudio |
| Tool Sensor: |
Auto for Z-Axis |
| Design Software: |
Protel 99 & Coppercam |
| Driving Mode: |
Stepper Motor |
| Engraving Code: |
G Code |
Product Description

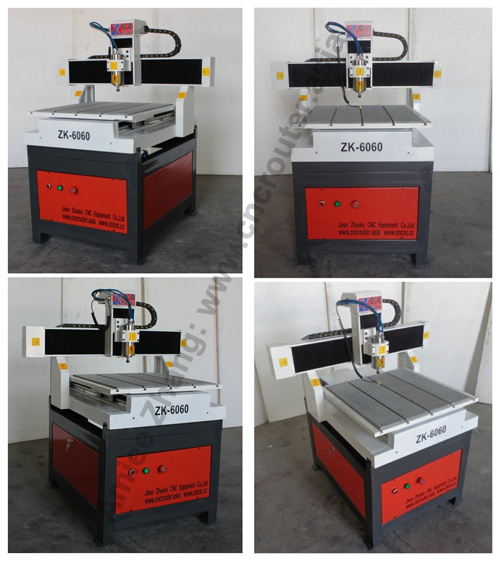

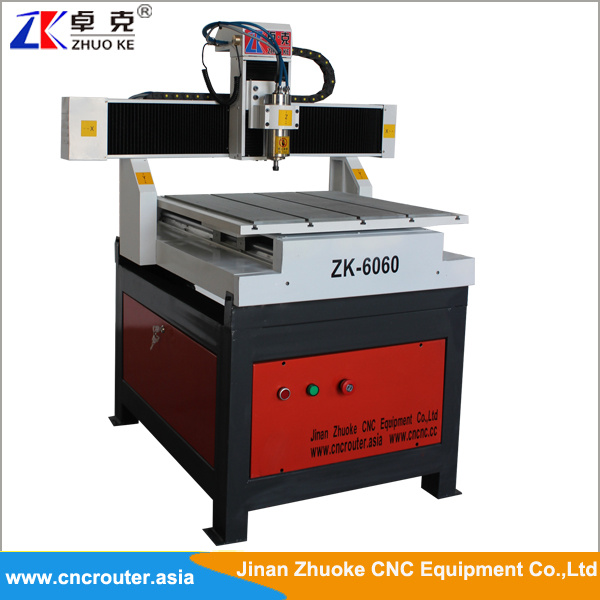

600*600mm Cheap PCB Prototype CNC Router Protel99&CopperCAM Software ZK-6060
Applicable Industries
To complete the production of single and double panel, to help students master the system board processes(cutting boards,carving,drilling,overhole plating). Provide a reliable platform for the training of the new technical
personnel according to factory.
Meet students' electronic design, EDA practice, electronic design contest, course design, graduation design, innovative
practices, such as integrated design, innovative experimental requirements.
Provide the necessary conditions for students independent learning, cooperative learning, research study. Strengthen
students' practical and creative ability. To culture from students to train engineers via electronic products from the principles of
design,process design, prototype production of the whole process,while learning and master the mechanical process plate process.

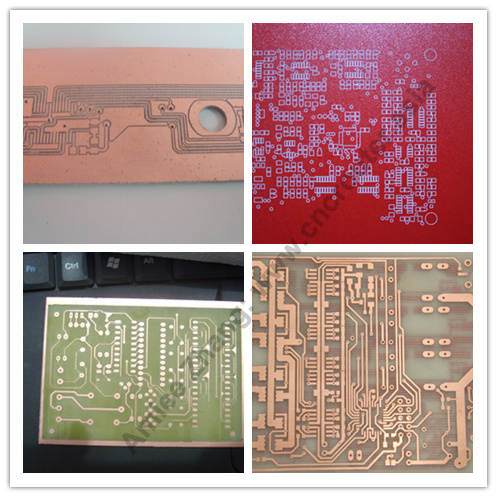

PCB single panel making process
Cut the circuit board into the desired size, or the size of the board has been cut well-- designed in accordance with the engraving machine circuit diagram punch--hole of the device will be used to lay the hole plated circuit board on the wall of the hole copper--plated finish vias on the circuit board for carving, create a route--complete good soldered directly to the circuit board components.

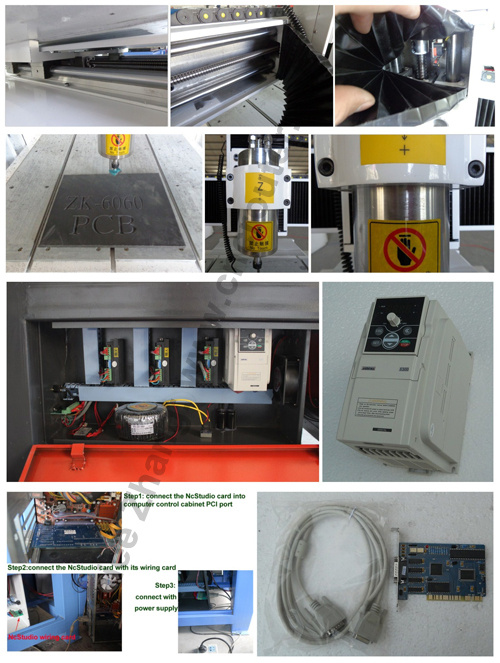

Machine Characters
1. Body small, tight, machine body and gantry whole cast iron or aluminum, stable, no deformation, little shock,
moving stability.
2. Imported high quality ball screw, precision segmentation, to achieve the high precision engraving.
3. Low noise 1.5kw/2.2kw water cooling spindle, high rotated speed (24000rpm), can realize only diameter 1mm tools engraving on the hardness materials.
4. Auto tool calibration help you to set the tools, not break the tool nose, ensuring the workpiece high precision processing.
5. NcStudio control system, connect with the computer, showing the processing path, , more conveient and easy to operate.
6. Continuing working after the break point/power failure, lower the rejection rate.
7. Good software compatibility, can compatible with the Artcam/Type3/Ucancam/JDPaint such CAD/CAM software, 2D/3D processing, more convenient to using.
Other models you may be interested in
ZK-3030 300*300mm ZK-4040 400*400mm ZK-6060 600*600mm
ZK-6090 600*900mm ZK-1212 1200*1200mm ZK-1215 1200*1500mm
ZK-1218 1200*1800mm ZK-1224 1200*2400mm ZK-1325 1300*2500mm ZK-1530 1500*3000mm
ZK-2030 2000*3000mm ....
Packaging & Shipping
Packing: 2.2CBM, 225KG, one plywood case
Shipping: EXW/FOB/CIF/DDP/DDU... or according to your need
| Certificate | CE |
| Effective working area | 60 0(X)mm*6 00(Y)mm*10 0(Z)mm |
| Max.thickness of the materials | ≤10 0 mm(the distance between Z-axis and the bottom of the working station) |
| Moving method | Platform moving |
| Material | Whole cast aluminum |
| Working table | Aircraft aluminium T slot with PVC layer |
| Guide rail | Linear round guide rail |
| Transmission | Ball screw for X Y Z-axis
(X Y Z-axis: #1605, TBI) |
| Driving mode | Stepper motor
( XYZ-axis: 57BYG-311) |
| Spindle motor | 1.5KW w ater cooling |
| Spindle collet type | ER 11 |
| Suitable cutter tools diameter | 3.175mm, 4mm, 6mm |
| Voltage | AC 220V 50/60Hz, single phase |
| Spindle speed | 0-24000rpm/min |
| Empty travelling speed | 0-8000mm/min |
| Engraving speed | 0-6000mm/min |
| Machine accuracy | 0.03mm |
| Resetting accuracy | 0.05mm |
| Diagonal error | 1mm |
| Resolution ratio | 0.005mm |
| Control system | PCI NcStudio |
| Designing software | Protel 99, Copper CAM |
| Minimum line diameter | 6-8mil |
| Minimum line spacing | 8mil |
| Minimum step distance | 0.003125mm |
| Motor wire | High soft specially for Numerical Control( 4*0.75) |
| Spindle wire | Shielding high soft (3*1.5) |
| Carving Instructions | G code *Uoo *mmg *plt HPGL |
| Running environment temperature | 0-45 °C |
| Relative humidity | 30%-75% |
| Tools | 24 pieces, 10 pieces drilling tools, 10 pieces engraving tools,
3 pieces corn milling tools, 1 piece bottom clearance tools |
| Accessories | Water pump(1), tools (24), power line, USB line, fixtures(4), user manual,
software CDs, Ncstudio card(1), spanners(2), brush,collets(3), double faced adhesive tapes (2), water tank( |
