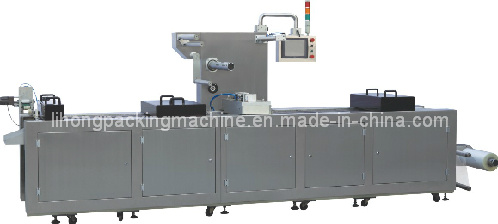

1.Applications:Automatic food vacuum MAP thermoforming packing machine applies to vacuum, modified atmosphere and tight packing for packing food, hardware, and medical products, such as turkey, dates, sea food, fish, chicken, becon, beef, tofu, walnut kernel, frozen meat, duck pieces, prawn, vegetable, smoked fish, sausage, etc.
2.Main performance and features:
- High-strength alloy aluminum structure.
- Original German Busch imported vacuum pump, reliable quality.
- PLC programmable controller and operates accurately and steadily.
- Mitsubishi servo/converter.
- Date printer for different product specification.
- Photoelectric automatic tracking device.
- Stainless steel brand quality film clip chain, stainless steel foot, cast aluminum studio, organic glass, transparent, intuitive, and safe, with open cover to protect emergency stop function.
- Waste recovery using Taiwan origin fan, with stable performance, reliable operation, long life, low noise characteristics.
- Board style structure, easy to replace and operate.
- The mold can be designed as custom's requirement.
Samples :
CE Certification
Specification:
|
Model |
DLZ-520 |
DLZ-420 |
DLZ-320 |
|
Width of Upper Film |
492mm |
392mm |
292mm |
|
Width of Lower Film |
522mm |
422mm |
322mm |
|
Vacuum degree |
≤200Pa |
≤200Pa |
≤200Pa |
|
Compressed Air |
≥0.6MPa |
≥0.6MPa |
≥0.6MPa |
|
Cooling Water |
≥0.15MPa |
≥0.15MPa |
≥0.15MPa |
|
Power Source |
380V/50Hz |
380V/50Hz |
380V/50Hz |
|
Weight of Whole Machine |
2100KG |
1800KG |
1300KG |
|
Overall Dimensions |
6100×1400×1900mm |
5300×950×1860mm |
5100×900×1800mm |
Incorporated in the year 2007, Ruian Lihong Machinery Co., Ltd. is a professional manufacturer and supplier of semi / fully automatic packaging machines and support system solutions. The range includes vacuum packaging machine, horizontal flow wrapping machine, vertical packing machine, cup counting machine, candy packing machine, plasticine machine, shrink packaging machines, etc. Our company has achieved notable growth and has become a progressive supplier of leading packaging machines in China. Steered by a futuristic vision, we invest judiciously in building resources and execute day-to-day business operations with higher level of professionalism and efficiency.
Lihong is a market-savvy company, with a customer-oriented quality deliverance approach that guides us to provide customized packaging machinery for specific packaging processes. Our prime focus is to create maximum utility and offer value for money to our customers. Hence, we make every effort to understand client's business and accordingly procure machines that meet their specific requirement to the fullest. Our prime motive is to play a crucial role in assisting clients to expand their business profits.
Through our in-depth research and development, Lihong not only successfully provides the highest quality machinery and service in compliance with ISO 9001 and CE standards, but also attains the prestigious prizes of China. A good quality today, a better future tomorrow! Our vision is to create a reliable and friendly relationship with customers all around the world. And we also hope to be a part of your success as well.
