Chicken Wire Netting (DYWM961073)

Name: Chicken Wire Netting (DYWM961073)
Brand: china-manufacturer-directory.com
SKU: 681777142
Availability: InStock
Rating: 4.4 (93 reviews)

Price:	US $ 6.35/Roll
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Roll
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	DYWM961073
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Surface Treatment:	Galvanized
Material:	Galvanized Iron Wire
Application:	Construction Wire Mesh
Weave Method:	Twist
Weave Technique:	Plain Weave

Product Description

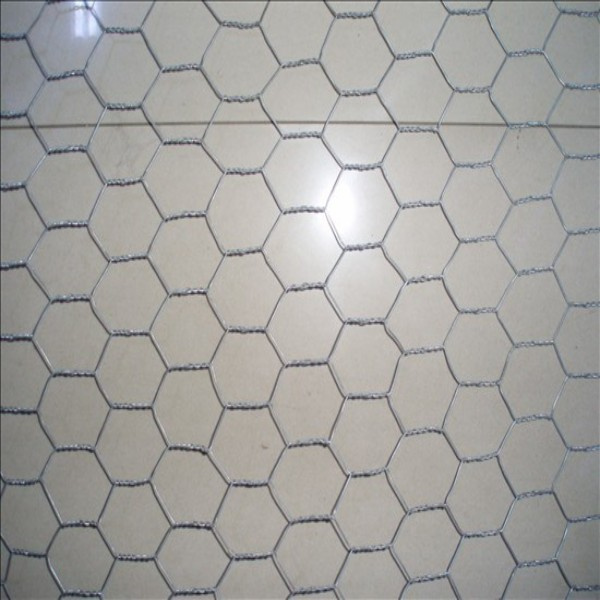

Chicken Wire Netting

Material: High quality low carbon steel wire, stainless steel wire
Weaving: Straight twist, reverse twist, double-direction twist, Weaving before galvanized, weaving after galvanized. Electro galvanized, hot dipped, plastic-coated, stainless steel, PVC coated, etc.

Application: It used wide in building, oil, chemical industry, breed, plant protection, food processings reinforce guard and heat preservation, for example: Make net cast, stone cage, insulated net wall, boiler cover, poultry fence etc.

Package: Normally each roll packed in water proof paper, then in termo foil (Shrinked Plastic)

Galvanized hexagonal wire netting
mesh			Min. Gal.v. G/SQ.M	Width	Wire Gauge (Diameter) BWG
Inch	mm	Tolerance(mm)	Min. Gal.v. G/SQ.M	Width	Wire Gauge (Diameter) BWG
3/8"	10mm	±1.0	0.7mm - 145	2' - 1M	27, 26, 25, 24, 23
1/2"	13mm	±1.5	0.7mm - 95	2' - 2M	25, 24, 23, 22, 21
5/8"	16mm	±2.0	0.7mm - 70	2' - 2M	27, 26, 25, 24, 23, 22
3/4"	20mm	±3.0	0.7mm - 55	2' - 2M	25, 24, 23, 22, 21, 20, 19
1"	25mm	±3.0	0.9mm - 55	1' - 2M	25, 24, 23, 22, 21, 20, 19, 18
1-1/4"	31mm	±4.0	0.9mm - 40	1' - 2M	23, 22, 21, 20, 19, 18
1-1/2"	40mm	±5.0	1.0mm - 45	1' - 2M	23, 22, 21, 20, 19, 18
2"	50mm	±6.0	1.2mm - 40	1' - 2M	23, 22, 21, 20, 19, 18
2-1/2"	65mm	±7.0	1.0mm - 30	1' - 2M	21, 20, 19, 18
3"	75mm	±8.0	1.4mm - 30	2' - 2M	20, 19, 18, 17
4"	100mm	±8.0	1.6mm - 30	2' - 2M	19, 18, 17, 16

Note:
1.) The above tolerance comply with standard EN10223-2:1997;
2.) Minimum Galvanization is only for typical wire diameter as marked separately in the column for your reference; Also it is only for hot dipped Galvanized Netting.

PVC Coated Hexagonal Wire Netting
Mesh		Wire Gauge (MM)	Width
Inch	MM	-	-
1/2"	13mm	0.6mm - 1.0mm	2' - 2M
3/4"	19mm	0.6mm - 1.0mm	2' - 2M
1"	25mm	0.7mm - 1.3mm	1' - 2M
1-1/4"	30mm	0.85mm - 1.3mm	1' - 2M
1-1/2"	40mm	0.85mm - 1.4mm	1' - 2M
2"	50mm	1.0mm - 1.4mm	1' - 2M

Anping DongYa Wire Mesh Production Co., Ltd was founded in 1996, located in "Hometown of Wire Mesh in China". Now we are a leading manufacturer of wire and mesh. Due to high quality products, reasonable price and considerate services, our company enjoys a high reputation both at home and abroad. At present, we have 156 employees, 3 engineers, 11 inspectors. Equipped with more than 280sets advanced machines of production and inspection. our annual output is 9.60 million square meters of mesh and 80 million tons of various metal wire, which of those more than 90% are used to export. We have been producing the greatest width of wire mesh is 6 meters.

Our main products cover wire: galvanized wire, iron wire, stainless steel wire, tie wire, loop tie wire, and mesh: stainless steel wire mesh, welded wire mesh, iron wire mesh, polyester mesh, polyester printing screen. We have adopted advanced international quality control system and our products are also manufactured in accordance with international standard strictly.

Good quality, competitive price, efficient service and about thirty years experiences, these advantages have enable us to be one of the most reliable suppliers of wire mesh in Anping County. And we have established regular business relationship with many customers from USA, Australia, Germany, the UK, Japan, Singapore, Korea and some other countries and regions of the world.

We always think "to be creditable", "to be dedicated", "to learn" and "to innovate" as the root of our enterprise development. To ensure our long-term success, we aim to build value for our customers, employees and the society.

We Sincerely invite you to visit our company and we are looking forward to cooperating with you.
