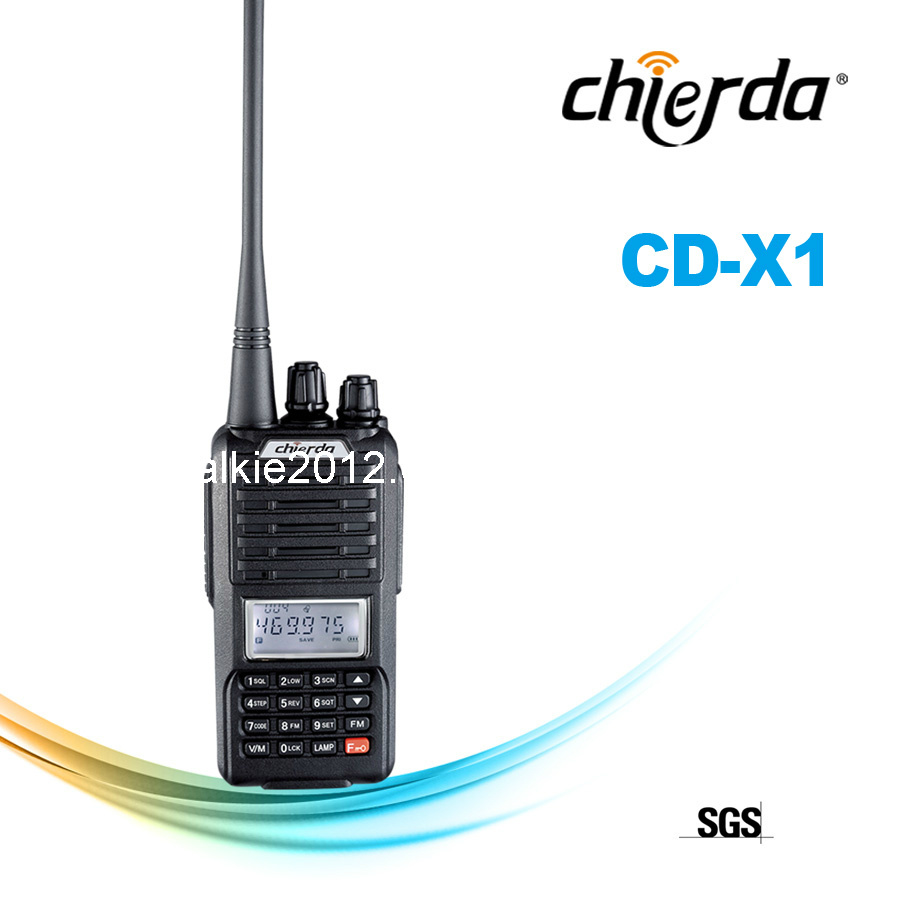

Chierda Professional Walkie Talkie with LCD (CD-X1)

Name: Chierda Professional Walkie Talkie with LCD (CD-X1)
Brand: China-Manufacturer-Directory.com
SKU: 688755002
Availability: InStock
Rating: 4.4 (78 reviews)

Supplier:	Quanzhou Chierda Electronic Telecom Co., Ltd.
Price:	Negotiable/Piece
Min Order:	2/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	CD-X1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	CD-X1
Dimension:	1095430mm
Battery:	1500mAh High Capacity Lithium Battery
OEM:	Accept
LCD:	Yes
Color:	Black
Range:	5-8km
Certification:	SGS
Style:	Handheld
Talk Range:	8km Max
Usage:	Home, Commercial, Army
Battery Type:	Lithium Battery
Type:	Handheld
Display:	With Display
Working Frequency Range:	VHF Segment

Product Description

CHIERDA professional walkie talkie with LCD (CD-X1)

Normal Function and Features:

CTCSS /DCS
VOX Function
Monitor
Time-Out Timer
Keypad Lock
FM Radio
Clona Data

Walkie Talkie Wrist Watch CD-X1

Standard Accessory:

Antenna
Rechargeable lithium battery
Desktop charger
Adapter( USA charger, EU charger, etc
Belt clip
English manua

About us:

We will try our best to produce excllent quality products and services, we hope we help you and are glad to become your faithful friends.

Shippment:

For fast delivery, usually bulk goods are shipped by DHL, UPS, FedEx, EMS etc, large quantities depend on Customer request.

Note:
1)Please contact us at first time for bulk order, larger discount waits for you
2) Please be responsible for custom tax if your local custom charge some custom tax.
3) OEM service is offered, we can design packing box and logo mark as your requirement.
4) Sample time: If with our logo, within 5 days.
5) MOQ: 2 for sample; 100 for mass production; 500 for OEM
6) Payment term: T/T, Western Union and PayPal
7) Warranty Information: 12 months for body radio; 6 months for accessories.

Specification:
Frequency Range	136~174/400.000~470.000MHz
Rated Voltage	DC7.4V(Li-ion battery)
Memory Channel	128
Channel Spacing	12.5KHz/25KHz
Frequency Sensitivity	± 2.5PPM
Antenna Impedance	50 Ω
Dimension	1095430mm(except antenna)

Transmitter:
Output Power	5W/1w
Current	≤ 1.3A
Modulation Distortion	≤ 5%
Maximum Frequency Deviation	< 5K/< 2.5KHz
CTCSS Frequency Deviation	0.75KHz ± 50Hz
Remanent Radiation	≤ 7uW
Modulation Mode	F3E
Remanent Modulation	≤ -35DB

Receiver:
RF Sensitivity	≤ 0.20uv
Silent Sensitivity	≥ 60/70db
Audio Frequency Power	400mw
Audio Distoftion	< 5%
Modulation Receiver Bandwidth	≥ 85DB
Spurious Rejection	≥ 65DB
Selectivity	≥ 65DB≥ 60DB
Intermodulation	≥ 60DB
