Shenzhen Wopson Electronics Co., Ltd. >> Chimney Camera for Chimney Survey with DVR Record

Chimney Camera for Chimney Survey with DVR Record

Name: Chimney Camera for Chimney Survey with DVR Record
Brand: china-manufacturer-directory.com
SKU: 764176995
Availability: InStock
Rating: 4.4 (130 reviews)

Supplier:	Shenzhen Wopson Electronics Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	EXW

Product Specifications

Prod Model:	WPS-140-R
Markets:	North America,Eastern Europe,Western Europe
PT Camera:	Pan 360degree & Tilt 180 Degree Camera
Camera Size:	70mm (Diameter) * 140mm (Length)
Sensor Size:	1/4inch
Camera Viewing Angle:	120degree
Light Rescource:	18PCS White LEDs
Cable Length:	20m(Standard), as Your Requirement
Soft Cable Diameter:	6.5mm
Camera Used For:	Chimney Inspection

Product Description

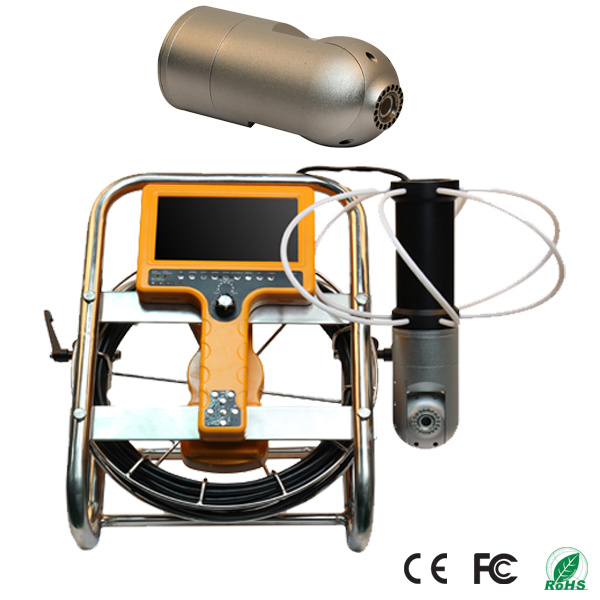

Pan & Tilt Chimney Inspection Camera WPS-140-R
It supports video recording, sound recording, pan 360 degree tilt 180 degree rotation.
It is designed for the CCTV chimney inspection.

Camera
1.Camera size	Φ70mm*140mm
Rotatable:	horizontal 360°, vertical 180°
2.Camera Housing material	aluminum alloy
3.Camera lens material	sapphire glass
4.Sensor size	1/4 inch
5.Pixels	PAL:720576 NTSC:720480
6.View range	120 °
7.Illumination	18pcs bright light LED With adjustable brightness
8.Camera work current	100MA
9.Camera power supply	DC 12V
10.Operating Temperature	-10°C to +50°C
Monitor
1.Monitor size	7inchTFT-LCD color monitor
2. Pixels	1440*234
3. Monitor power supply	DC 12V
4.OSD language	English
5.Up, down left, right adjustable
6. Model	16:9 & 4:3 model
7.Shock absorber hinges also acts as sun visor
8.Waterproof connector
9.Operating Temperature	-10°C to +50°C
DVR
1.DVR power supply	12V
2.DVR work current	200MA
3.Storage medium	SD card (32G)
4.Digital clock and digital calendar
5.Battery level display
6. Pixels	720*567(D1)
9.Picture sanp and movie record
10.Movie format	AVI
11.Microphone Audio record
12.Stereo earphone output
Cable Wheel
1.Cable size	430X330(W)X175(H)mm
2.Wire material	Soft cable
3.Fiberglass length	20M(standard), as your requirement
4.Fiberglass diameter	Φ6.5mm
5.Fiberglass color:	Black
Battery
1.Battery	12V 4000MAH rechargeable li -ion battery(18650
2.Used time	7 hours
Charger
1.Input	AC100-240V~50/60Hz
2.Out put	DC 12V/1000MA
3.DC plug diameter	2.1M
Skids Size
SKIDS1:φ300MM
As your requirement
ABS Carry Case
Case Size	520435200MM
Case Material	Engineering Plastic
Empty Case weight	5.9KG
Case Color	Orange/Green/Black

Shenzhen Wopson Electronics Co., Ltd. Deals in all kinds of electronics and specializes in security and monitoring systems. Wopson has a production base in Shenzhen.

Our main products include CCTVs, special monitor systems, pipe inspection systems and DVRs. All of our products conform to CE, GS, BS, UL, FCC, FDA and RoHS certificates, and are exported to Europe, North America, Asia-Pacific Region, the Middle East, South America, etc. By providing high quality products and services for all customers, Wopson has already established good relationships with many leading companies in mentioned regions and received approval and praise from them.

We will try our best to establish good relationships with new customers. All kinds of OEM / ODM orders are warmly welcomed.
