Product Specifications
| Prod Model: |
FV30B+C/3-150(S) |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connections: |
Tt |
| Color: |
Orange Module + Gray Base |
| Protection Mode: |
L1, L2, L3-PE, N-PE |
| Speed: |
<25ns |
| Function: |
Surge Protection for Power System in AC Side |
| No. Of Poles: |
3 Poles |
| OEM&ODM: |
Welcome |
| Uc: |
150V AC |
Product Description

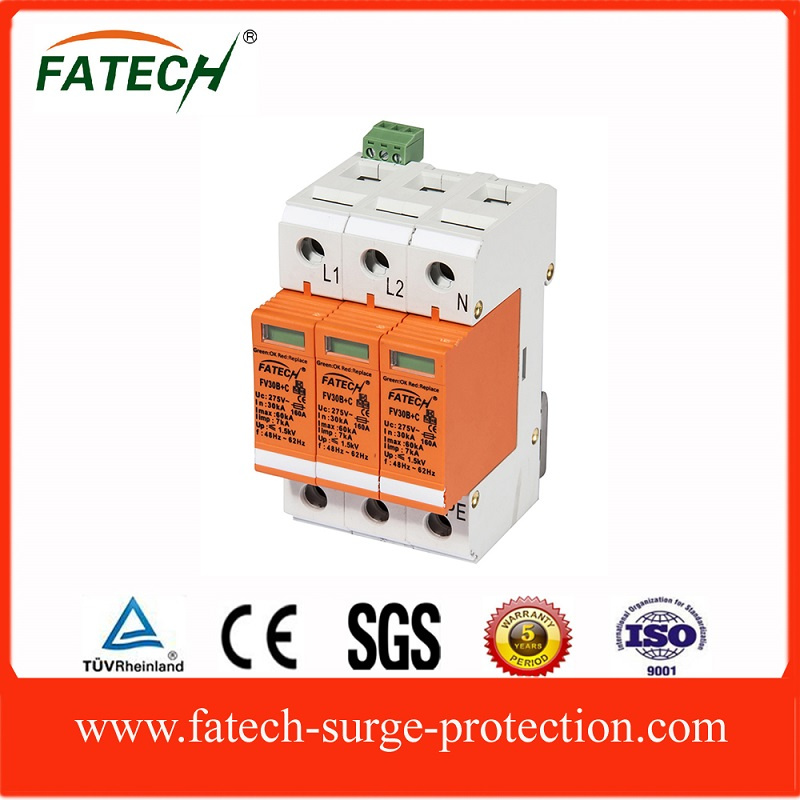

SPD FV30B+C/3-150 (S) is for low-voltage power supply 150V, Imax 60kA, 3poles.
1. Surge protector device for low-voltage power system Characteristic FV30B+C/3-150 (S)
-Clss B+C/I+II Surge protector onsisting of 3 base part and MOV plug-in protection modules.
-High energy MOV inside.
-Low residual voltage and quick response.
-Reliable control thanks to Thermo Dynamic Control disconnector.
-With remote signaling contact for control device.
-Fault indication via red mark in the inspection window.
-Protection mode: L1, L2, L3-PE, N-PE.
2. FV30B+C/3-150 (S) surge protector device are suitable for lightning and surge protection in AC 50/60Hz, 220/380V.
3. APPLICATION of surge protector device FV30B+C/3-150 (S):
AC power line of house, bank, telecom tower and so on.
4. Surge protector device for low-voltage power system Certificate:
CE-LVD
We also can supply more of product for low--voltage power system lightning protective device, surge protective device with Imax=80kA, 100kA. And type B SPD with spark gap.
If you are interested in, please feel free contact to me!
| Model No.: FV30B+C/3-150 (S) | | | |
| Max. continuous AC voltage | Uc | V | 150 |
| Requirement class to DIN EN 61643-1: 2005 | | | Class B+C |
| Nominal Discharge current(8/20μ s) | In | kA | 30 |
| Max. discharge current (8/20μ s) | Imax | kA | 60 |
| Impuse discharge current (10/350μs) | Iimp | kA | 7 |
| Voltage protection level (at In) | Up | kV | <=0.9 |
| Response time | tA | ns | 25 |
| Recommended back-up fuse | | A | 160 |
| Operation temperature range | | | -40 ~ +85degree |
| Degree of protection | | | IP20 |
| Remote control contacts | | | optional |
